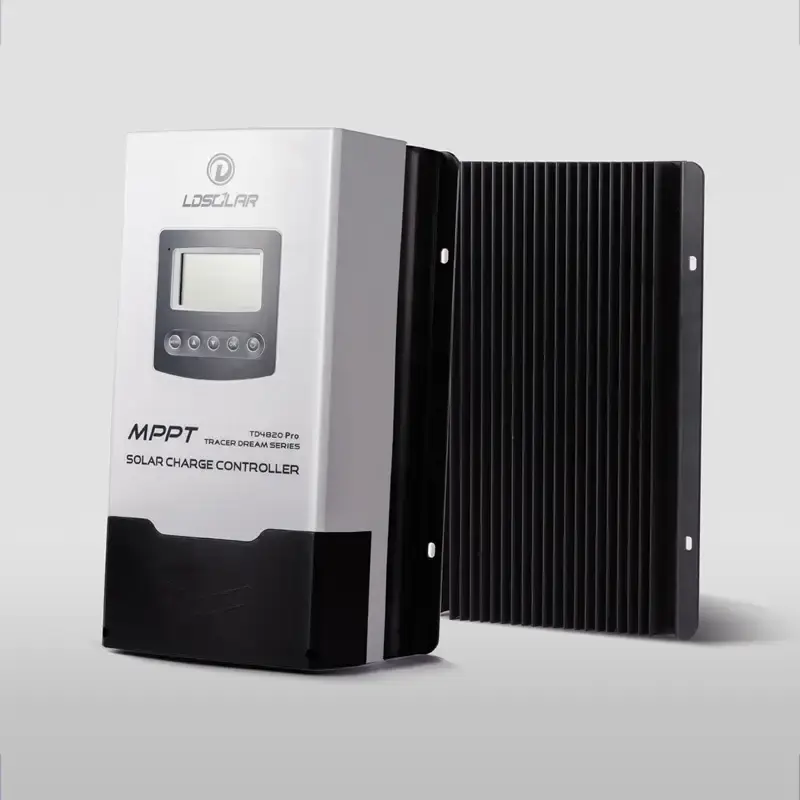

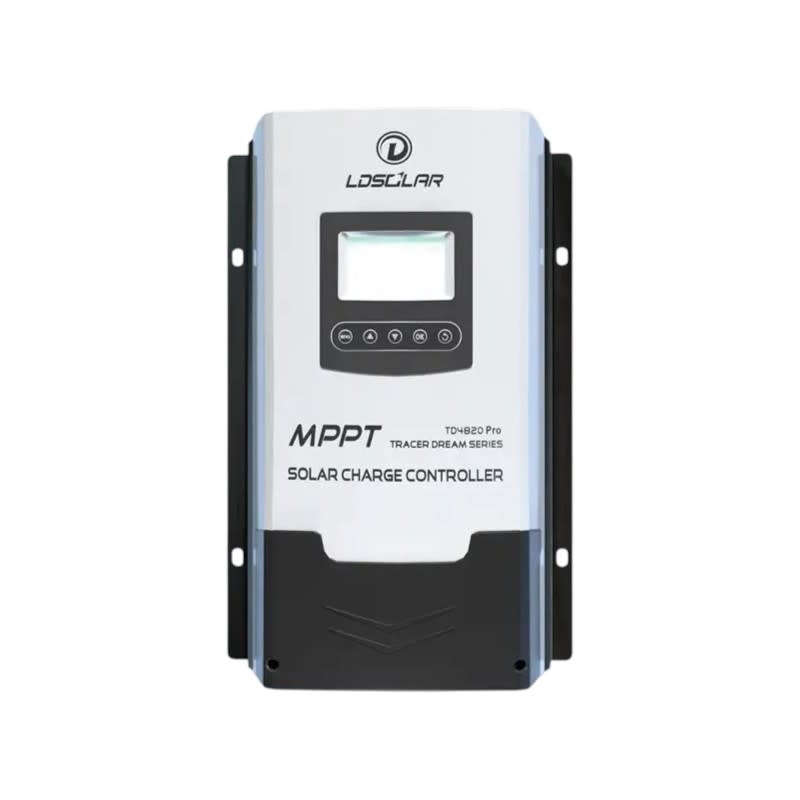

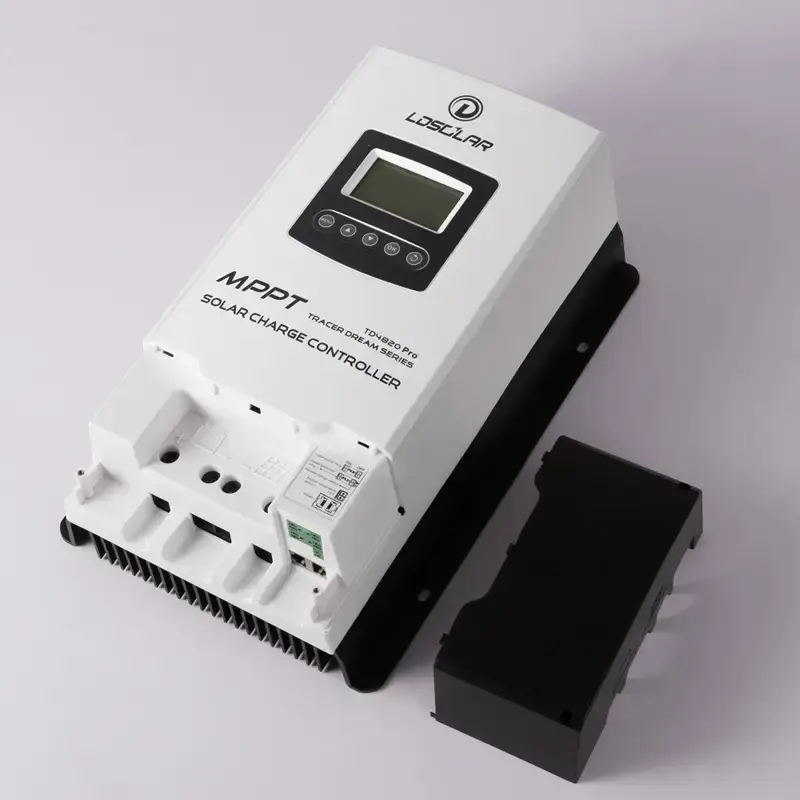

MPPT SOLAR CHARGER CONTROLLER (HAR10127)

A Power 80A MPPT Solar Charge Controller handles up to 3840W of solar panels for a 48V battery system and automatically detects 12V, 24V, 36V, or 48V setups.

Key Specifications

Max Current: 80 Amps

System Voltage: 12V, 24V, 36V, or 48V (Auto-detect)

Max Solar Input Power (48V): Up to 3840W - 4500W depending on the specific brand model.

Battery Types: Compatible with Sealed, AGM, Gel, Flooded, and Lithium/LiFePO4 batteries.

Efficiency: High tracking efficiency of 99% or greater with multi-stage charging (Bulk, Boost/Absorption, Float).

Protections

Overcharge and deep-discharge protection

PV array short-circuit and over-current protection

Reverse polarity protection for both PV and battery

Over-temperature protection
