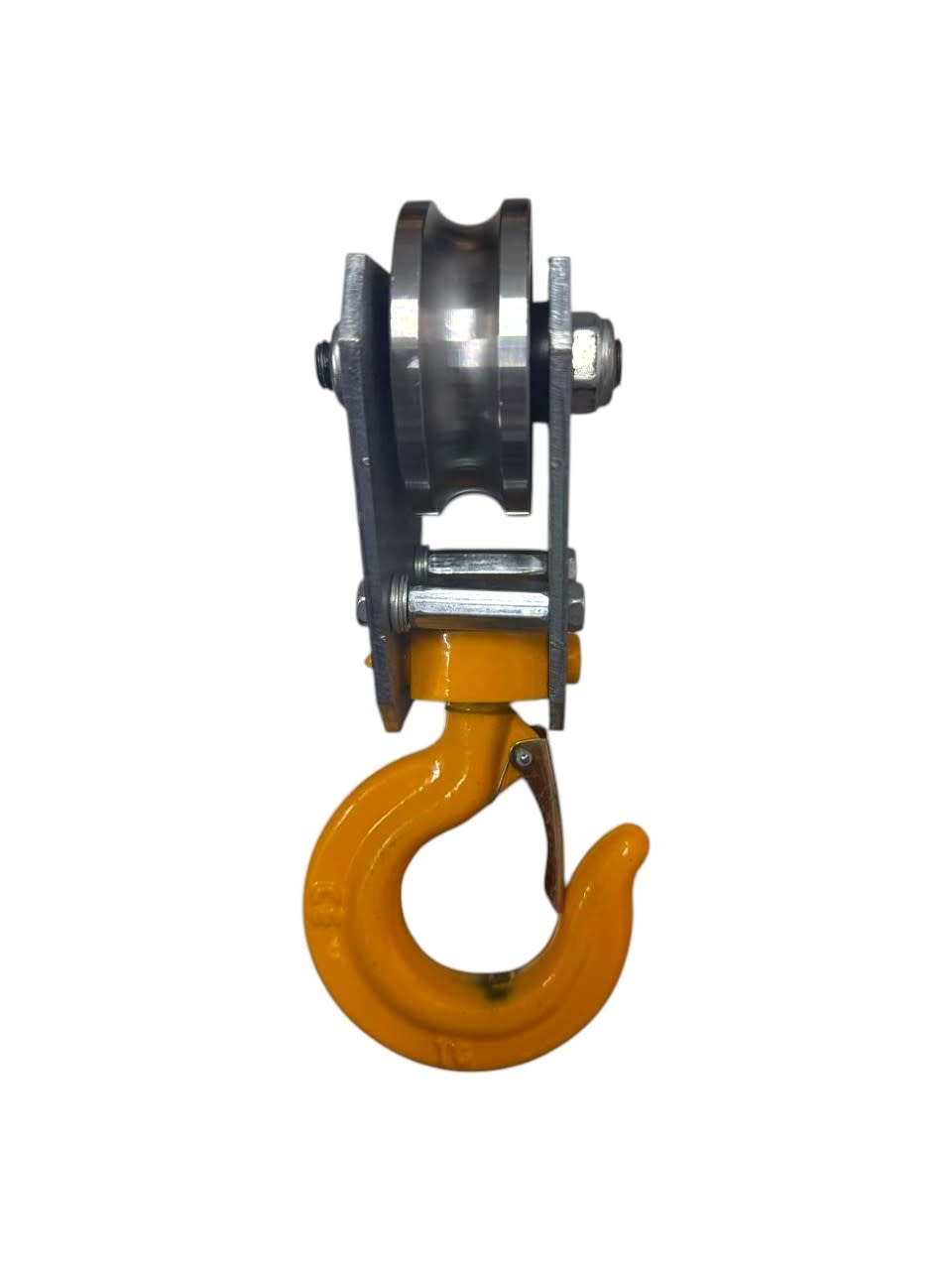

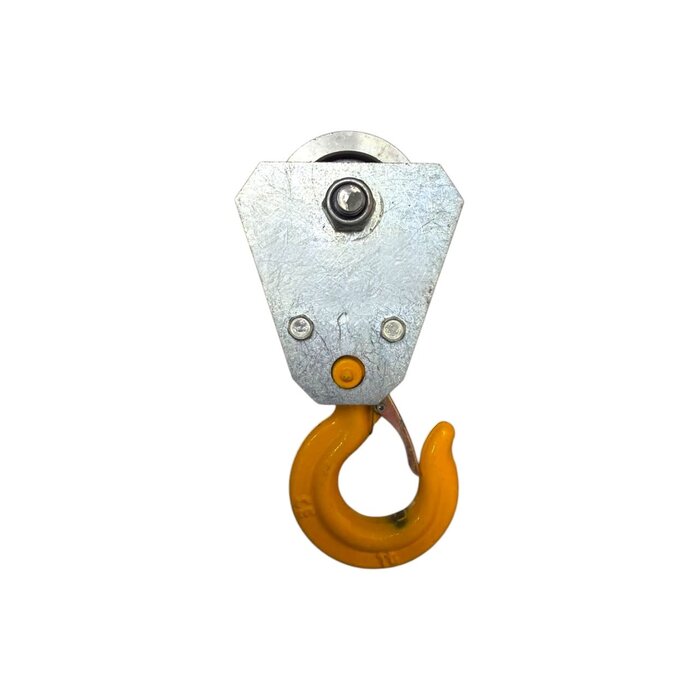

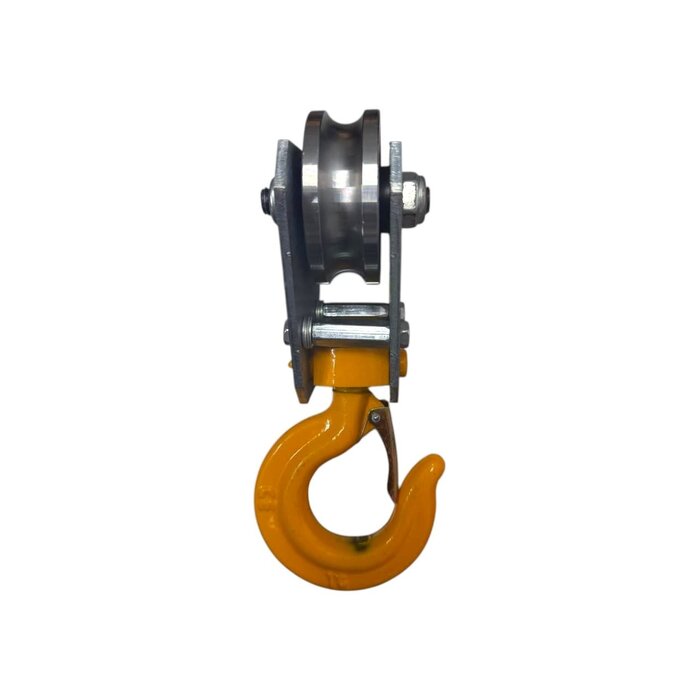

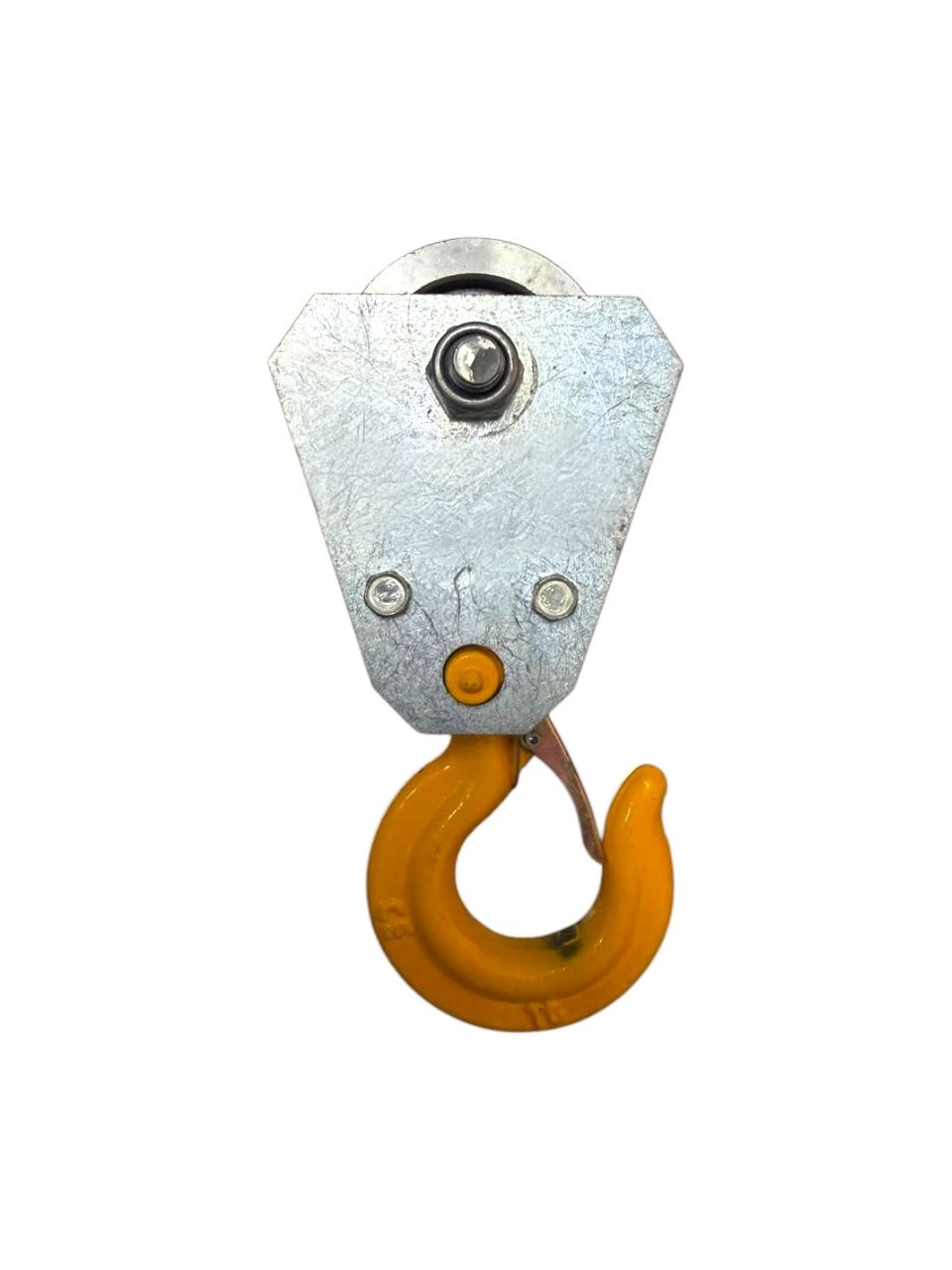

1 TON HOOK WITH PULLEY (HAR10135)

Product Overview

The 1-Ton Heavy-Duty Rigging Pulley Block with Swivel Hook is a rugged lifting component engineered for dual-line configurations, material hoists, and portable mini cranes. This block doubles the capacity of a standard winch line while significantly decreasing mechanical strain on your lifting system, ensuring smooth vertical transport or heavy-duty pulling operations.

Key Features

- High-Load Mechanical Advantage: Rated for safe working loads up to 1 Ton (1000 kg), making it highly effective for heavy vehicle recovery, construction lifting, and forestry setups.

- 360° Drop-Forged Swivel Hook: Equipped with a heavy-duty steel safety latch that swivels a full 360 degrees. This prevents wire ropes or chains from twisting and knotting during operation.

- Deep-Groove Machined Sheave: The steel wheel track is specifically sculpted to keep steel wire cables or synthetic winch lines cleanly centered up to a maximum diameter of 10 mm.

- Rugged Steel Side Plates: The thickened dual side plates protect the sheave assembly from direct impact damage on harsh job sites, avoiding structural warping under high physical stress.

Technical Specifications

- Lifting Capacity: 1 Ton / 1000 kg (2,200 lbs)
- Component Type: Snatch Block / Swivel Hook Pulley
- Sheave Material: Machined Carbon Steel / Heavy-Duty Alloy
- Maximum Cable Fit: Up to 10 mm wire rope
- Safety Mechanism: Integrated Spring-Loaded Latch Lock
