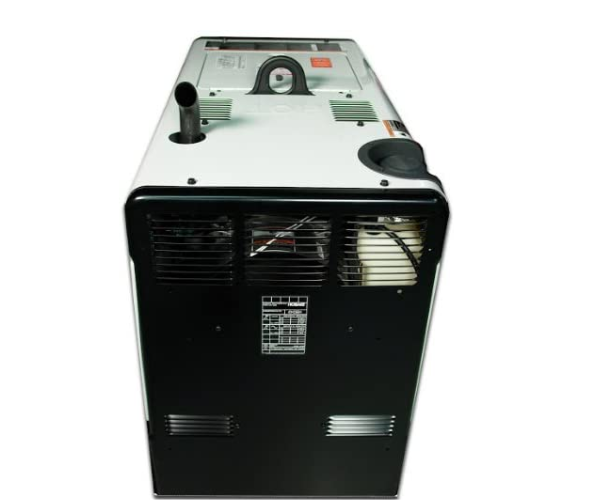

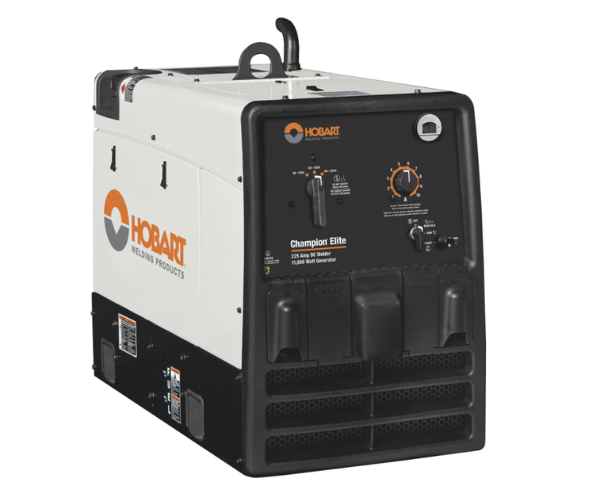

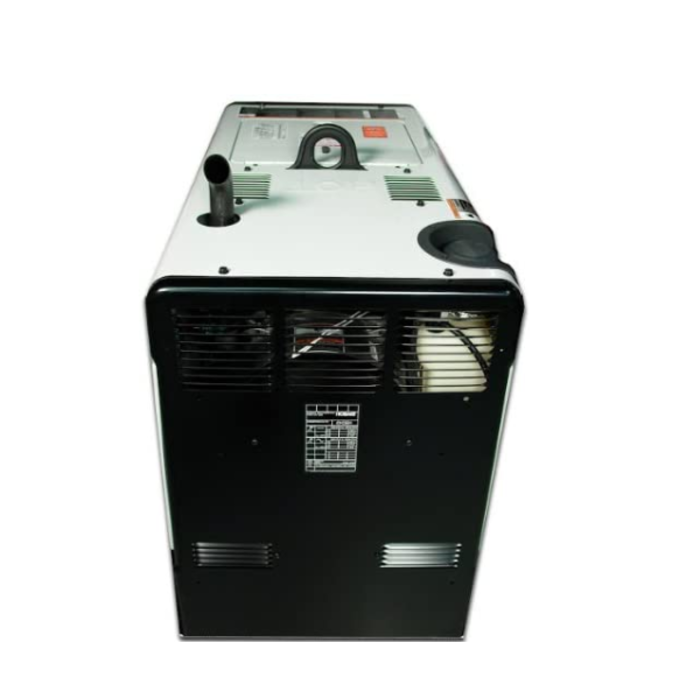

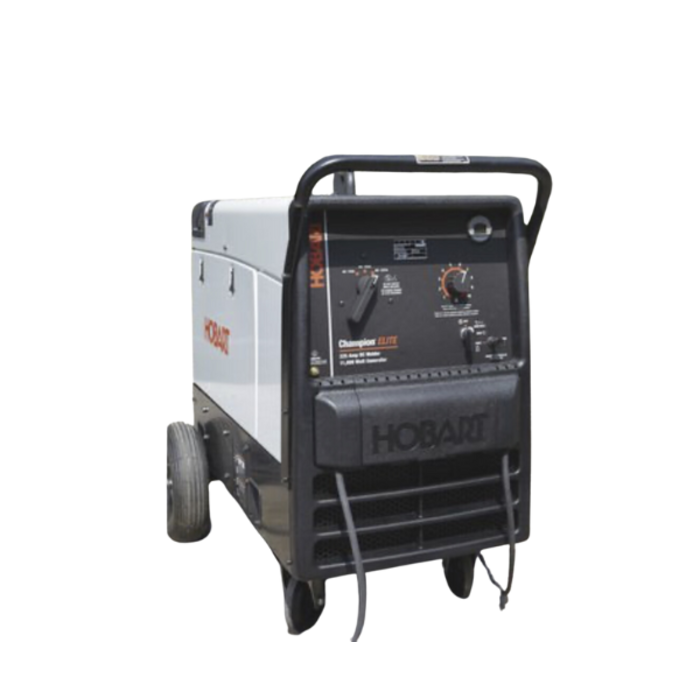

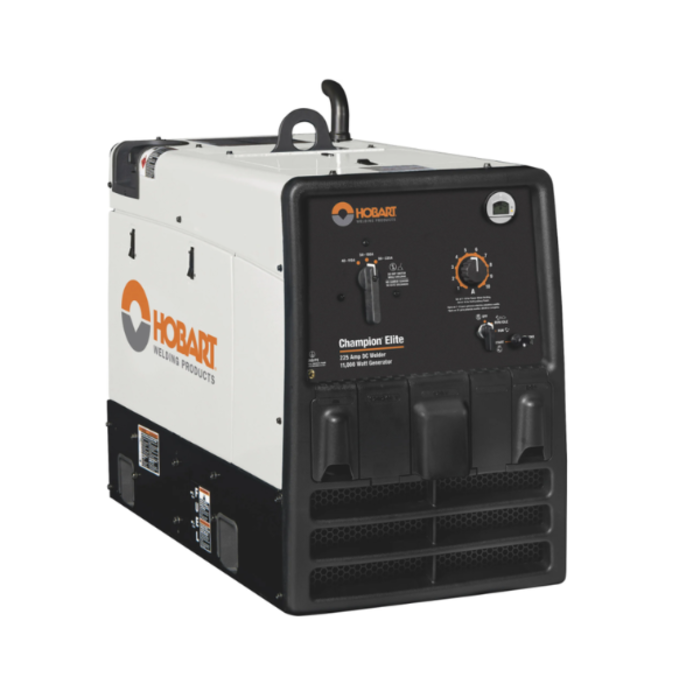

HOBARTIND4057 GENERATOR/ ARC WELDER HOBART CHAMPION ELITE 42542
Show all:
DIESEL WELDER,WELDER
After Sales Service
Warranty
All prices are VAT exclusive
Delivery Service (Georgetown)
Description
- Generator produces up to 11,000 Watts of AC power; 9,500 continuous watts power to run tools, worklights or backup power during an outage
- Portable, engine-driven solution with 23 HP Kohler twin cylinder, 4-cycle OHV engine
- Can simultaneously deliver 150 Amps weld output and 8,000 Watts of generator power
- Fuel-efficient model can run up to 14 hrs. on one 12-gal. tank of gas under a continuous load of 4,000 Watts
- Handles mild steel, stainless steel and cast iron with max. thickness of 1/2in. in a single pass
- 40-225 Amp DC output range
- 100% duty cycle @ 225 Amps (DC output)
- 41in.L x 20in.W x 28in.H unit is just under 4ft. long and weighs less than most competitive units
- Auto-idle for increased fuel savings and reduced noise
- Heavy-duty construction with fully enclosed engine design, large battery and rugged electrical connections and wiring
- Fully enclosed case design reduces noise and provides added weather protection
- Sight gauge makes it easy to check fuel levels
- Includes built-in digital hour meter to assist you in keeping current on scheduled maintenance
- No tools oil change and standard hour meter help maintain routine scheduled oil servicing
- Coarse and Fine amperage adjustments allow for easy fine-tuning of welder output
- Extra-large 12-gallon fuel capacity for increased runtimes
- Includes four 120V (20 Amp) GFCI protected outlets, one 240V (NEMA 6-50R) 50 Amp receptacle and one 120/240V (NEMA 14-50R) 50 Amp receptacle with pushbutton reset circuit breakers
- Required welding cables (Item#s 628510 or 628511) sold separately

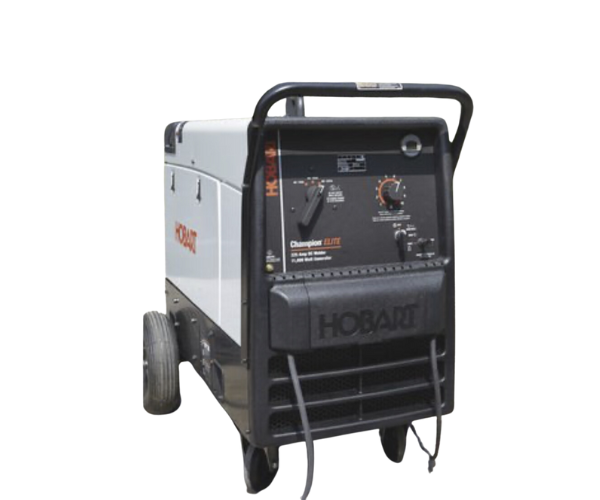

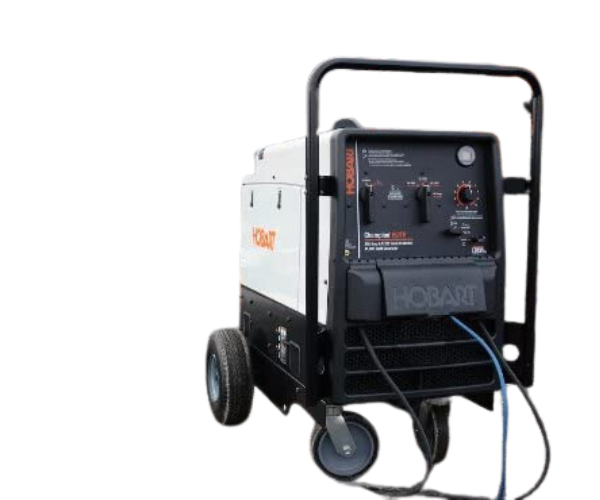

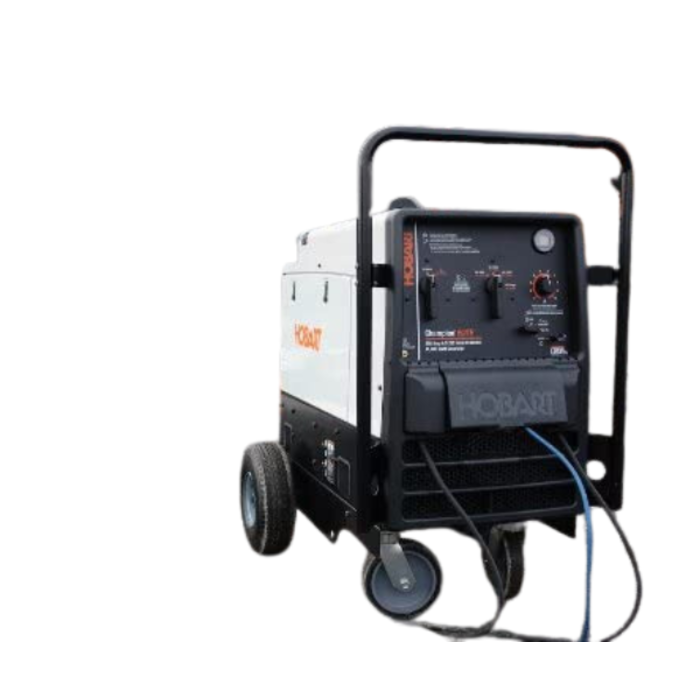

- Optional running gear wheel kit (Item# 42541) sold separately
| Attribute | Specification |
|---|---|
item# | 42542 |
Max. Amps | 225 |
Power Type | DC |
Multi-process | No |
Spool Gun Included | No |
Max. Weld Thickness | 0.5 in |
Duty Cycle | 100% At 225a |
Engine Type | 4 Cycle |
Fuel Type | Gasoline |
| Attribute | Specification |
|---|---|
Engine Displacement | 725 cc |
Electric Start | Yes |
Battery Included | Yes |
Hour Meter Included | Yes |
Receptacles Included | Yes |
GFCI Protection | Yes |
Lifting Hook | Yes |
Generator Output (Continuous Watts) | 9,500 |
Generator Output (Surge Watts) | 11,000 |
Weldable Materials | Steel, Stainless Steel, Galvanized, Cast Iron |
Min. Amps | 40 |
