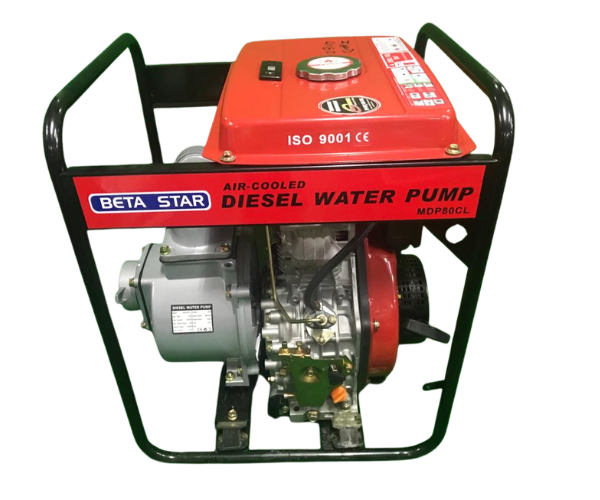

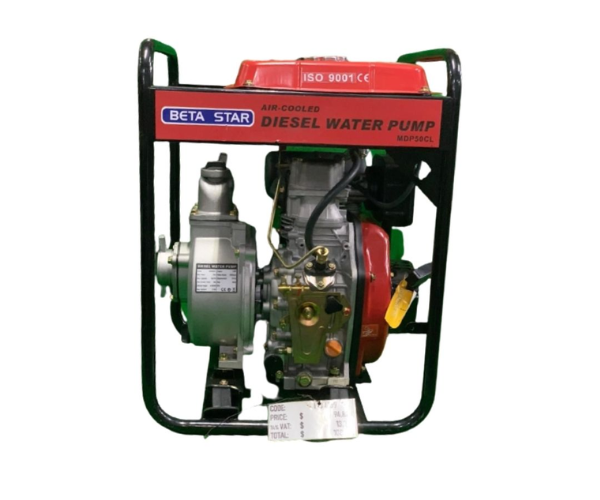

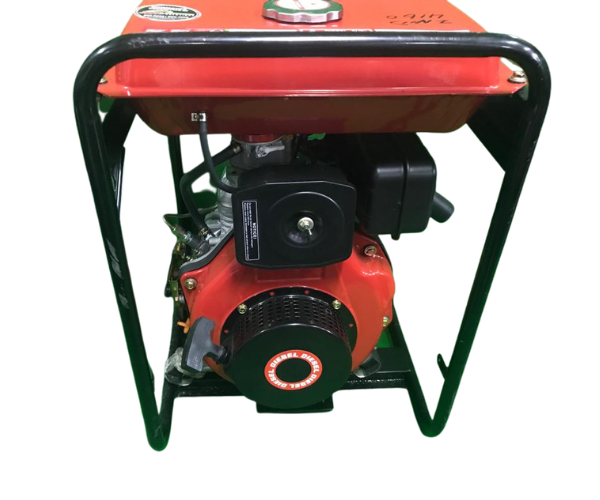

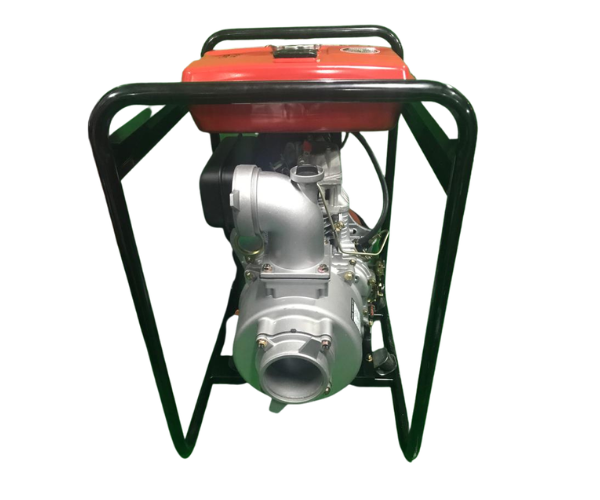

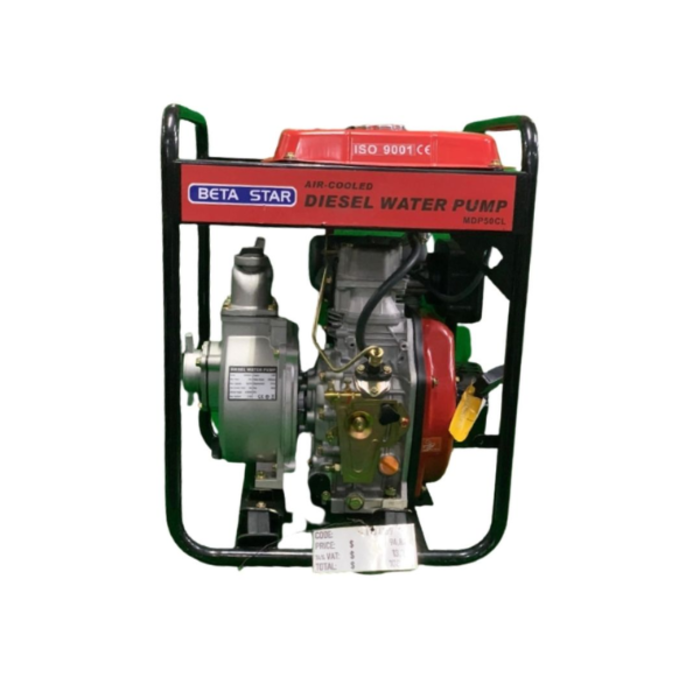

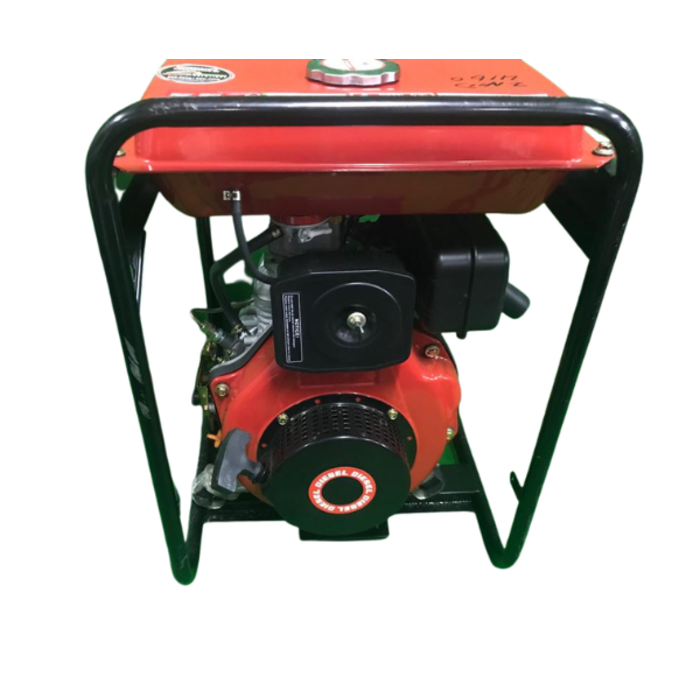

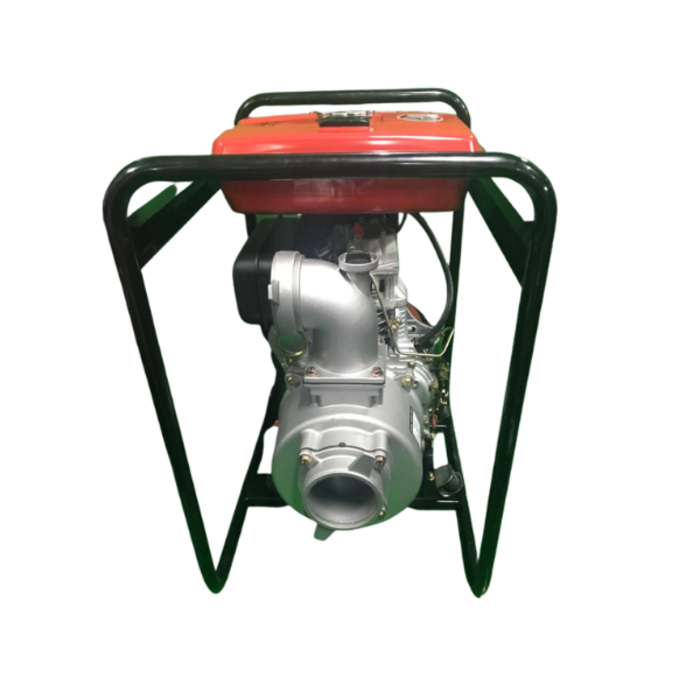

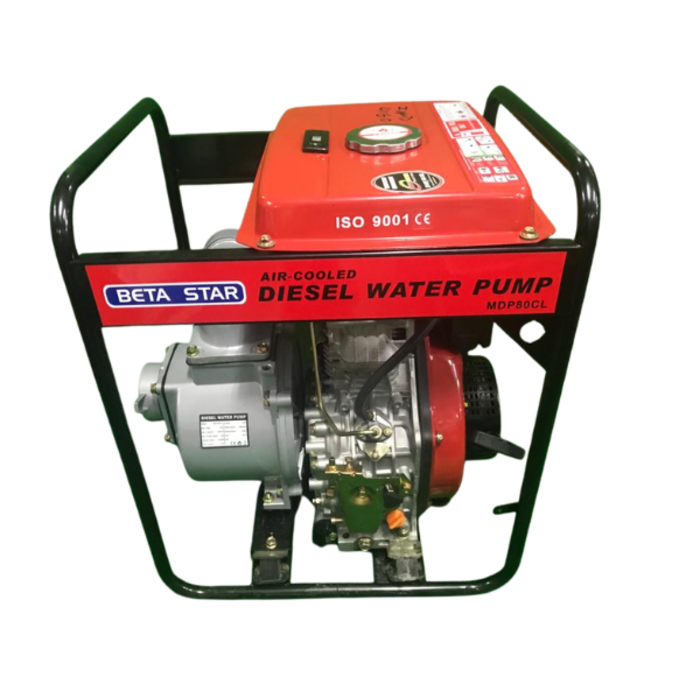

BETA STAR4" DIESEL WATER PUMP (IND4161)

MDP100L 4' BETA STAR DIESEL WATER PUMP WITH 186F ENGINE 6.3KW 3600RPM-

These pumps can transfer or remove water ideal for a wide variety of pressure boosting, liquid agricultural chemical sprayer & lawn & turf irrigation applications, rugged cast iron pump body & handle.

Water Pumps and High pressured pumps consist of diesel engines and pump kits.

The pump is fixed on a frame with shock absorbers.
These self-priming pumps consist of a pump body, pump cover, flow guidance, impeller, seals, etc.
Shaft sealing is machinery type sealing and the inlet of the pump is higher than the inlet of the impeller so that it can self-prime and you only need to fill water in the body of the pump.

The inlet of the pump is fixed with a one-way valve to prevent liquid from being drained into the water pool from the pump body by siphon after stopping the Machine.

It’s a must to guarantee store enough liquid in the pump body for the next start.
The self-priming pumps flow guidance and impeller are made from high strength cast iron, High pressure pumps flow guidance and impeller are made from high-quality dye casting of Aluminum Alloy.

To meet different use, high-pressure pumps can be equipped with different accessories.

Part Number: MDP100L

• Fuel Type: Diesel

• Type: Self-priming centrifugal pump

• Suction/Delivery: 4" × 4"

• Total Head: 28 m / 91.9 ft

• Suction Head: 8 m / 26.2 ft

• Max Delivery Volume: 80 m³/h / 352.3 GPM

• Mechanical Seal: Ceramic Carbon

• Engine Model: 186FA(E)

• Fuel Tank Capacity: 5.5 L

• Starting System: Manual / Electric Start
