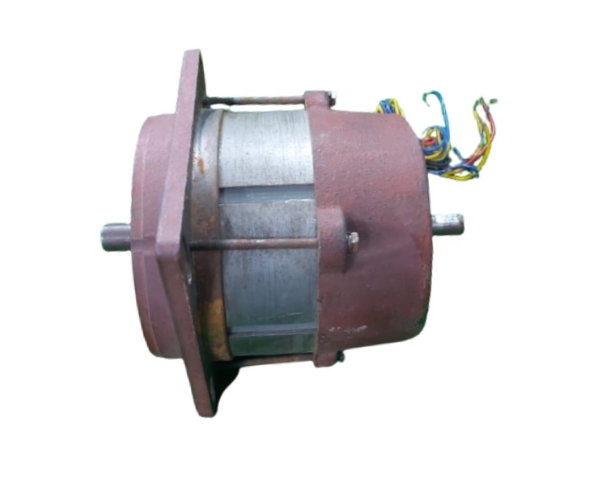

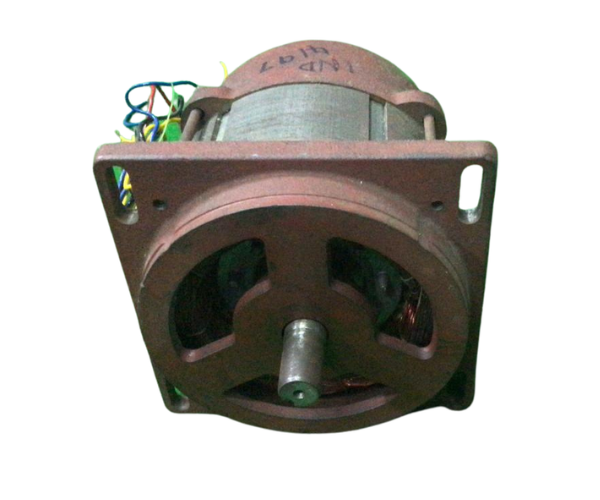

IND4197 MOTOR B30C 110V 60HZ

This OEM-spec, high-torque replacement motor assembly is engineered exclusively for 30-liter (30-quart) commercial food mixers, including the B30 and B30C series. This component drops directly into the upper mechanical housing of the mixer to drive the primary transmission gear assembly. This motor provides the high breakdown torque and starting current necessary to pull through heavy doughs, stiff batters, and dense food products without stalling or overheating.

Heavy-Duty Structural Architecture

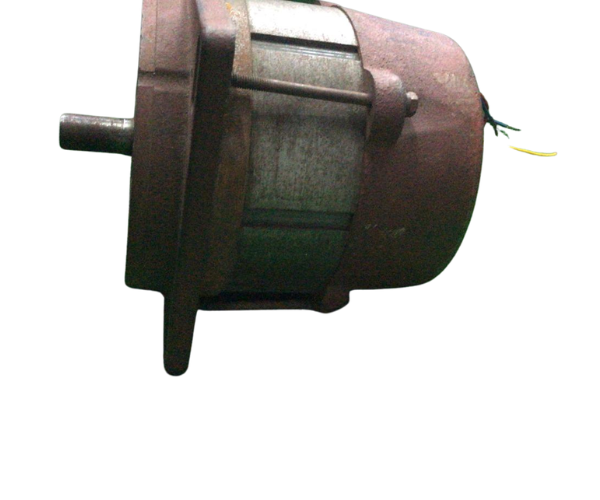

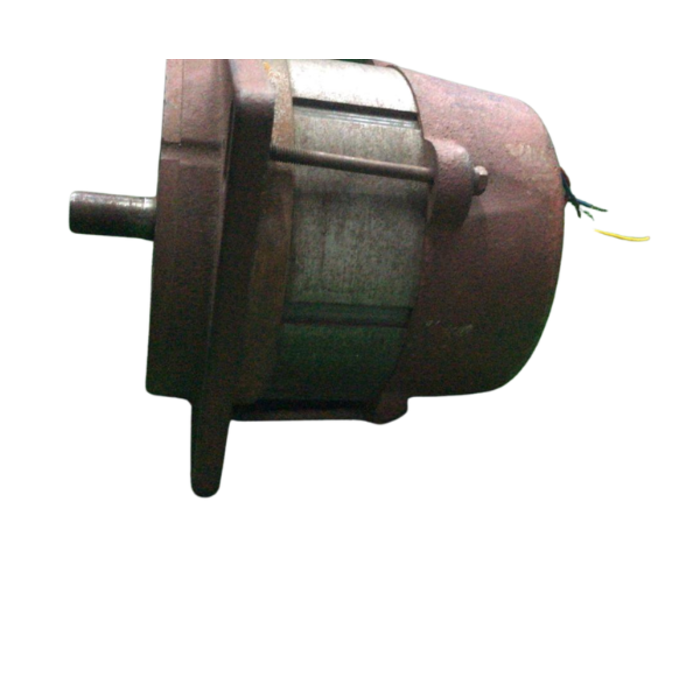

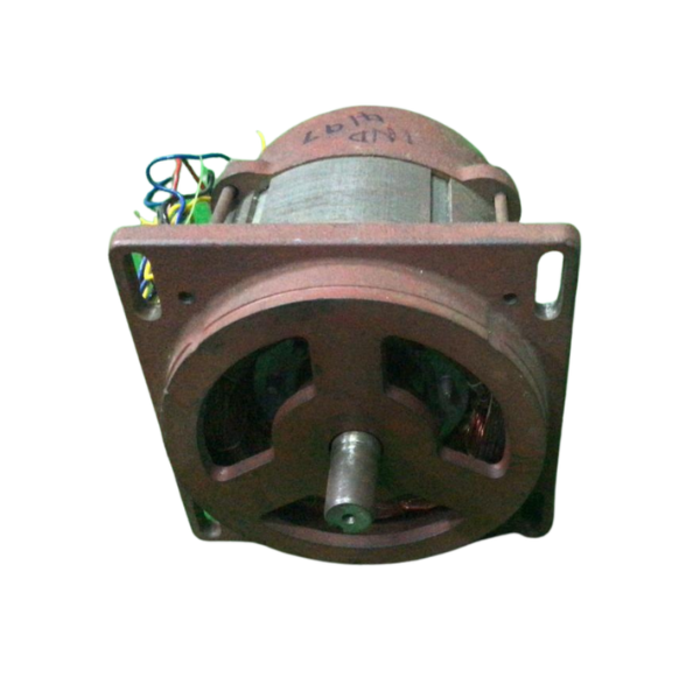

Dual-Flange Cast-Iron End Bells: The front and rear housings are cast from high-tensile iron and finished in an anti-corrosive industrial primer paint. The integrated, oversized square mounting flange features pre-machined bolt holes designed to align with the mixer's internal transmission case.

Tie-Rod Reinforced Stator Stack: The central core consists of premium, precision-stamped laminated silicon steel stator plates. High-strength longitudinal tie-rods span the entire length of the chassis, compressing the assembly to eliminate laminating vibration, structural twisting, and audible hum under extreme mechanical loads.

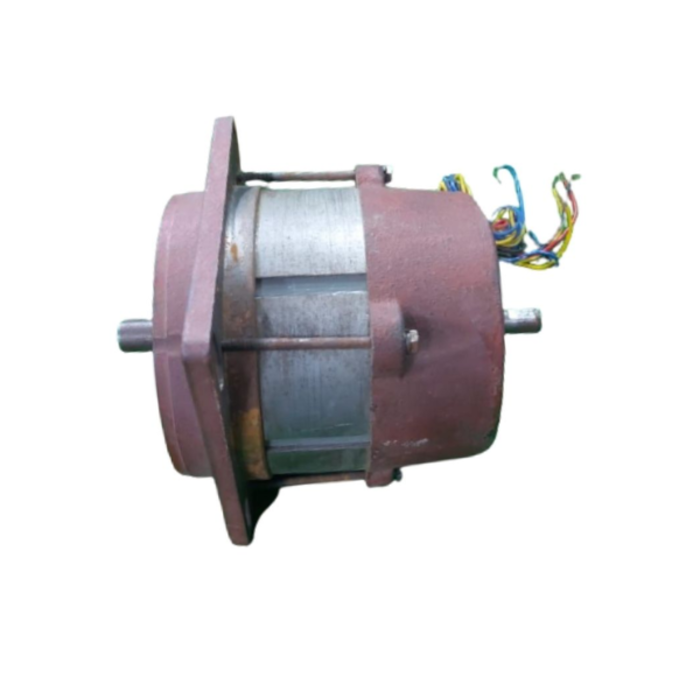

Dual-Output Hardened Shaft: The precision-ground steel drive shaft protrudes through the front mounting flange to accept your mixer’s primary drive pulley or pinion gear, while the rear shaft extension is keyed to accommodate a high-airflow internal cooling fan.

Premium Electrical Components

100% Pure Copper Windings: The internal stator is wound with high-grade copper wire insulated with high-temperature enamel coatings. This ensures maximum electrical efficiency, rapid heat dissipation, and resistance to insulation breakdown during back-to-back mixing cycles.

Oversized Capacitor-Start/Capacitor-Run System: The motor's internal auxiliary windings are tailored to tie into external dual-capacitor circuits (typically a high-microfarad start capacitor paired with a run capacitor). This provides the massive electrical surge required to break initial inertia when starting a batch filled with dry flour or heavy ingredients.

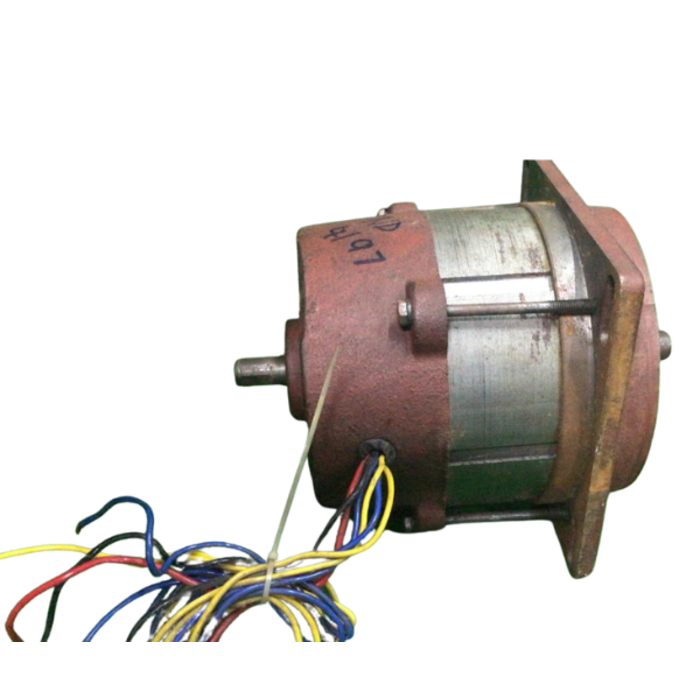

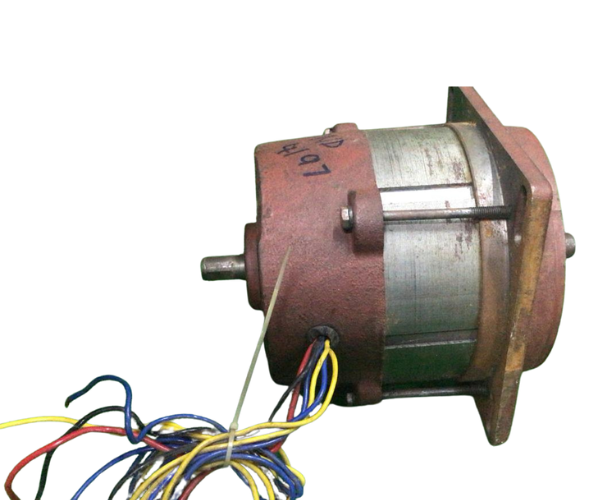

Multi-Conductor Sealed Wiring Loom: A color-coded, multi-wire harness exits the rear frame through a protective rubber grommet. This bundle isolates the starting circuits, thermal protectors, and running windings for direct integration into your mixer’s heavy-duty AC magnetic contactor switch.

Built for Harsh Commercial Kitchens

Totally Enclosed Non-Ventilated (TENV) Windings Body: While utilizing a rear fan for body-surface cooling, the internal winding chamber is shielded against fine airborne flour dust, sugar crystals, and moisture. This prevents debris accumulation that causes internal tracking, electrical shorts, or fire hazards.
Sub-Surface Thermal Overload Protection: An integrated, auto-resetting thermal bimetallic switch is embedded directly into the copper windings. If an operator overloads the bowl with heavy pizza dough and the temperature spikes dangerously, the circuit breaks automatically to save the motor from complete burnout.

Installation & Technical Requirements

Specification Element - Requirement / Setting
Compatible Mixer Size - 30 Liter / 30 Quart (B30 / B30C / Golden Bull / GastroMix)
Electrical Input - 110V–120V AC, 60Hz, Single-Phase
Estimated Base Power - 1100W – 1500W (approx. 1.5 to 2.0 HP output equivalent)
Lubrication Note - Bearings are permanently sealed and shielded; no internal greasing is required during swaps.
