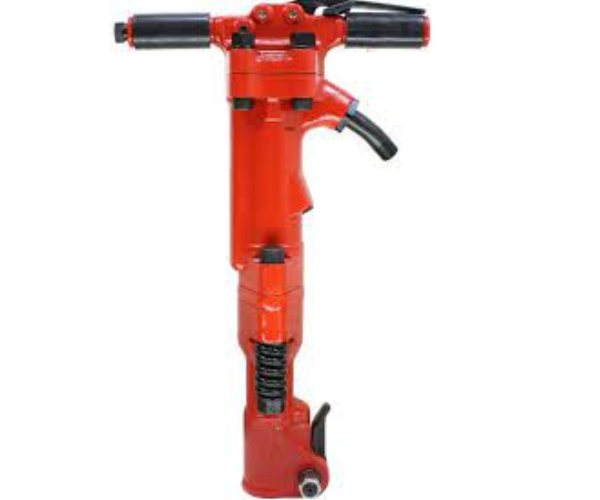

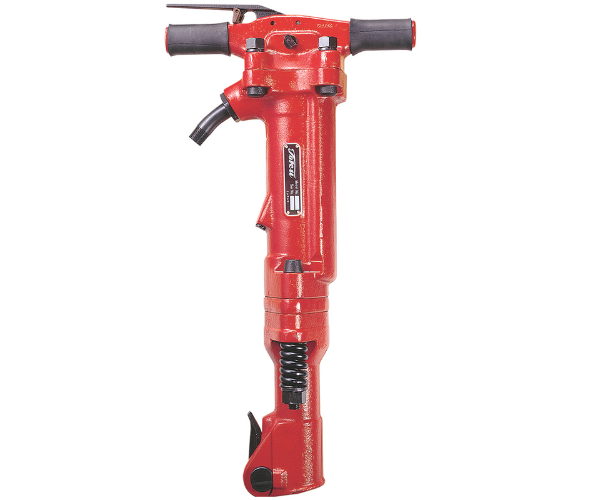

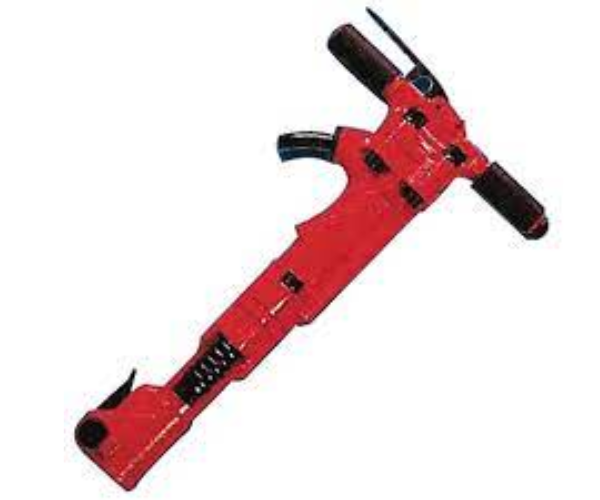

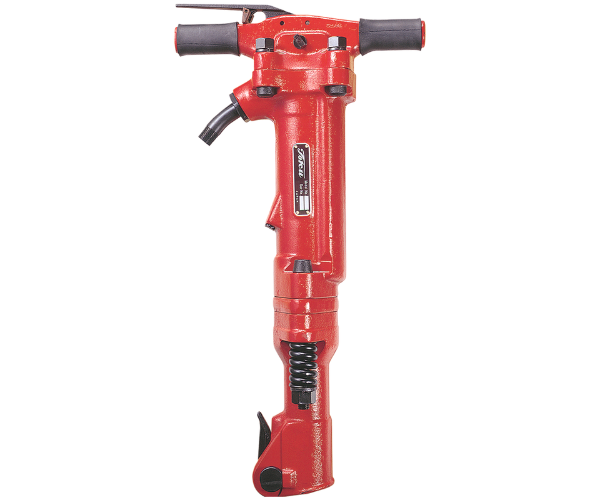

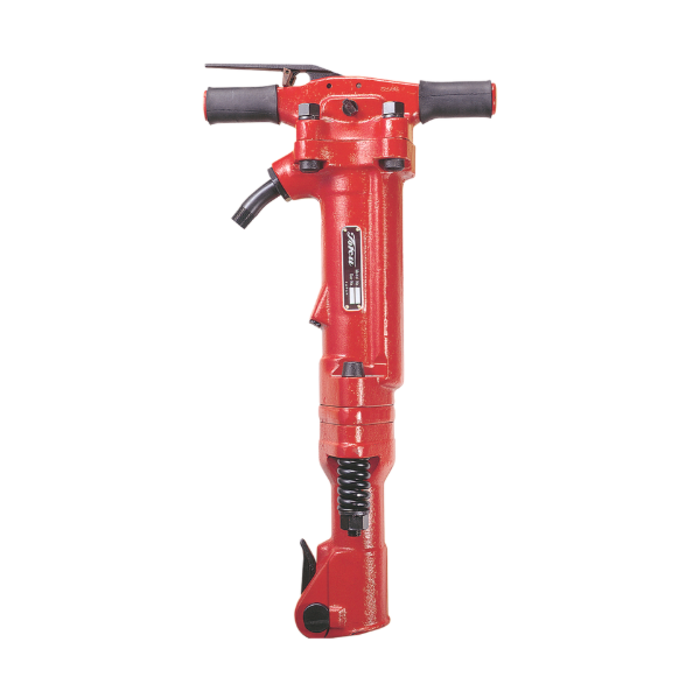

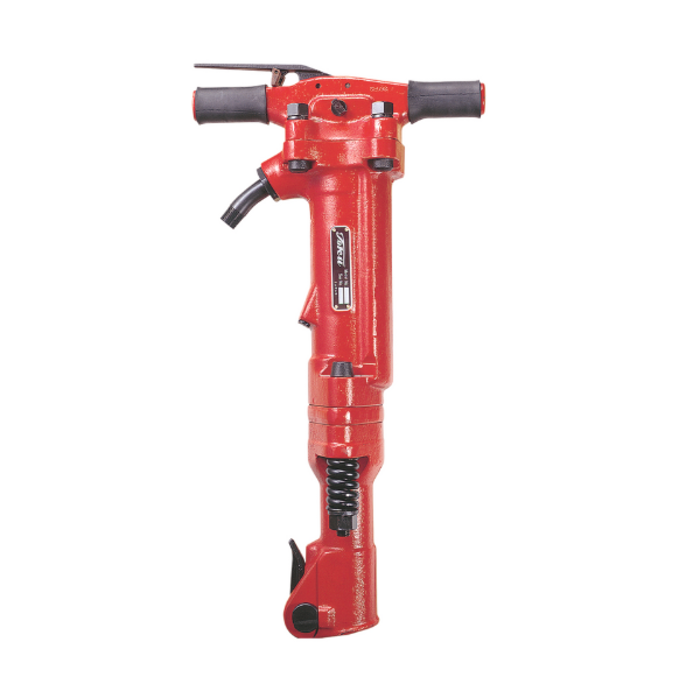

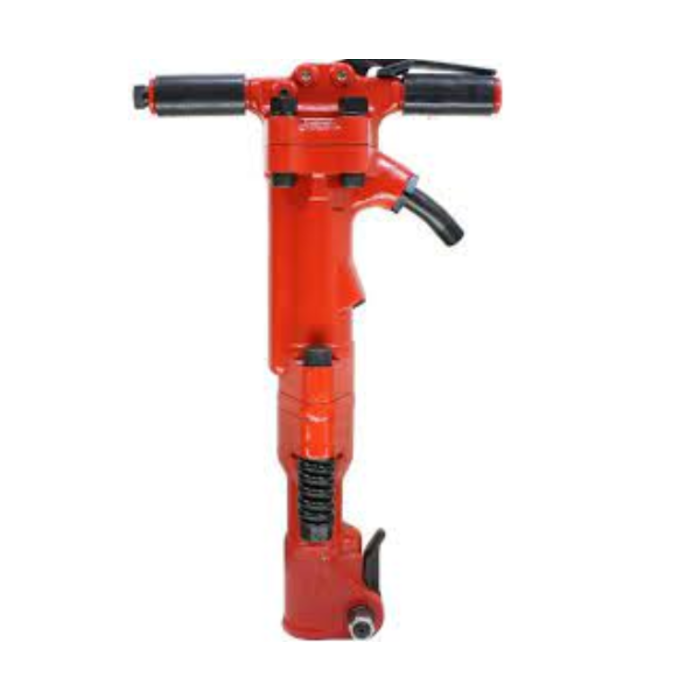

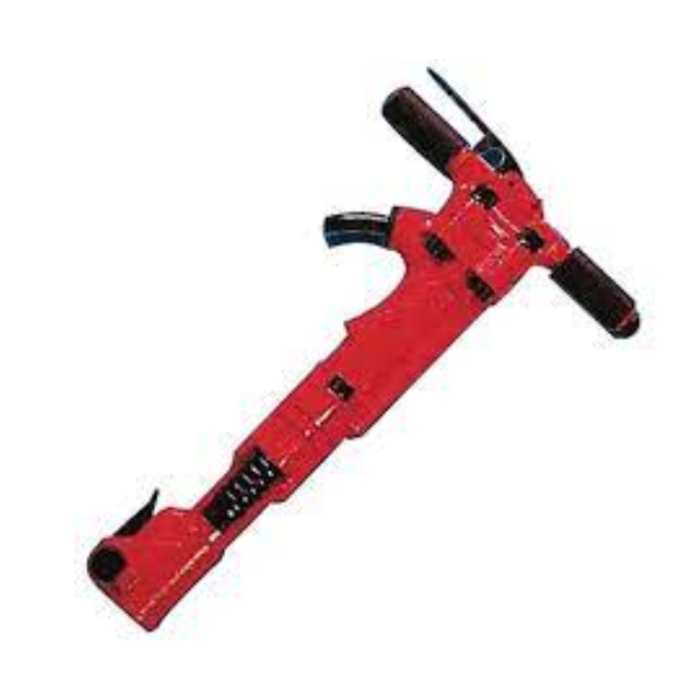

BETA STARAIR OPERATED JACK HAMMER TPB90 (IND5651)
Pneumatic Jackhammer – 42 kg
Take on demanding breaking and demolition work with this air-powered jackhammer. Delivering 1,400 blows per minute, it is suited to construction, excavation and site preparation tasks.
Technical Specifications
• Weight: 42 kg
• Piston diameter: 66.67 mm (2.62 inches)
• Piston stroke: 152 mm (5.98 inches)
• Overall length: 723 mm (28.46 inches)
• Air consumption: 2.2 m³/min
• Blow frequency: 1,400 blows per minute
• Air hose inner diameter: 19 mm (0.75 inches)
• Shank size: Ø32 × 160 mm (Ø1.26 × 6.30 inches)
• Air inlet: ¾″ P/T
Operating Air Pressure
Requires 90 PSI (approximately 6.2 bar) for efficient operation. Maintain 90 PSI at the jackhammer during use and do not exceed 100 PSI. Select a compressor and air supply system capable of meeting both the pressure and airflow requirements.
