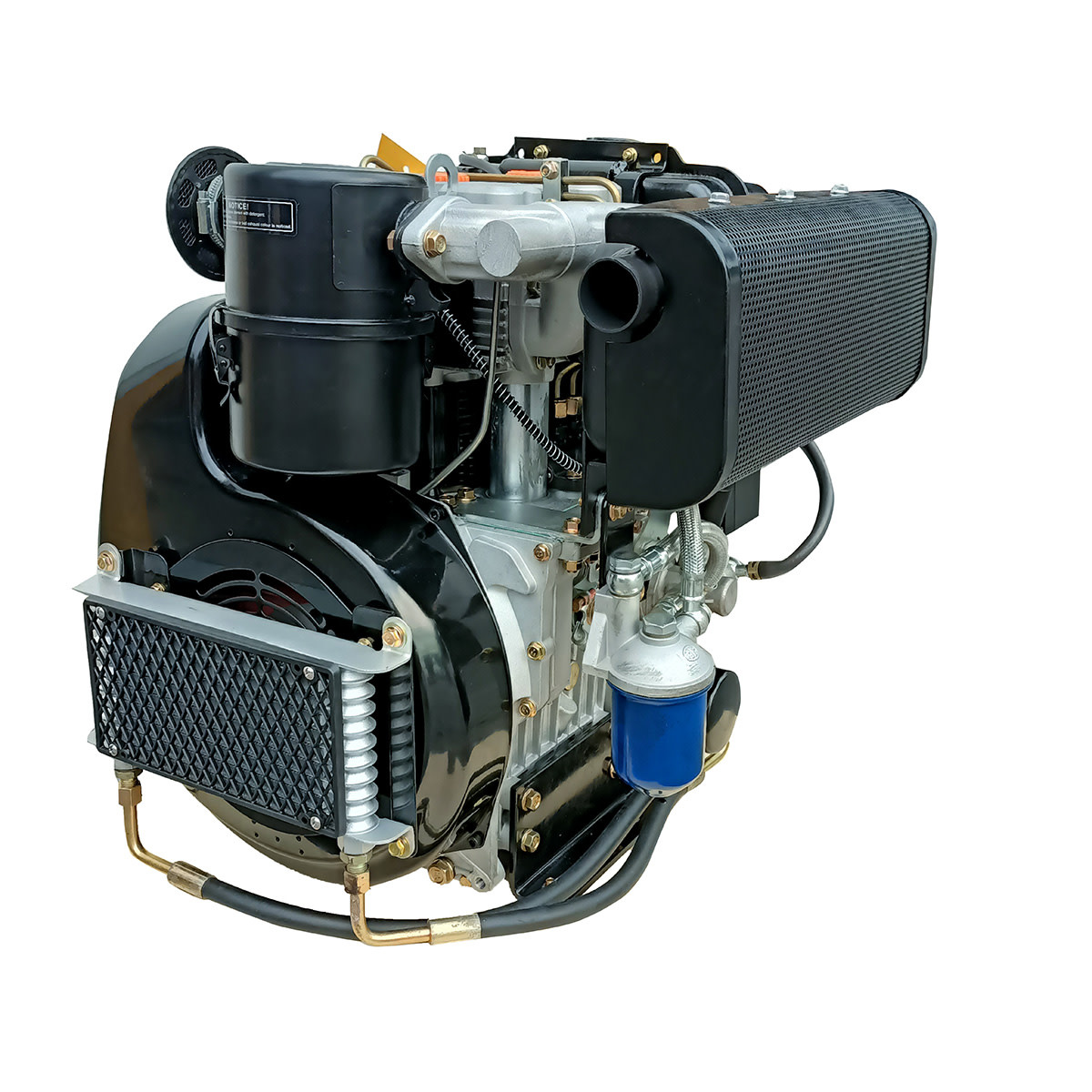

IND5712 // 2V92 AIR-COOLED REPLACEENT DIESEL ENGINE FOR 10KW GENERATOR #290F 3600 RPM

The Air cooled diesel engine (290F) is a powerful, heavy-duty two-cylinder multi-purpose diesel engine designed specifically for commercial, industrial, and agricultural replacement applications. This variant is a tankless configuration, engineered to integrate seamlessly into machinery that utilizes a pre-existing, external fuel system or an integrated chassis reservoir.

Core Specifications

Engine Type: Twin-Cylinder, 4-Stroke, Air-Cooled Diesel Engine
Displacement: 954 cc
Bore × Stroke: 90 mm × 75 mm
Maximum Output: 18.7 hp to 20 hp (depending on application speed)
Continuous Output: 17 hp
Fuel System: Requires an external fuel supply line (connects directly to the onboard mechanical fuel injection system)
Starting System: 12V Electric Start
Net Weight: Approx. 78–81 kg (slightly lighter due to the absence of the standard 7L top-mount tank)

Key Features for Replacement Applications

Flexible Fuel Plumbing: By eliminating the top-mounted tank, this profile offers a lower physical clearance and connects directly to gravity-fed external tanks or machinery equipped with low-pressure fuel lift pumps.

Industrial-Grade Torque: The 954cc twin-cylinder design delivers deep low-end torque, making it a perfect drop-in replacement for high-demand machinery like large industrial generators, heavy water pumps, hydraulic packs, and utility tractors.

Heavy-Duty Construction: Built with rugged cast-iron and high-grade alloys to withstand harsh continuous-duty environments while maintaining high fuel efficiency and clean 4-stroke combustion.
