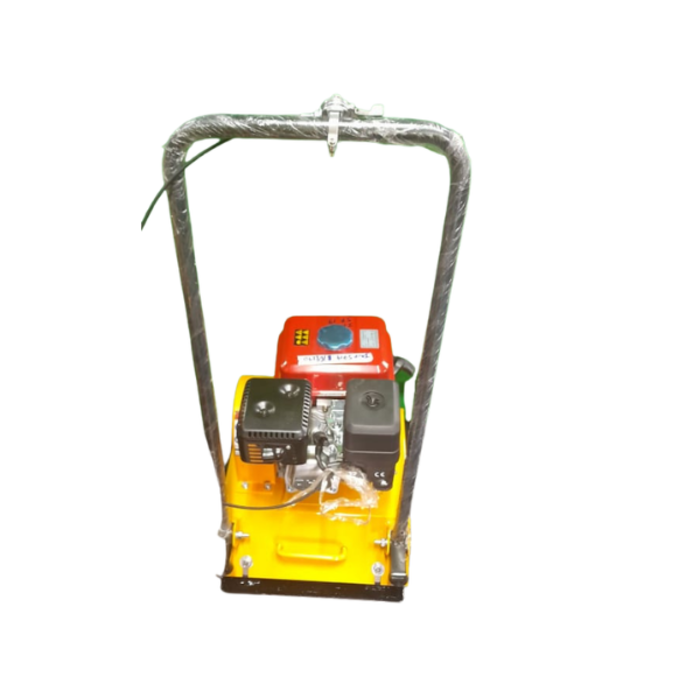

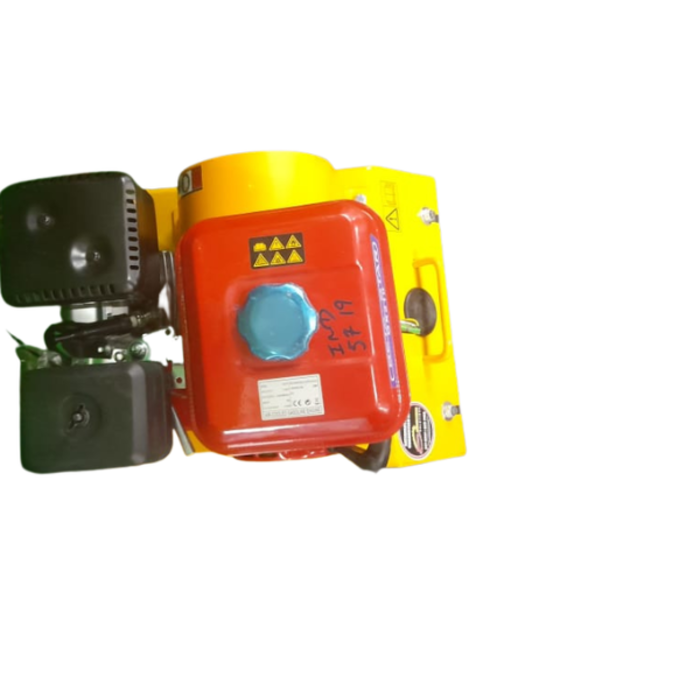

BETA STARIND5719-GASOLINE C90 PLATE COMPACTOR WITH GE200 BETA STAR ENGINE--D/S

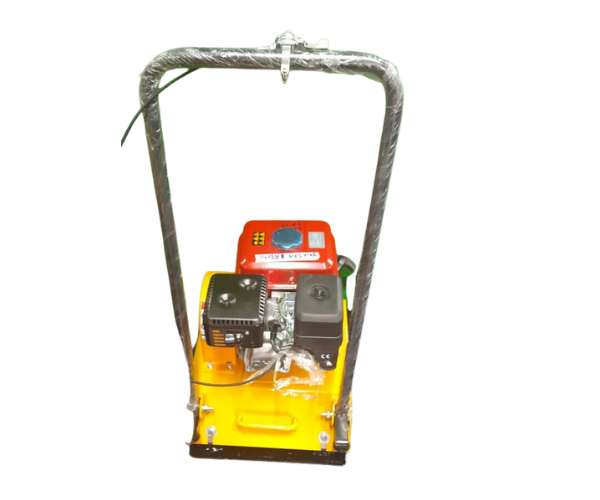

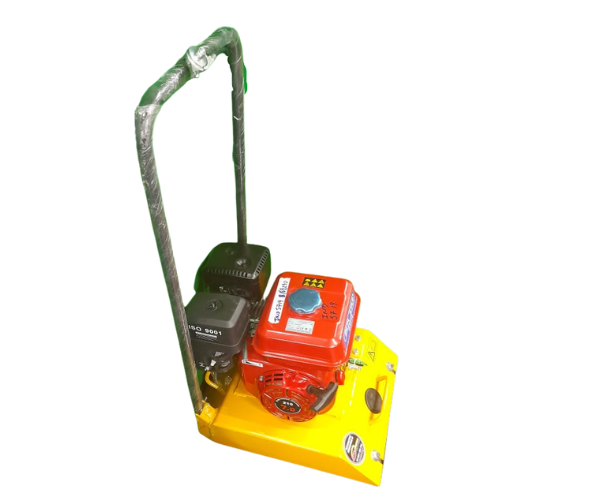

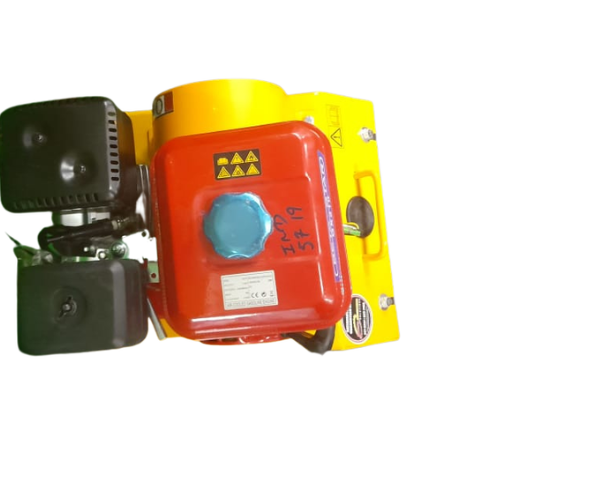

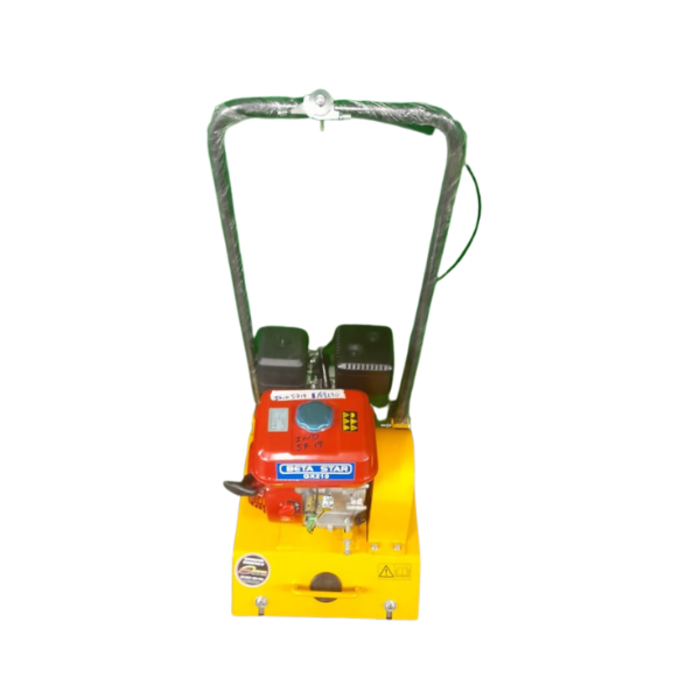

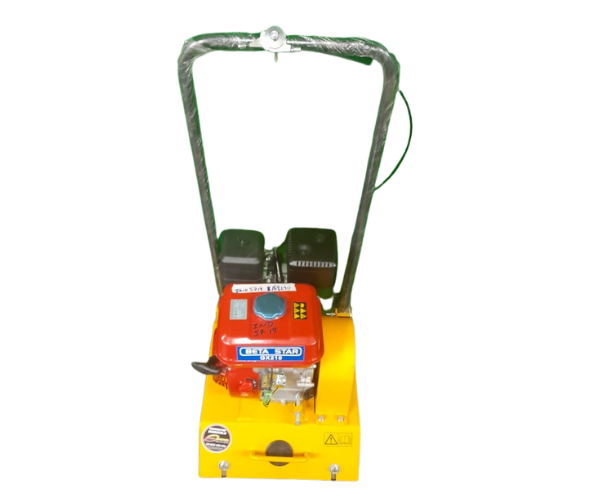

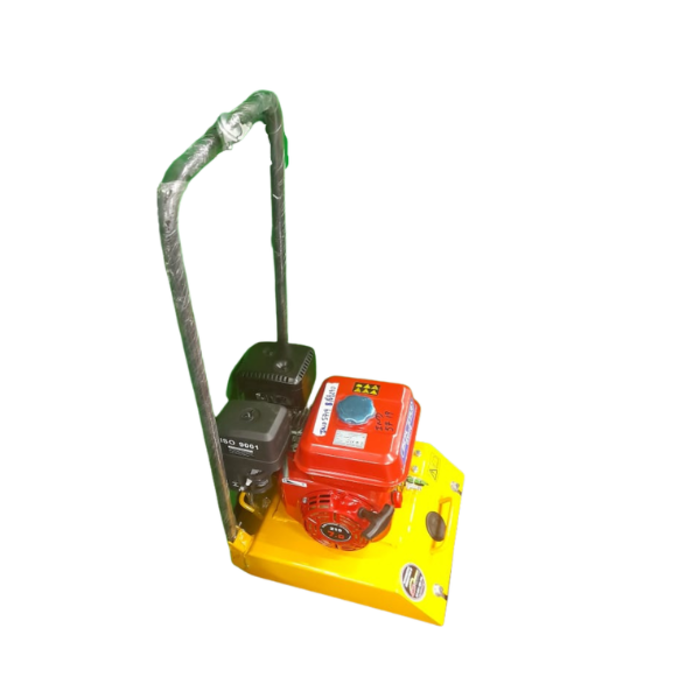

The Beta Star IND5719 Gasoline C90 Plate Compactor is a highly efficient, commercial-grade vibratory rammer designed to handle demanding paving, construction, and landscaping applications. Powered by a robust GE200 Beta Star 6.5 HP gasoline engine, this walk-behind single-direction compactor generates powerful rapid vibrations that effectively compress materials, purge air pockets, and create a solid, tightly bound foundation surface. It is uniquely optimized for tight job sites and professional ground preparation.

Key Features & Capabilities
Engine Output & Reliability: Driven by an air-cooled, 4-stroke GE200 small-displacement gasoline engine featuring a transistor magneto ignition system and a reliable recoil starter pulley.
Deep Layer Compaction: Engineered to deliver high-impact force capable of reaching an effective compaction depth of up to 30 cm (12 inches) into standard base soils.
High Efficiency & Speed: Operates at a brisk forward travel speed of 30 cm/s, accelerating work across wider square-footage areas while maintaining steady compaction consistency.
Self-Cleaning Open Baseplate: The thick structural steel baseplate incorporates an open, contoured design that minimizes dirt and rock accumulation, maintaining balanced vibration force.
Ergonomic Shock Dampening: Built with heavy-duty structural rubber isolator mounts between the lower frame and the handling bars to shield the operator from high-frequency hand-arm vibration (HAV).

Technical Specifications

Model C90 (SKU: IND5719)
Engine Model Beta Star GE200 (Air-Cooled, 4-Stroke OHV)
Engine Displacement 163cc
Power Output 6.5 HP (4.1 kW)
Fuel Tank Capacity 3.6 Liters
Engine Oil Capacity 0.6 Liters
Compaction Depth 30 cm (approx. 12 inches)
Forward Travel Speed 30 cm/s
Primary Material Suitability Granular soils, hot/cold asphalt mixtures, sand, gravel, paving blocks

Recommended Work Applications

Civil Groundworks: Sub-base leveling for roadways, backfilling structural trenches, foundation footings, and abutment channels.
Paving & Hardscaping: Pre-compaction smoothing for interlocking bricks, landscaping beds, driveway bases, and road edge repair.
