Description

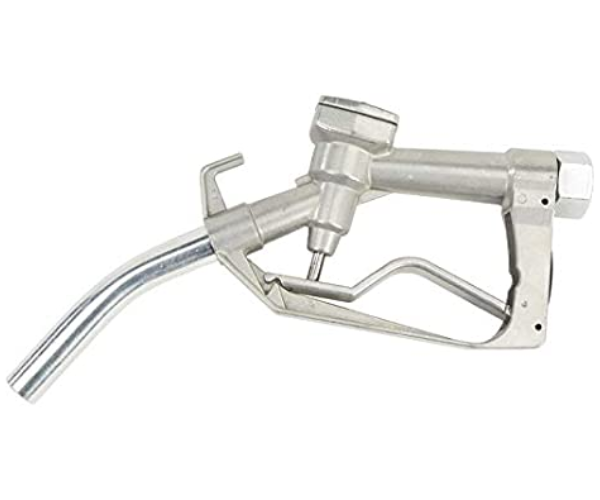

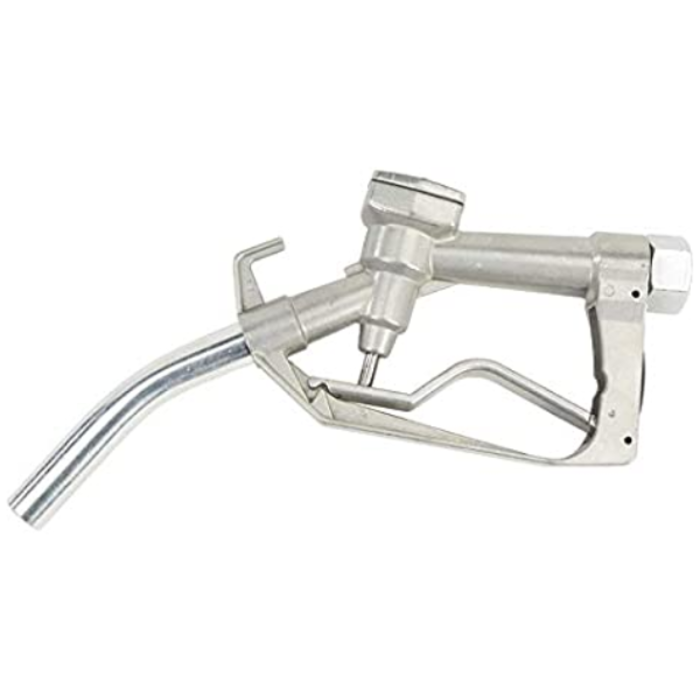

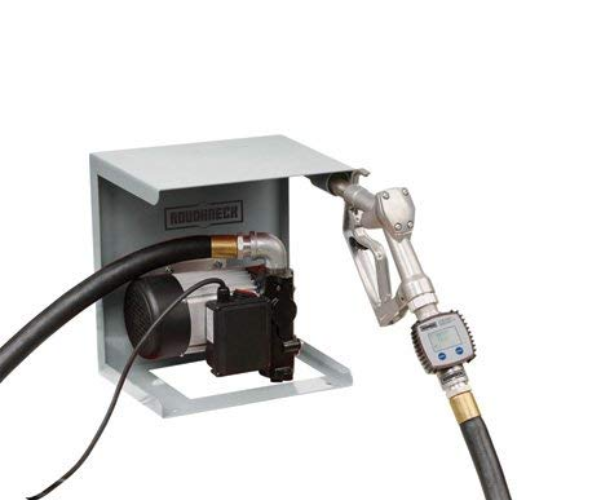

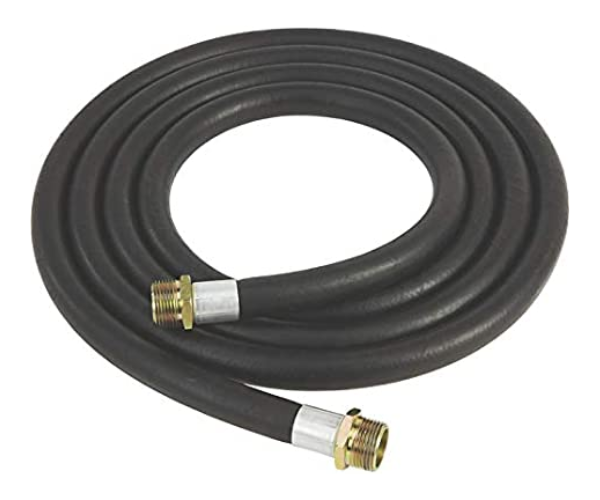

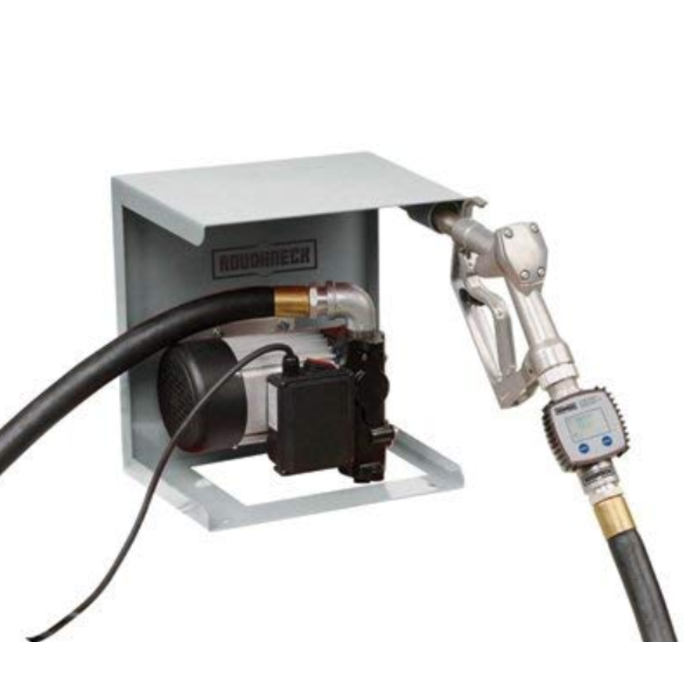

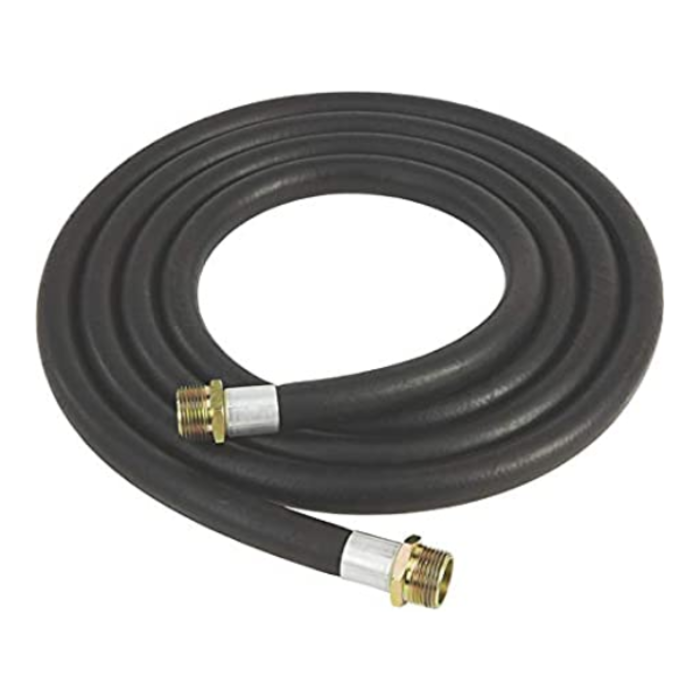

Roughneck diesel fuel transfer pump delivers diesel fuel or light oils at up to 22 GPM. Kit includes turbine digital meter, manual dispensing nozzle, 13ft. delivery hose, and 6.5ft. suction hose with filter. Not for use with gasoline.
- Cast iron construction
- 120V AC
- 0.6 HP motor with a self-priming pump and a bypass valve to prevent overheating
- 1in. inlet and outlet
- Brand Roughneck
- Material Metal
- Body Material Cast Iron
- Gas Type Diesel
- Operation Mode Mechanical
| Attribute | Specification |
|---|---|
item# | 24922 |
Ship Weight | 43.0 LB |
GPM | 22 |
Flow (GPM) | 22 |
Volts | 120 |
Nozzle Type | Manual |
Max. Suction Lift | 8.5 ft |
Max. Total Head | 65 ft |
Amps | 7.2 |
Max. Suction Lift (ft.) | 8 1/2 |
Watts | 450 |
Max. Total Head (ft.) | 65 |
Inlet Port | 1 in |
| Attribute | Specification |
|---|---|
Outlet Port | 1 in |
Discharge | 56.5 ft |
Self-Priming | Yes |
Hose Length | 13 ft |
Inlet Port (in.) | 1 |
Speed | 3,360 rpm |
Bypass Valve | Yes |
Outlet Port (in.) | 1 |
Horsepower | 0.6 HP |
Product Weight | lb |
Discharge (ft.) | 56 1/2 |
Dimensions L x W x H (in.) | 18.0 x 12.5 x 15.0 in |
Hose (in. x ft.) | 1 x 13 |
Speed (RPM) | 3360 |
