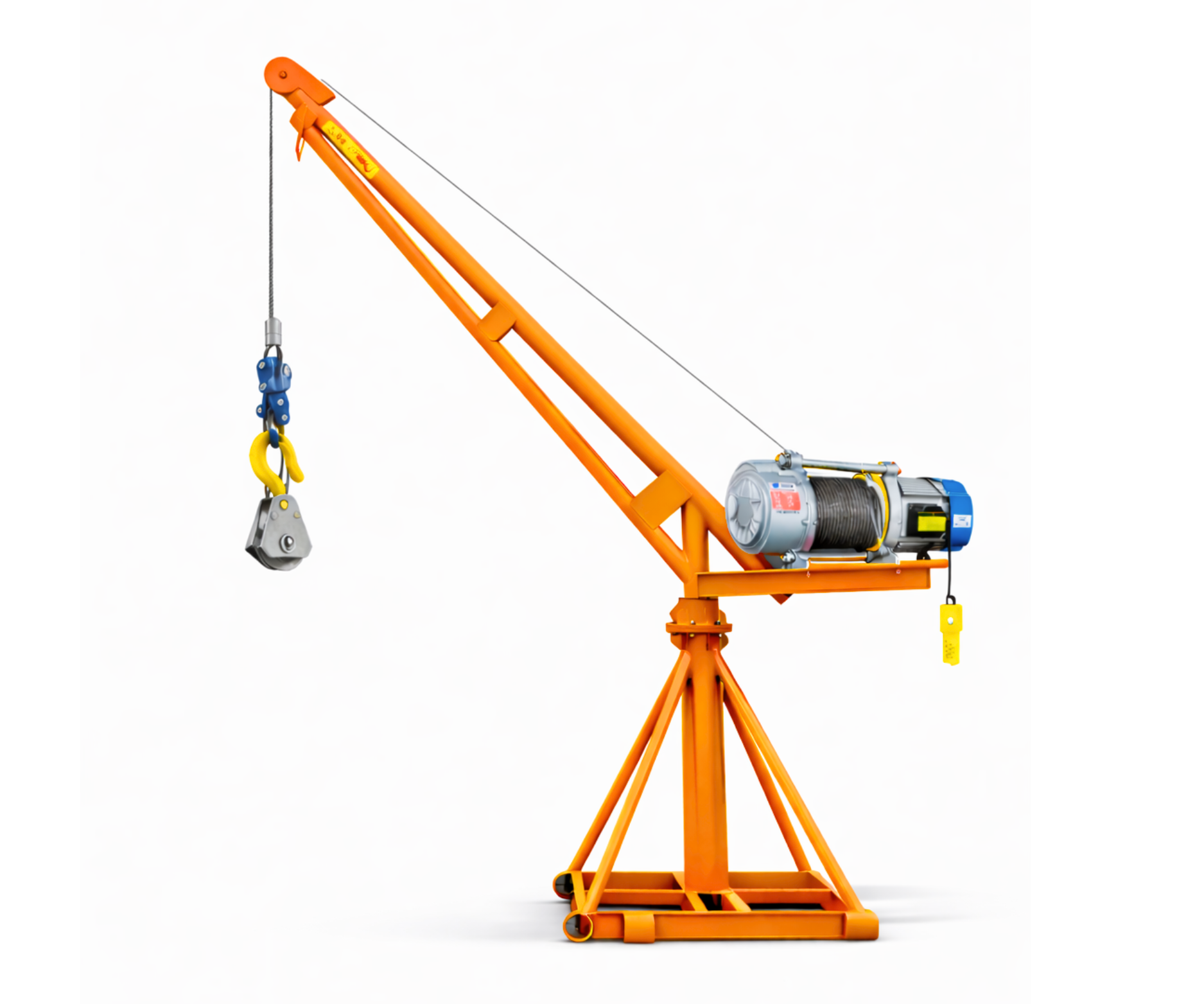

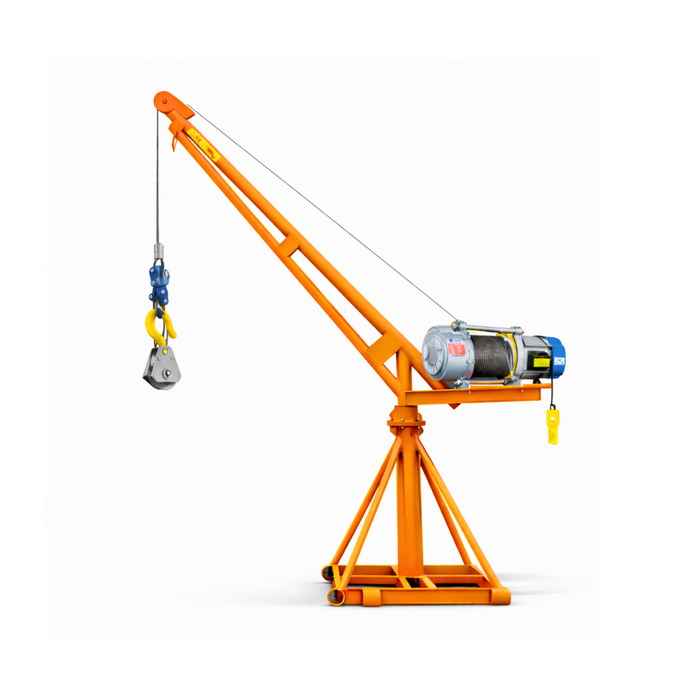

BETA STARIND6006/ PORTABLE MINI CRANE 800KG 30M LENGTH 220V 60HZ

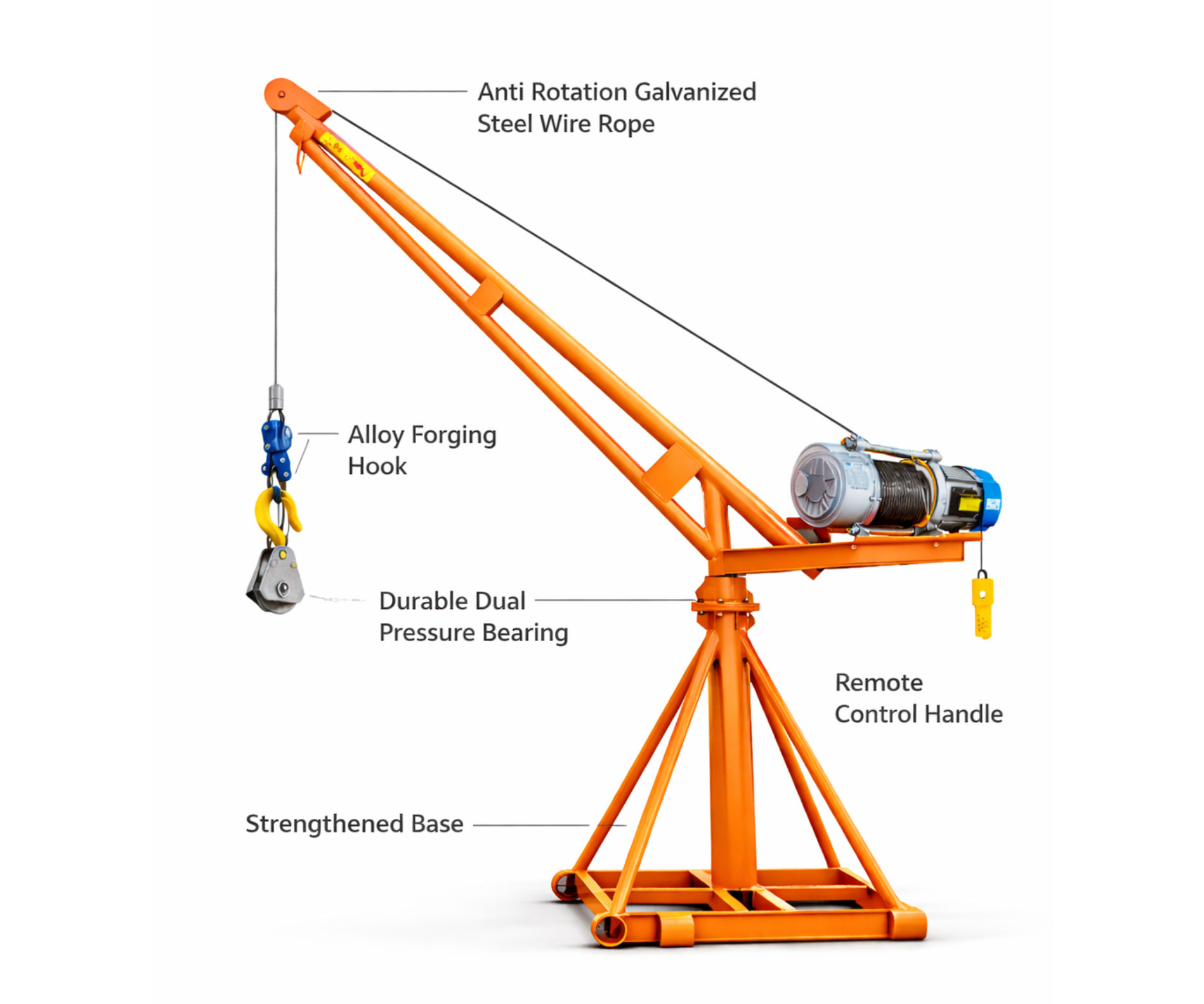

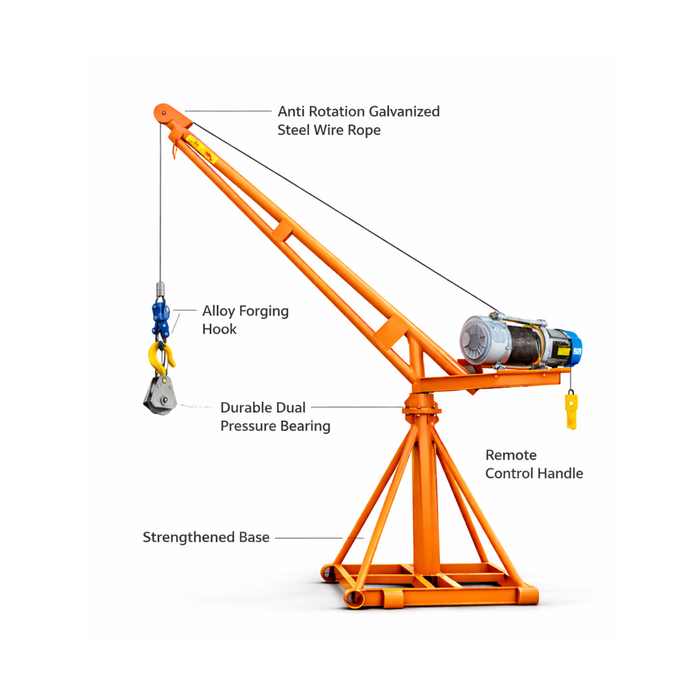

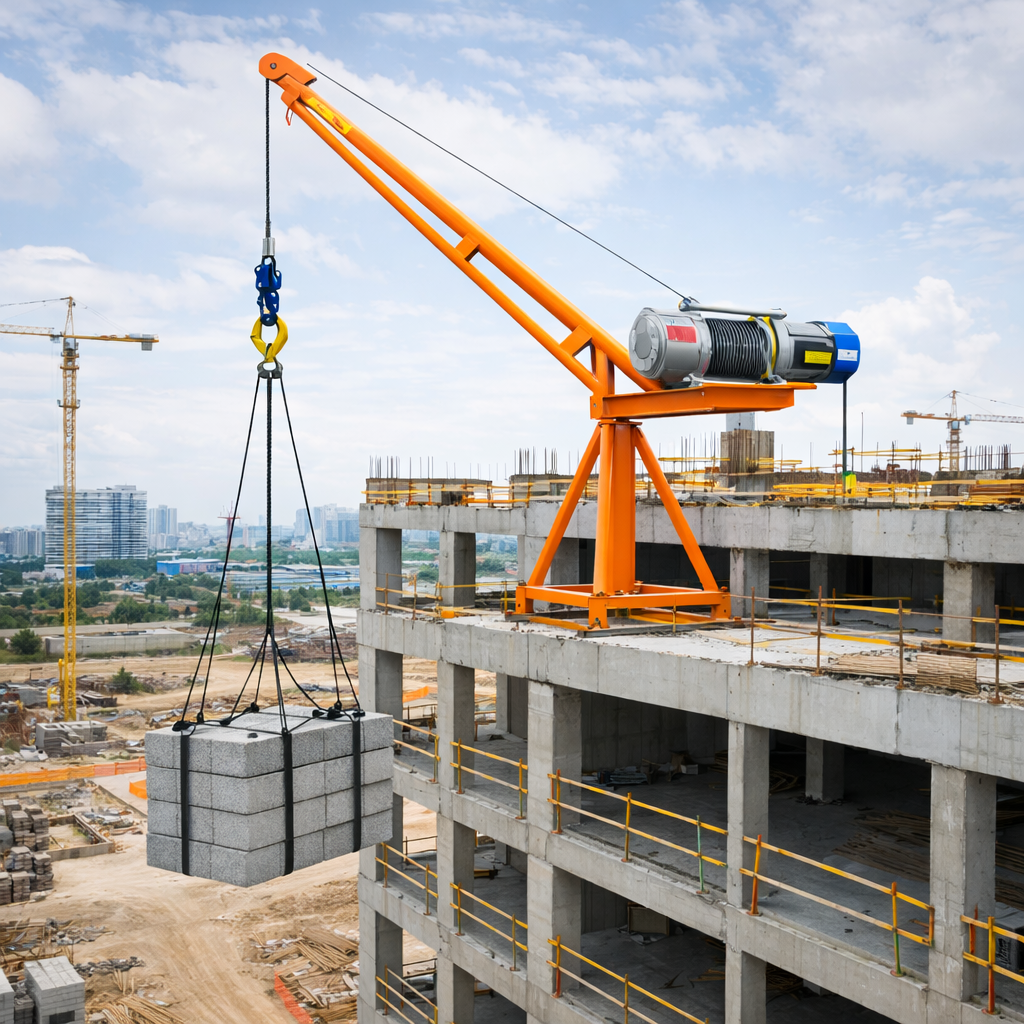

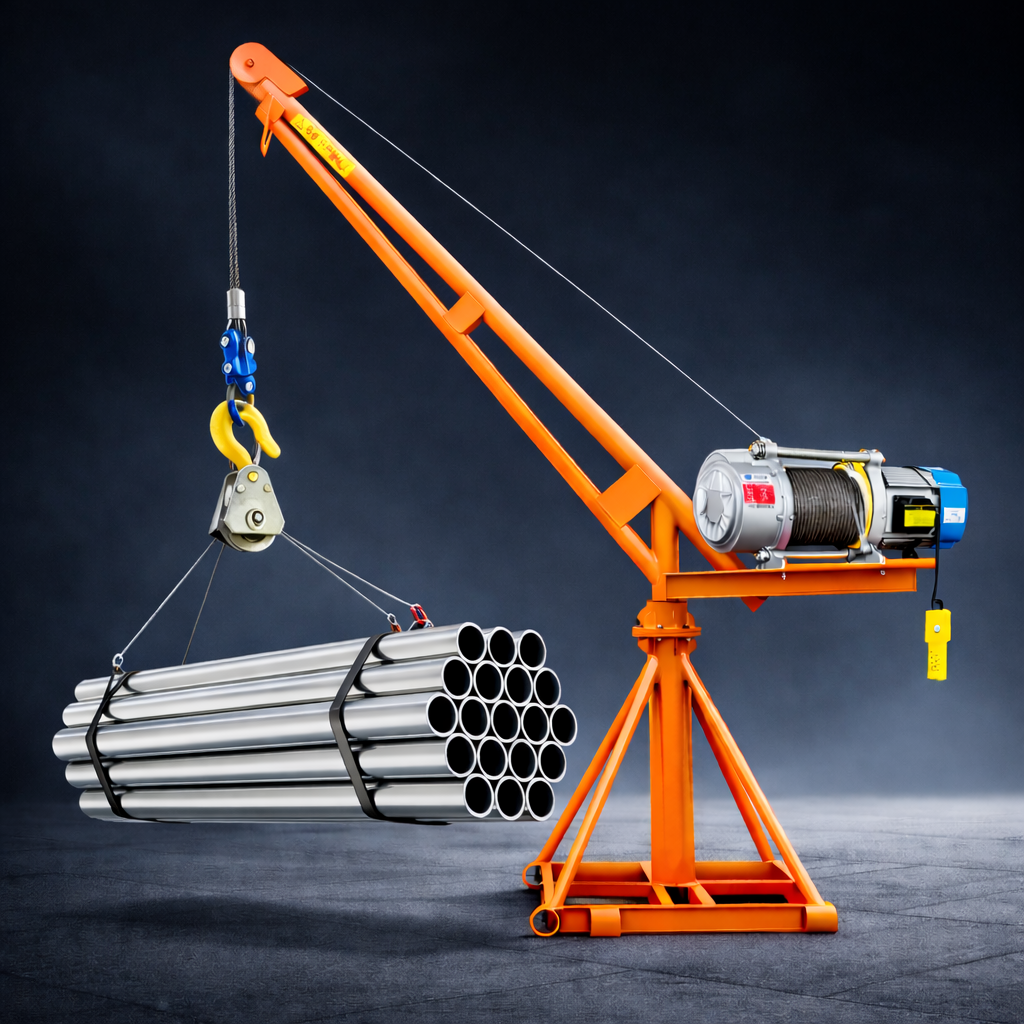

The BETA STAR Portable Mini Crane – 800 kg is a compact and reliable lifting solution engineered for safe and efficient material handling. Paired with a CD-K1 electric wire rope winch, the crane delivers smooth lifting performance up to 30 metres, while the dual pressure bearing system ensures stable and controlled slewing.The combination of a strengthened base, anti-rotation galvanized wire rope, and forged alloy hook provides excellent load stability, making the BETA STAR mini crane ideal for industrial, warehouse, and construction applications.
Crane Specifications
Parameter | Specification |
Product Name | Portable Mini Crane |
Crane Type | Portable floor-mounted jib crane |
Rated Load Capacity | 800 kg |
Maximum Lifting Height | 30 metres |
Jib Configuration | Angled jib arm |

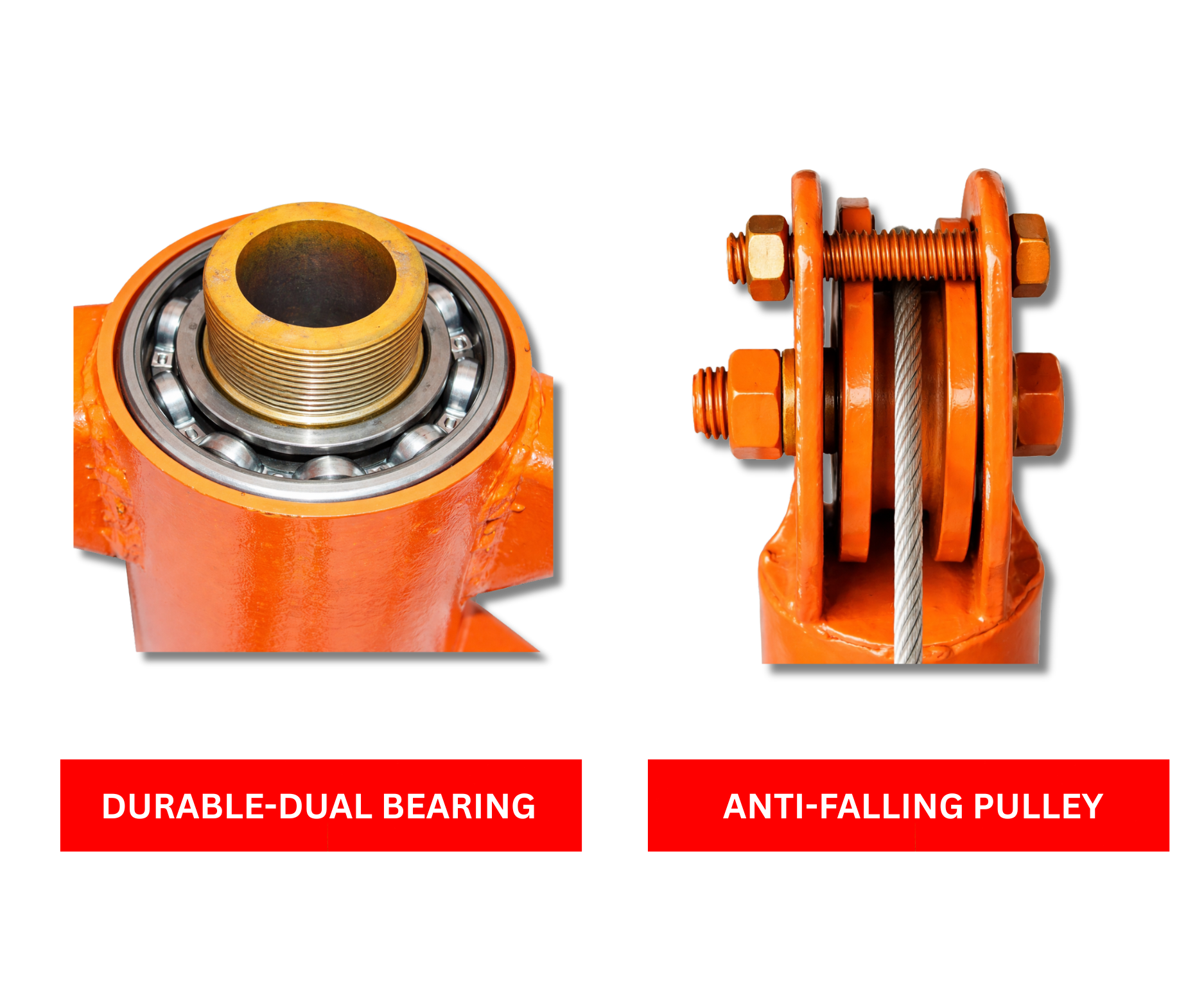

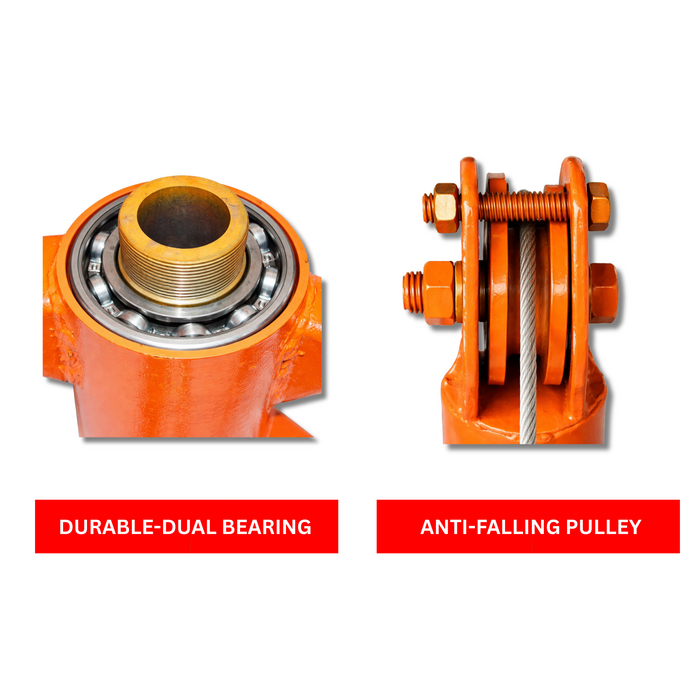

Rotation Mechanism | Durable dual pressure bearing |
Rotation Type | Smooth manual slewing |
Mast Type | Heavy-duty vertical steel mast |
Support Structure | Reinforced triangular steel bracing |

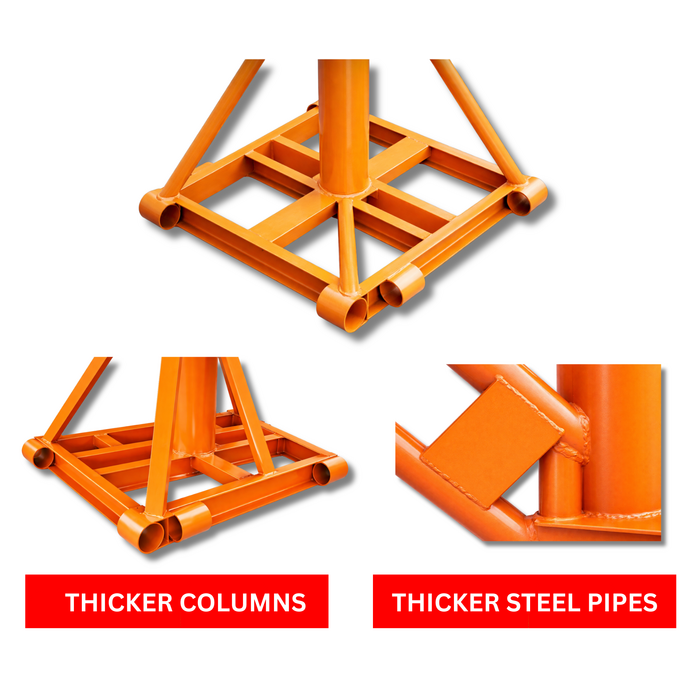

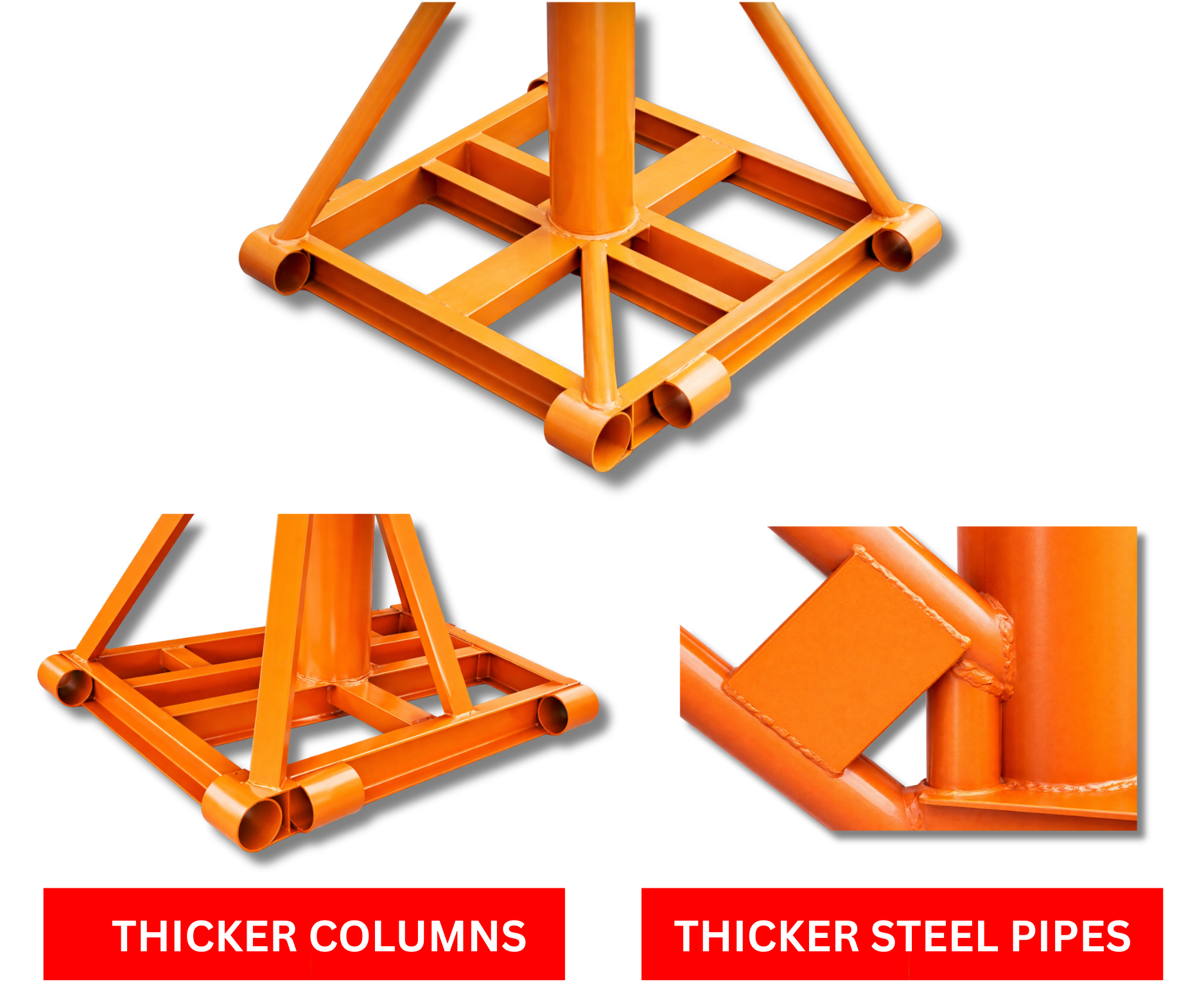

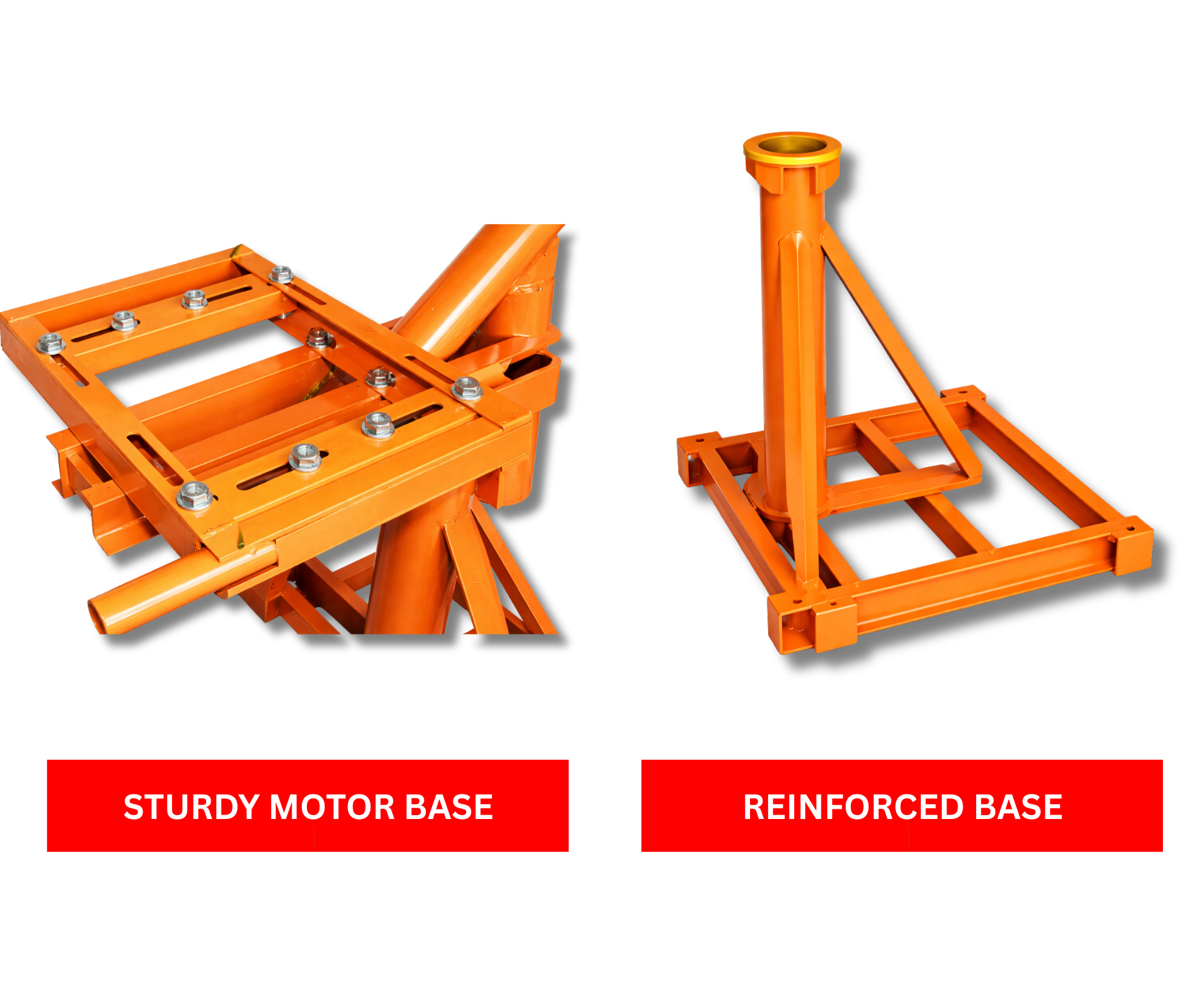

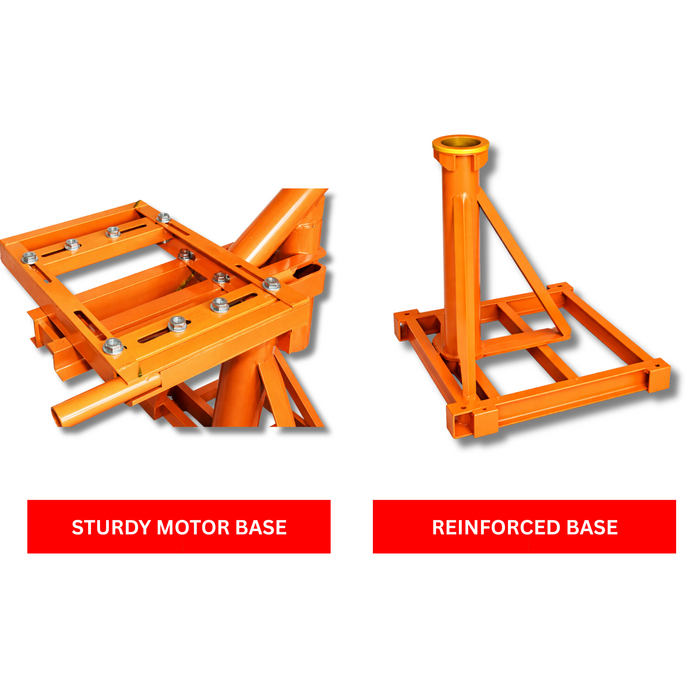

Base Structure | Strengthened steel base frame |
Base Design | Wide footprint for enhanced stability |
Construction Material | Heavy-duty structural steel |
Surface Finish | Industrial powder-coated (orange) |

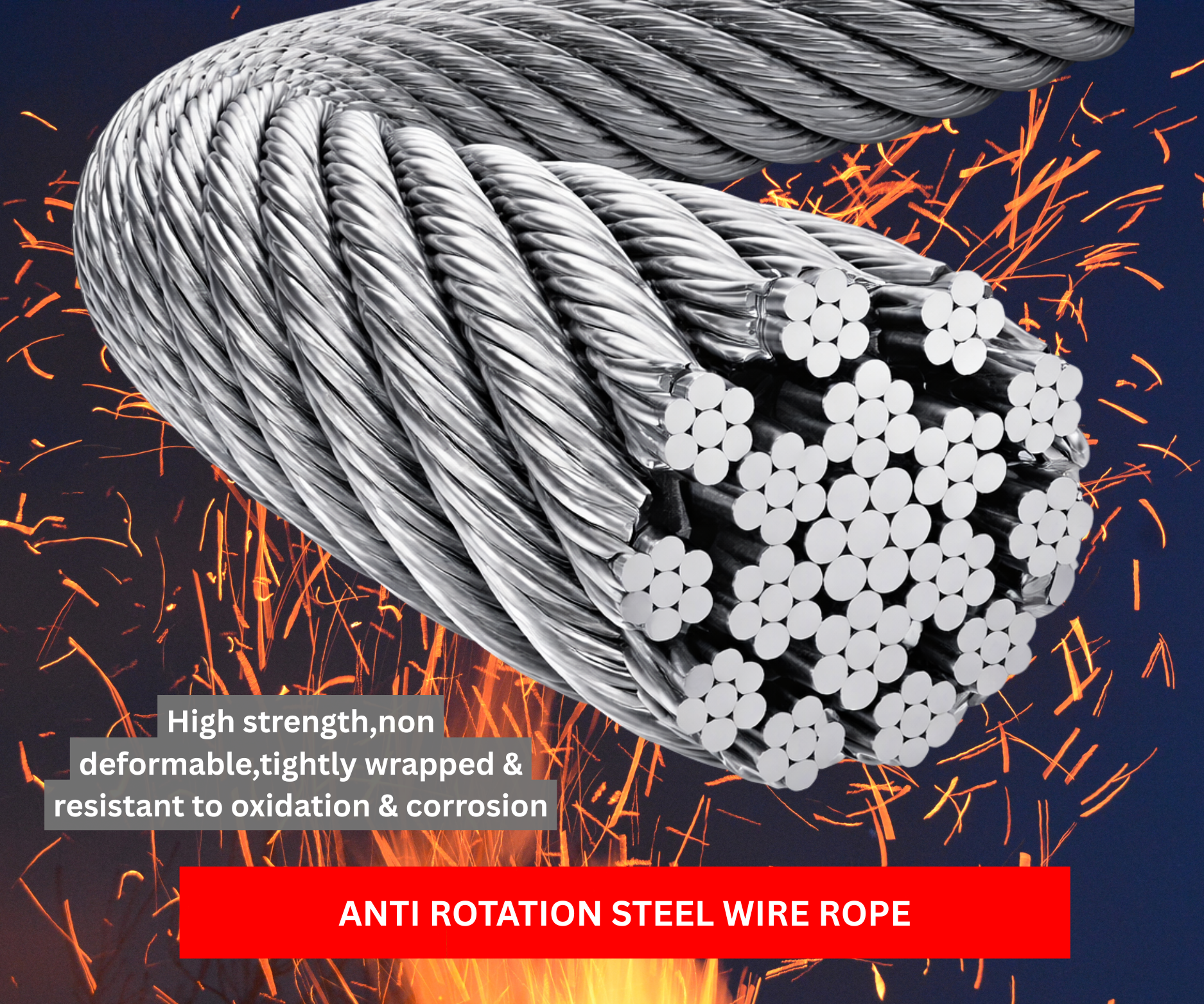

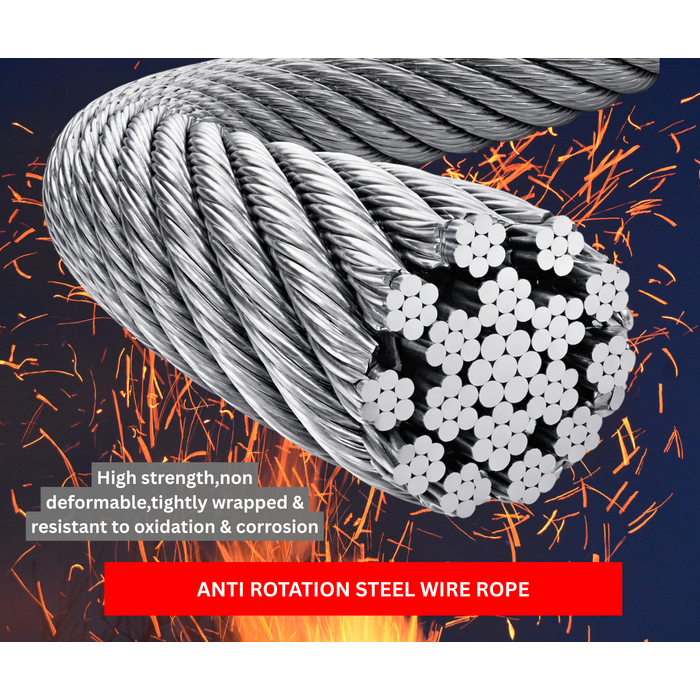

Lifting Medium | Anti-rotation galvanized steel wire rope |
Wire Rope Length | 30 m |
Wire Rope Type | Multi-strand, high-tensile, galvanized |

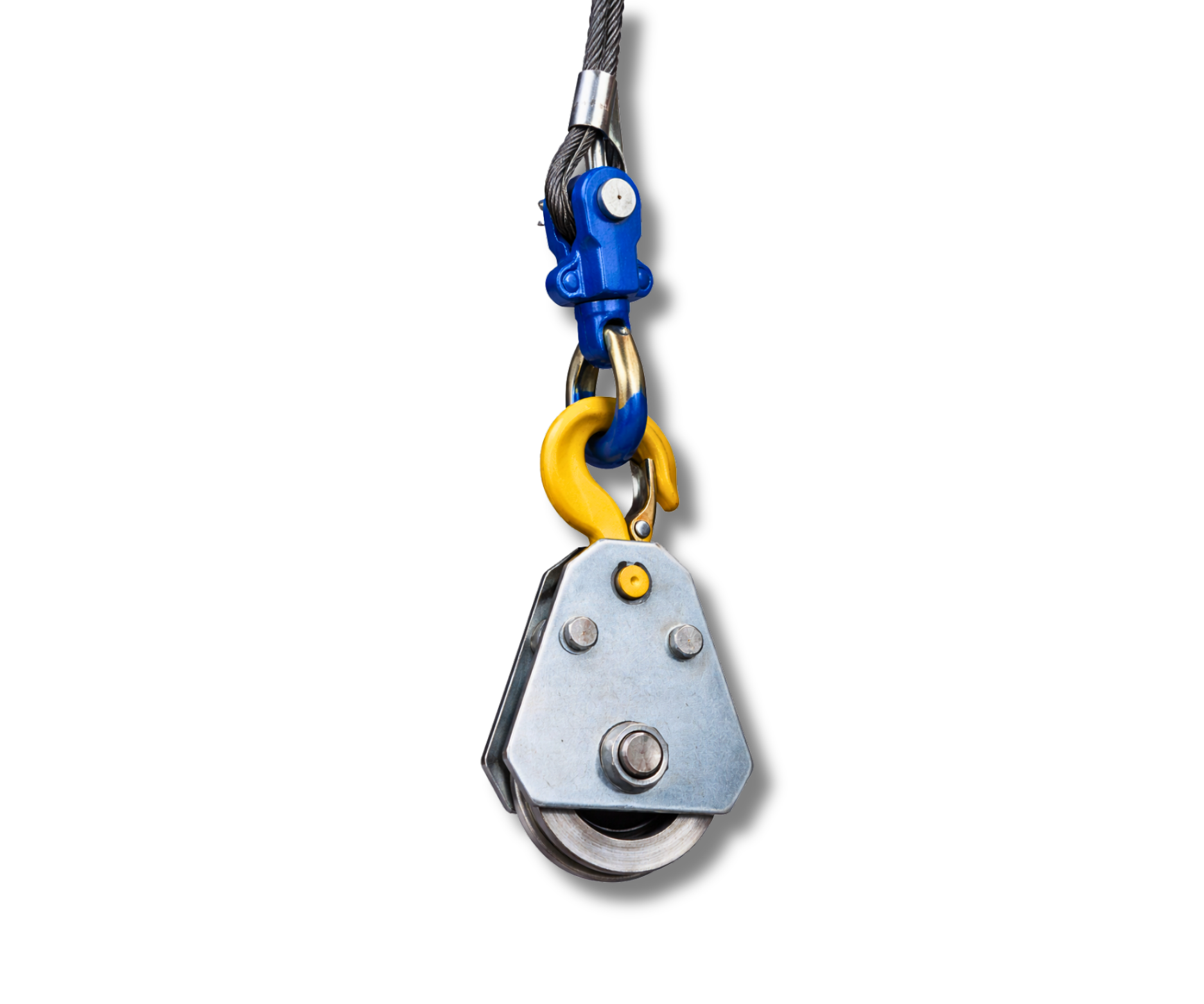

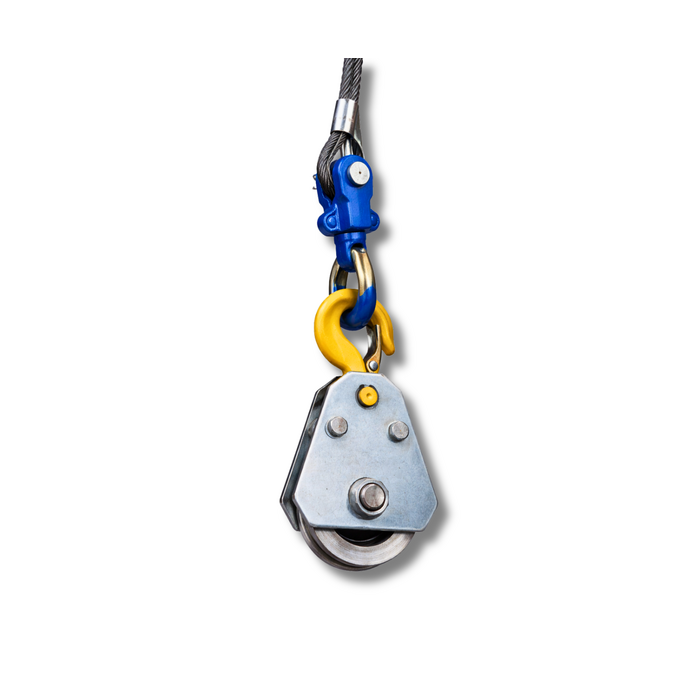

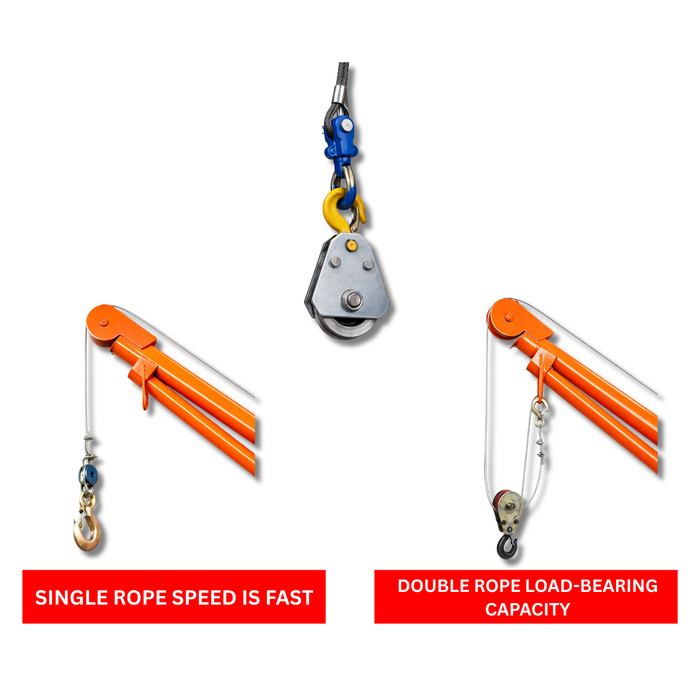

Hook Type | Heavy-duty alloy forging hook |
Hook Orientation | Self-aligning under gravity |
Load Stability | Anti-rotation design to minimise twisting |
Control Type | Pendant-style remote control handle |
Installation Type | Portable / floor-mounted |
Operating Environment | Indoor & outdoor industrial use |
Typical Applications | Warehouses, workshops, factories, construction sites |
Maintenance | Low maintenance, periodic inspection recommended |
Electric Winch Specifications
Parameter | Specification |
Winch Type | Electric wire rope winch |
Winch Model | CD-K1 Electric Winch |
Type Number | CD-K1 750–1500 |
Rated Lifting Capacity | 800 kg |
Rated Voltage | 220 V |
Frequency | 60 Hz |
Motor Power | 4.0 kW |
Lifting Height Range | 1 – 30 metres |
Lifting Speed | 7 – 14 m/min |
Control Method | Pendant-type remote control |
Wire Rope Compatibility | Anti-rotation galvanized steel wire rope |
Cooling Method | Air-cooled |
Operation Mode | Forward / Reverse lifting |
Duty Type | Continuous industrial duty |
|
|
