BETA STARIND6007-PORTABLE MINI CRANE 1000KG 30M LENGTH 220V 60HZ-D/S

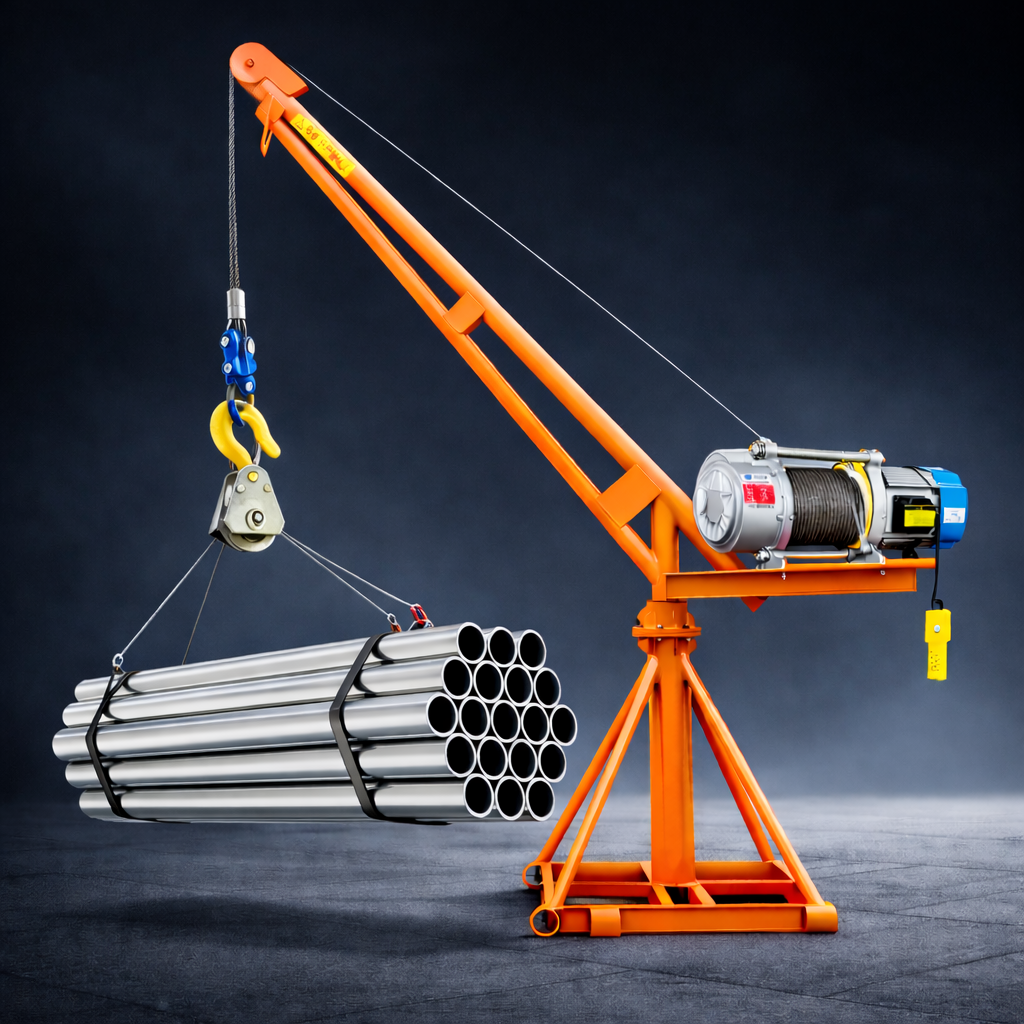

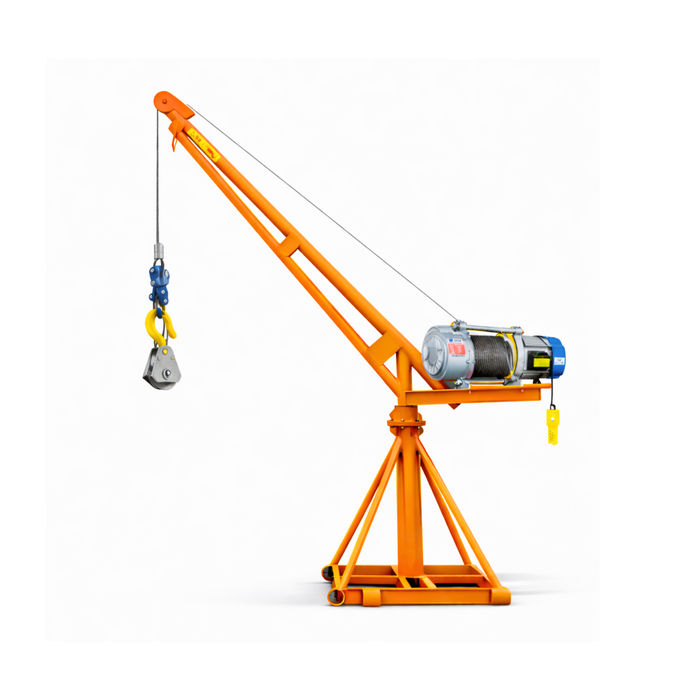

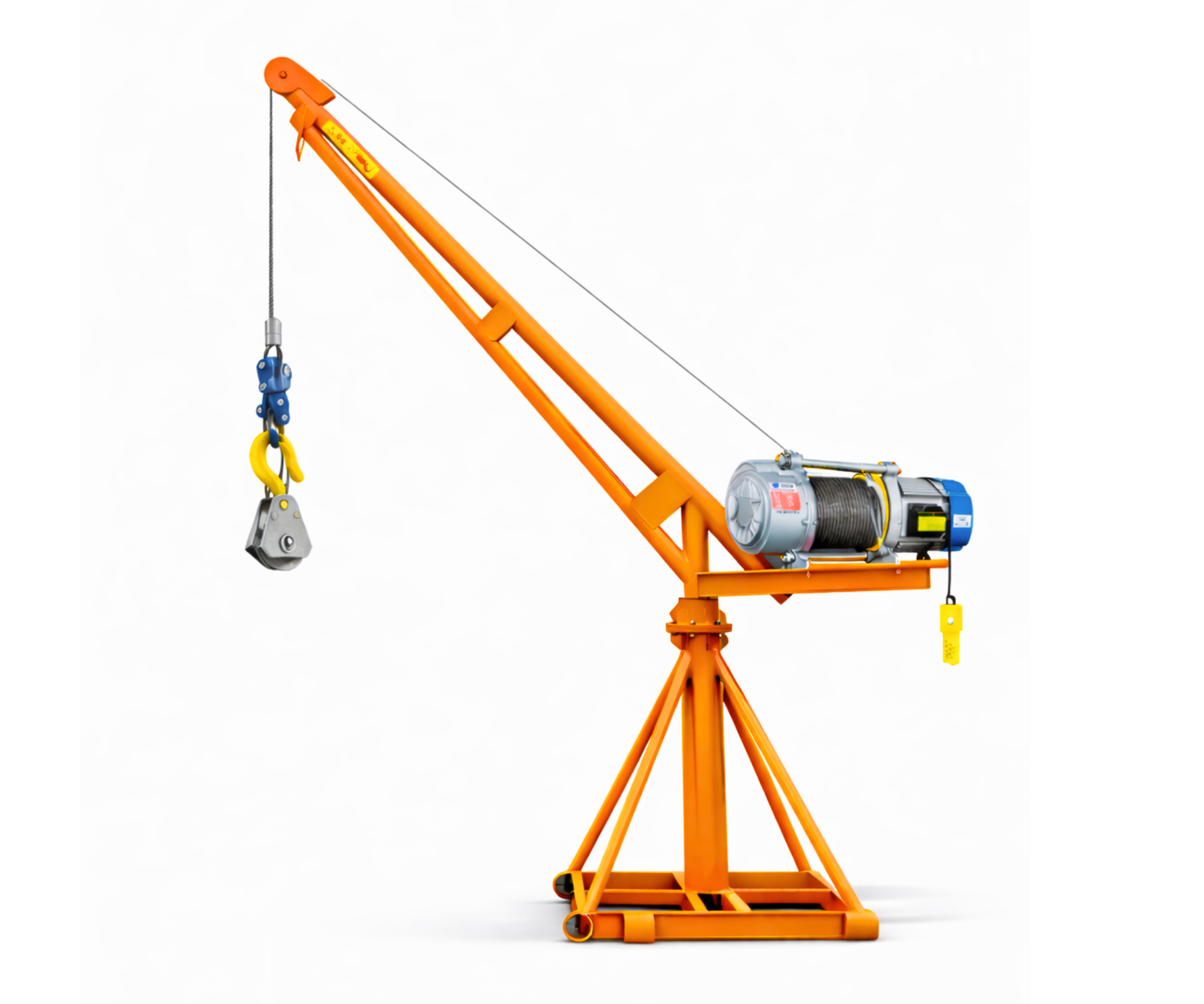

BETA STAR Portable Mini Crane – 1000 kg | 30 m | 220 V / 60 Hz (With Winch)The BETA STAR Portable Mini Crane – 1000 kg is a compact yet powerful lifting solution engineered for reliable material handling in industrial and construction environments. Combined with a CD-K1 aluminum electric hoist, the system delivers smooth and controlled lifting performance up to 30 metres, ensuring precision, safety, and durability.

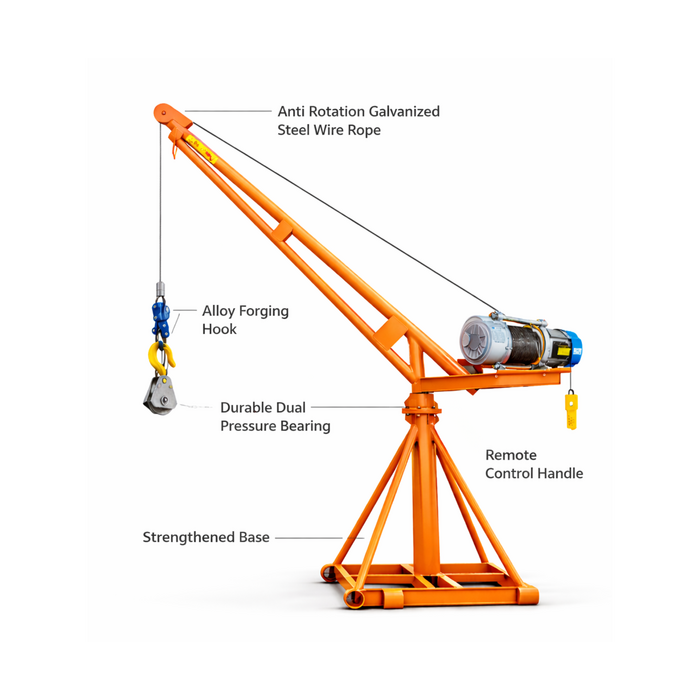

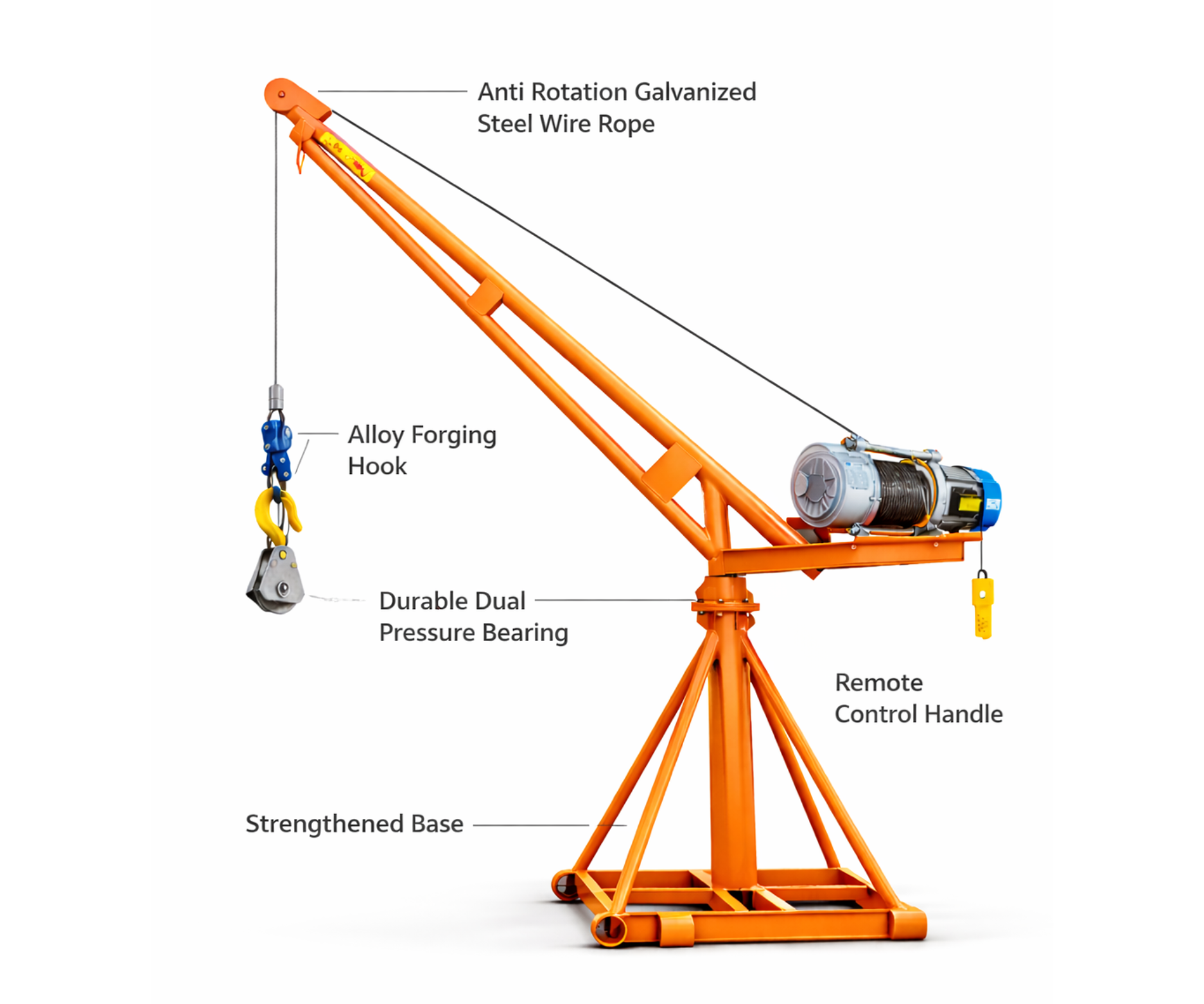

Featuring a strengthened base structure, anti-rotation galvanized steel wire rope, forged alloy hook, and dual pressure bearing rotation system, this crane provides excellent stability and smooth slewing during operation. Its portable design makes it ideal for workshops, warehouses, factories, and on-site lifting tasks.
Crane Specifications
Parameter | Specification |
Brand Name | BETA STAR |
Product Name | Portable Mini Crane |
Crane Type | Portable floor-mounted jib crane |
Rated Load Capacity | 1000 kg (1 Ton) |
Maximum Lifting Height | 30 metres |
Jib Configuration | Angled jib arm |

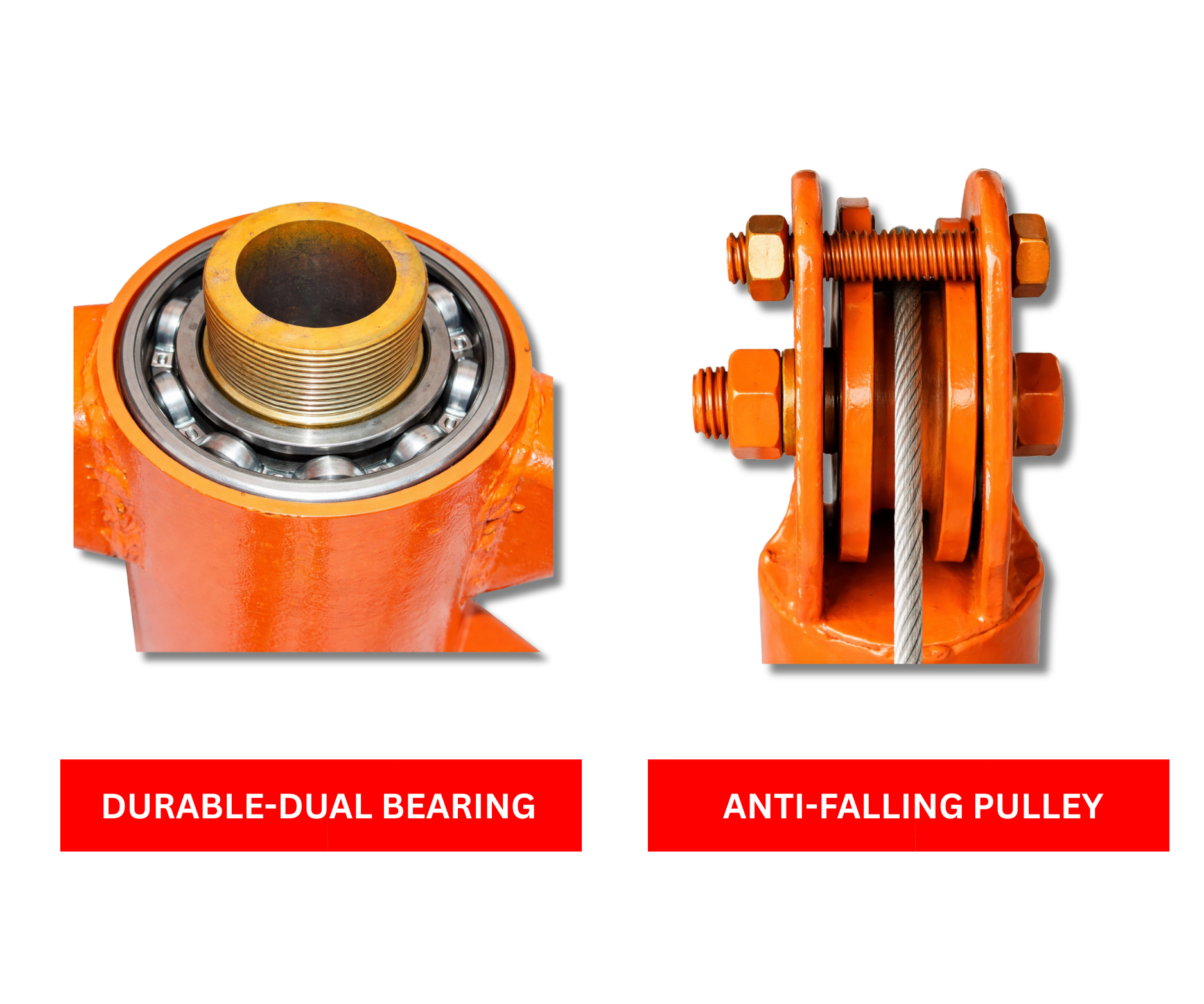

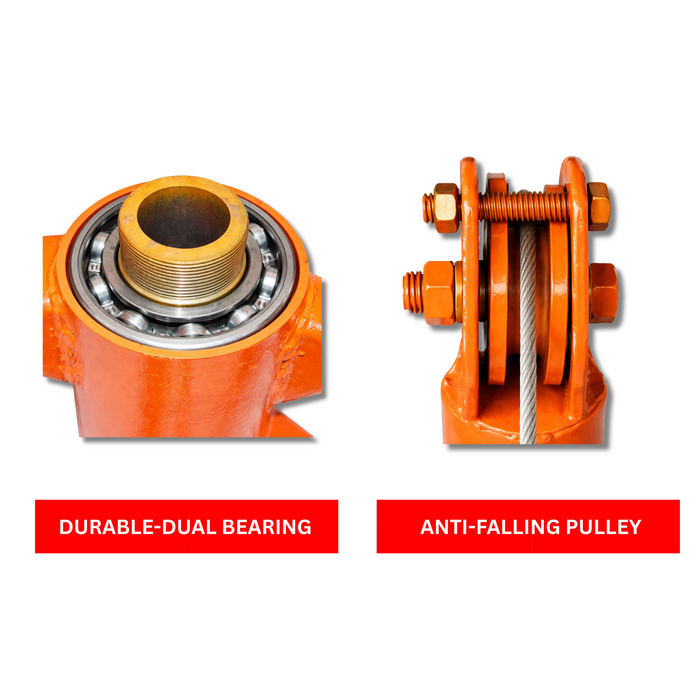

Rotation Mechanism | Durable dual pressure bearing |
Rotation Type | Smooth manual slewing |
Mast Type | Heavy-duty vertical steel mast |
Support Structure | Reinforced triangular steel bracing |

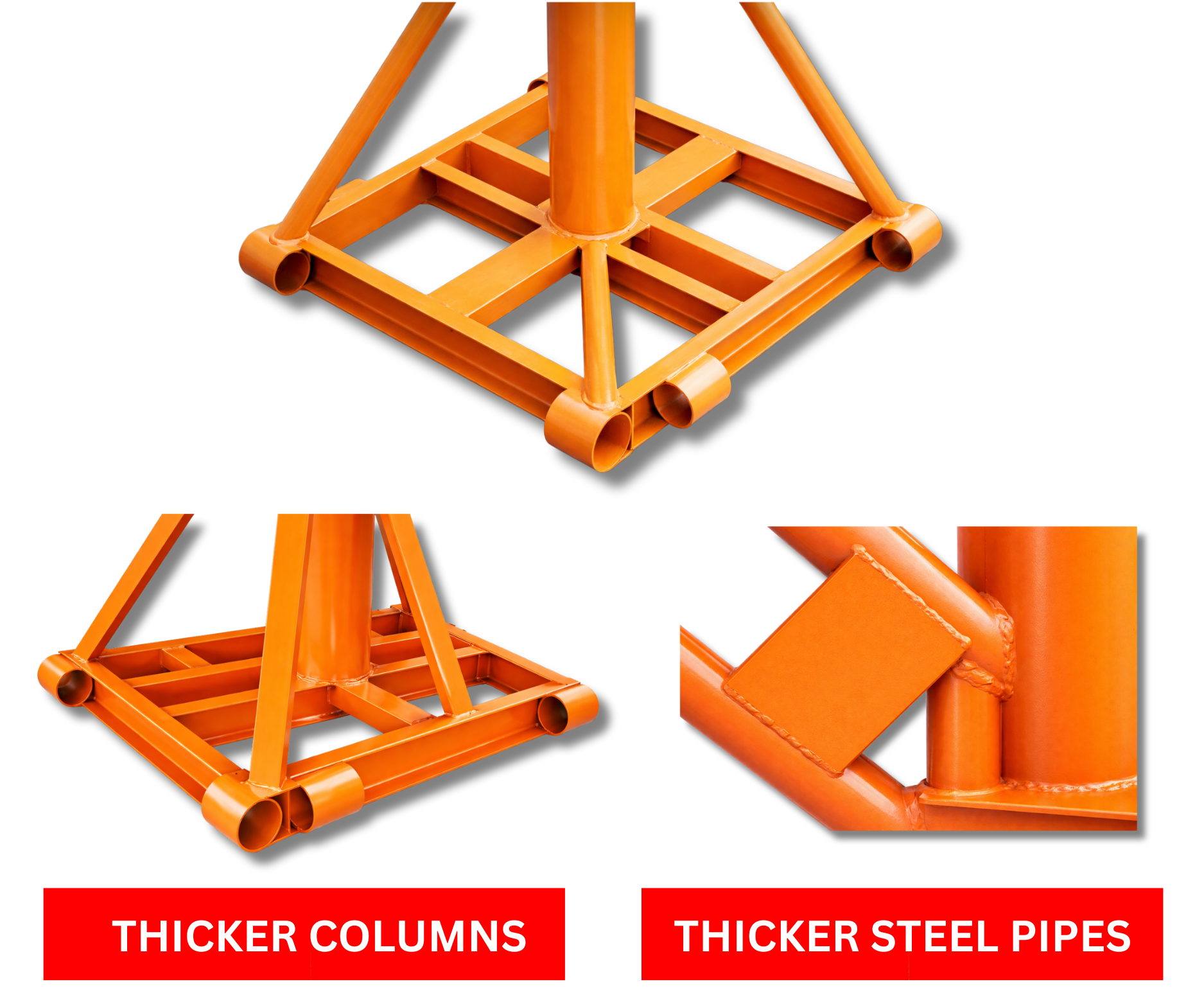

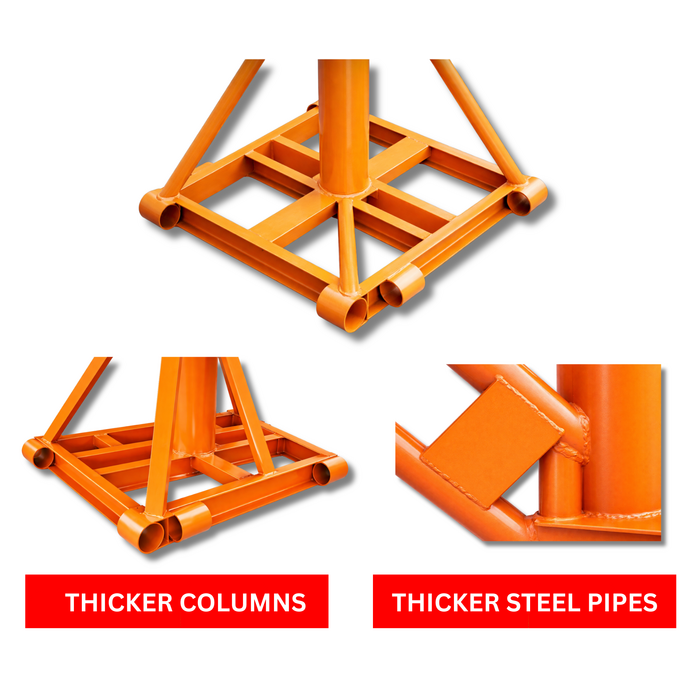

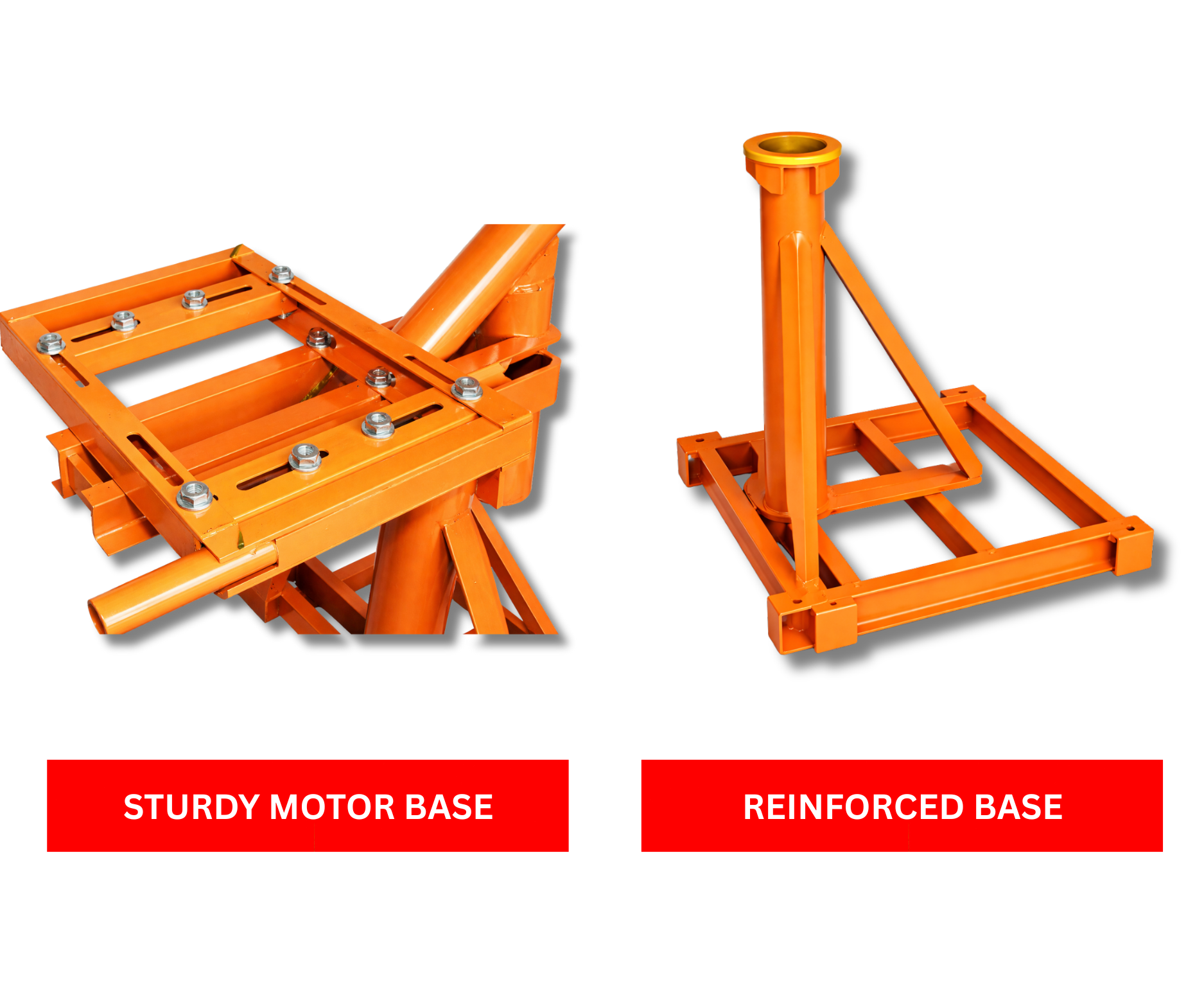

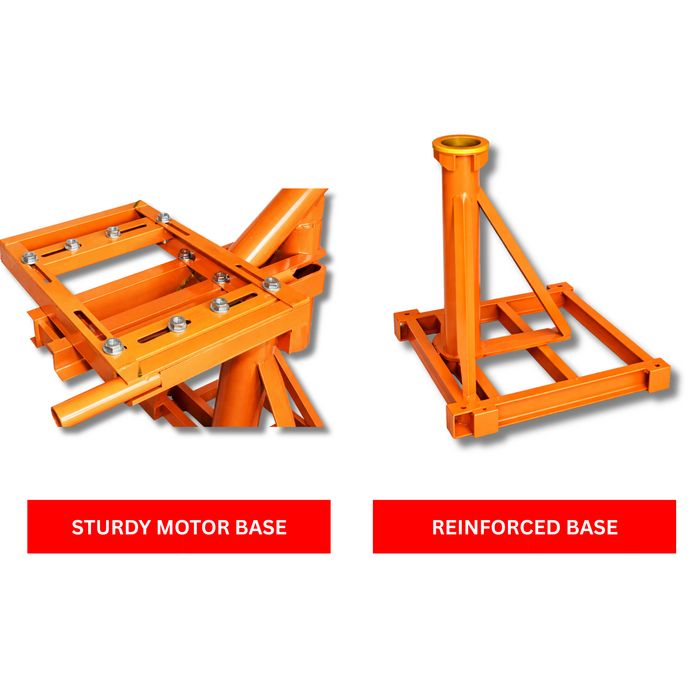

Base Structure | Strengthened steel base frame |
Base Design | Wide footprint for enhanced stability |
Construction Material | Heavy-duty structural steel |
Surface Finish | Industrial powder-coated (orange) |

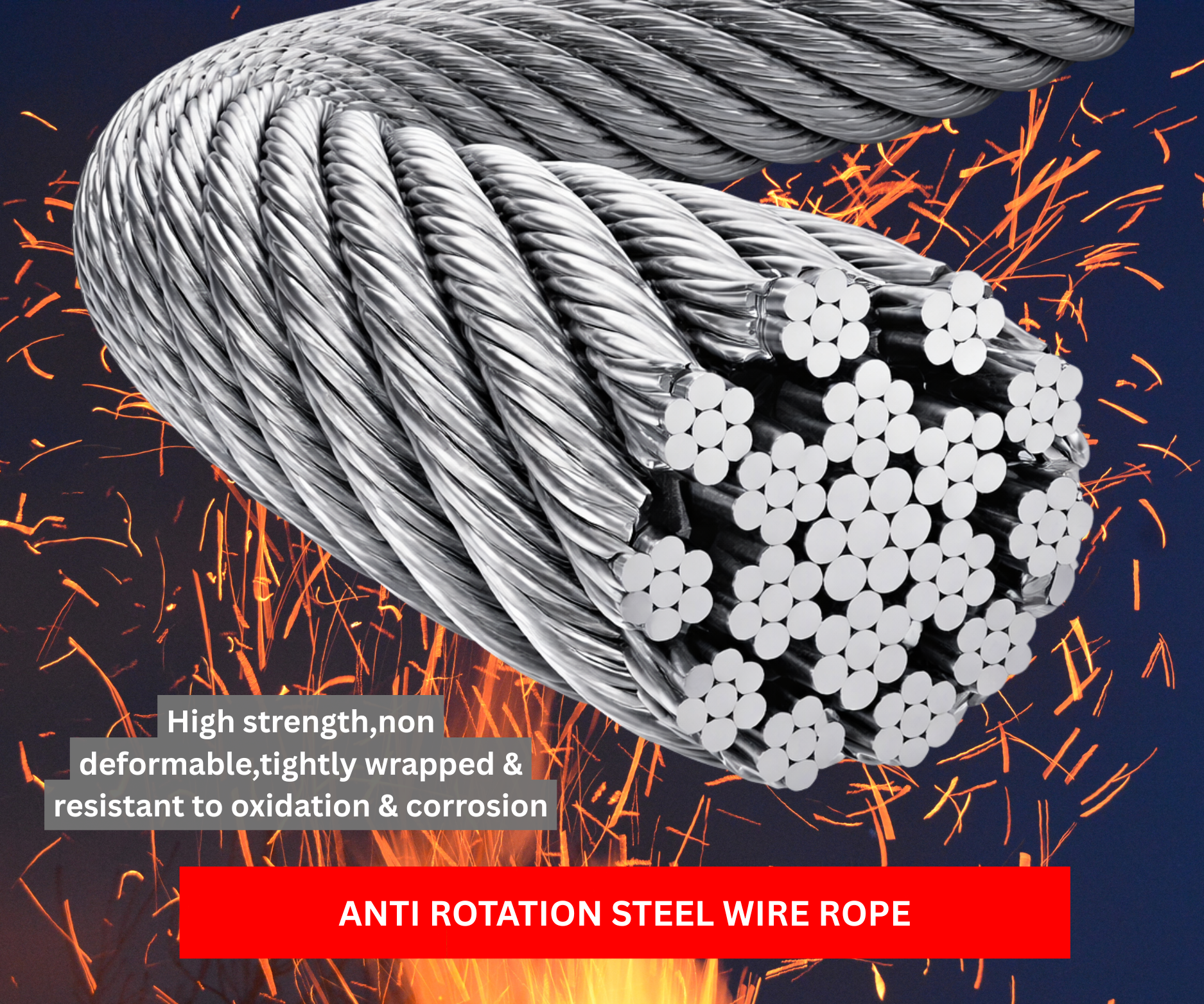

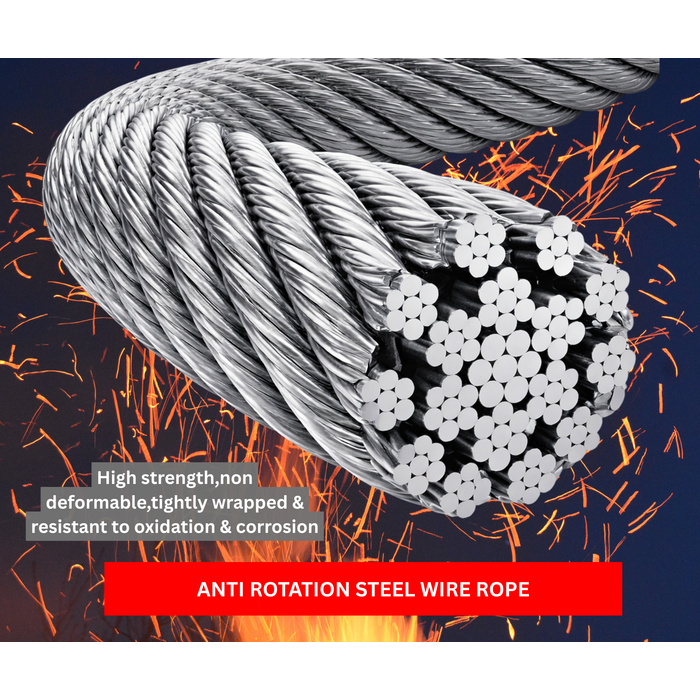

Lifting Medium | Anti-rotation galvanized steel wire rope |
Wire Rope Length | 30 m |
Wire Rope Type | Multi-strand, high-tensile, galvanized |

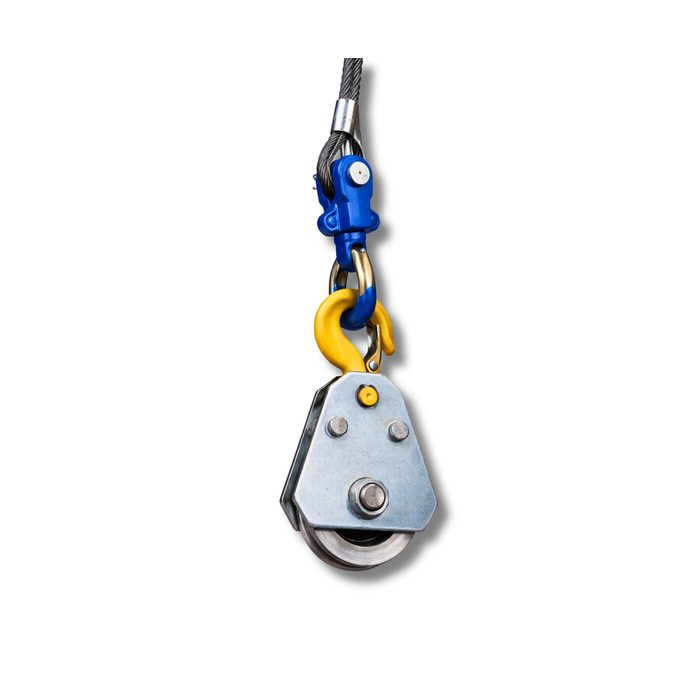

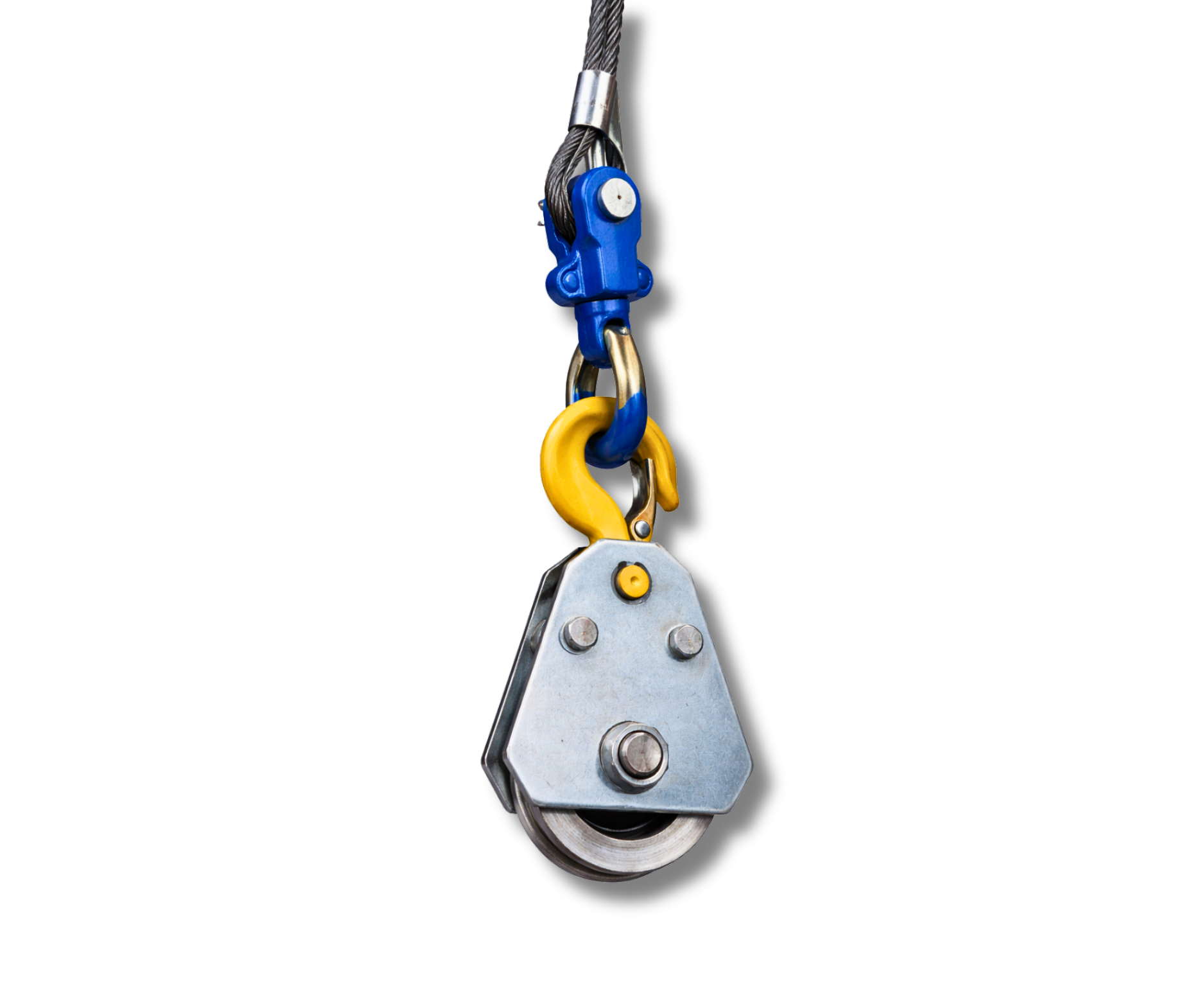

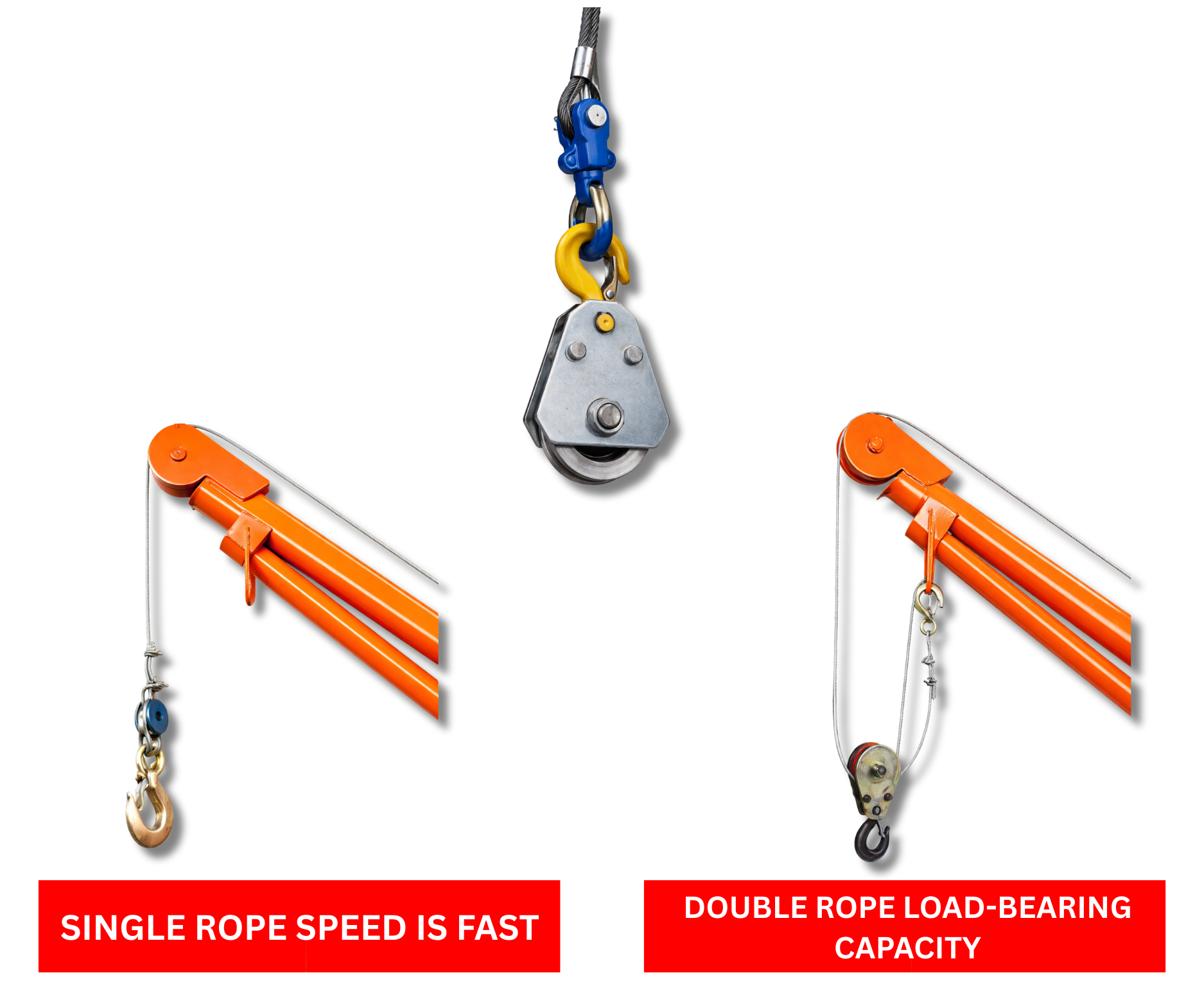

Hook Type | Heavy-duty alloy forging hook |
Hook Orientation | Self-aligning under gravity |
Load Stability | Anti-rotation design to minimise twisting |
Control Type | Pendant-style remote control handle |
Installation Type | Portable / floor-mounted |
Operating Environment | Indoor & outdoor industrial use |

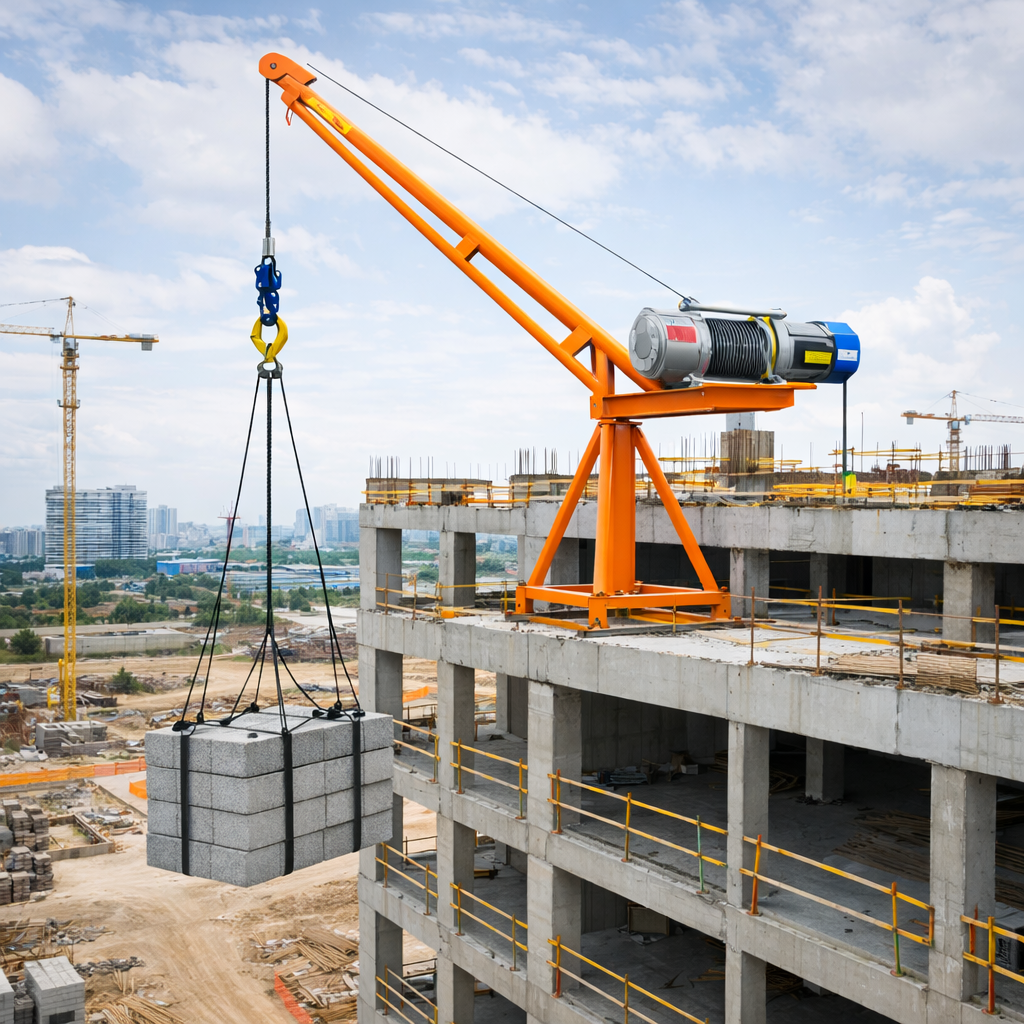

Typical Applications | Warehouses, workshops, factories, construction sites |
Maintenance | Low maintenance, periodic inspection recommended |
Electric Winch / Hoist Specifications
Parameter | Specification |
Winch / Hoist Type | Aluminum electric hoist |
Winch Model | CD-K1 |
Hoist Capacity Range | 1000 – 2000 kg |
Rated Working Load (Configured) | 1000 kg |
Rated Voltage | 220 V |
Frequency | 60 Hz |
Motor Power | 3.0 kW |
Lifting Height Capability | 1 – 100 metres |
Configured Lifting Height | 30 metres |
Lifting Speed | 3 – 6 m/min |
Wire Rope Compatibility | Anti-rotation galvanized steel wire rope |
Control Method | Pendant-type remote control |
Operation Mode | Forward / Reverse lifting |
Cooling Method | Air-cooled |
Duty Type | Continuous industrial duty |
