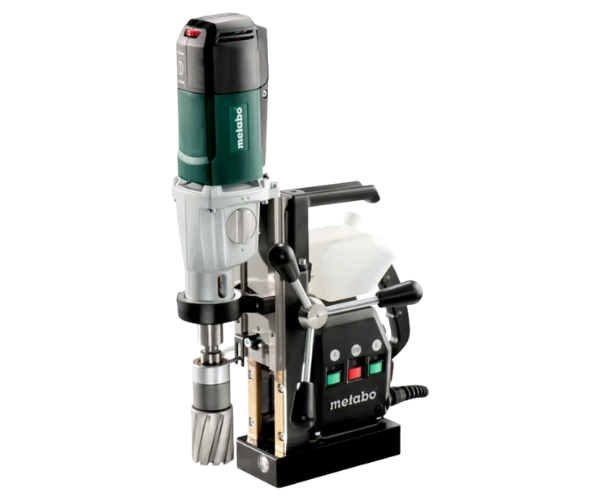

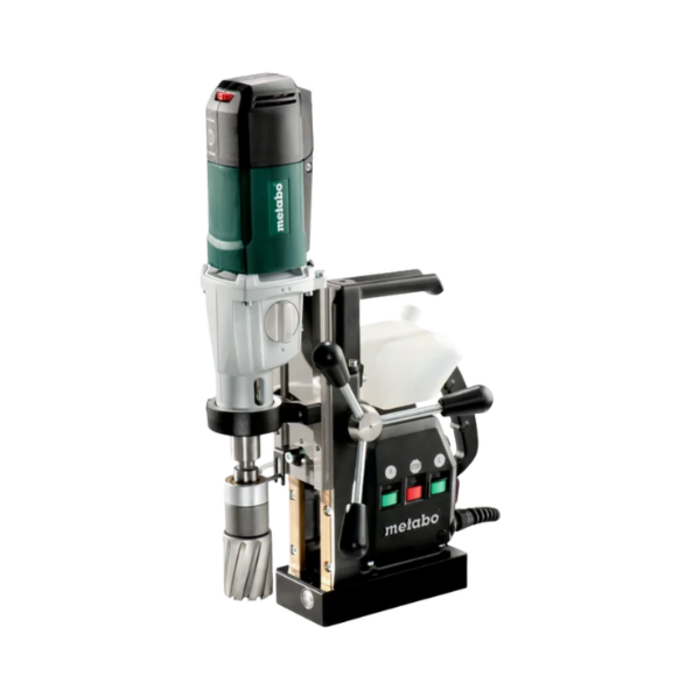

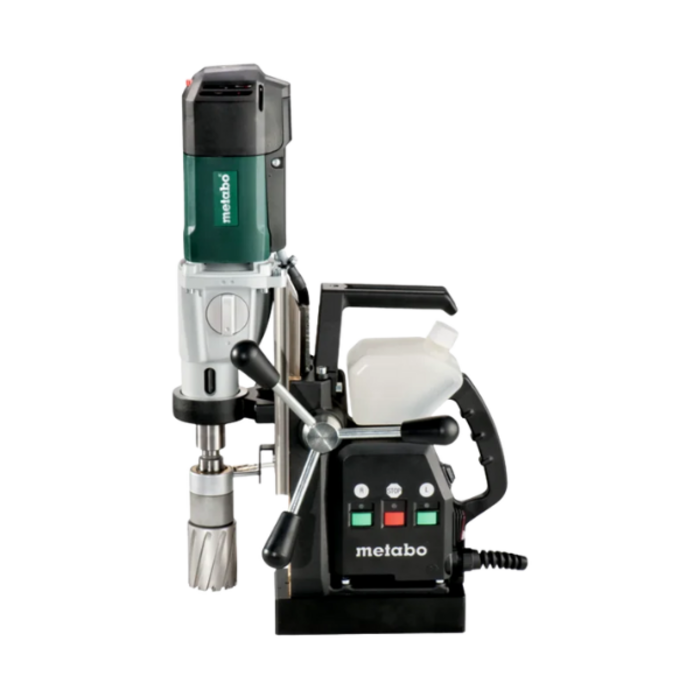

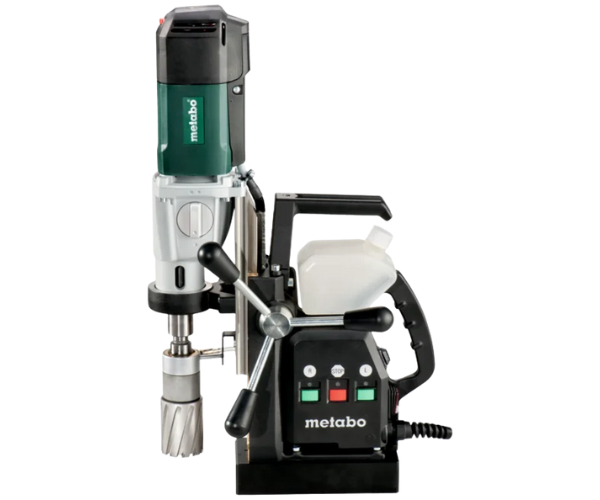

• Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks

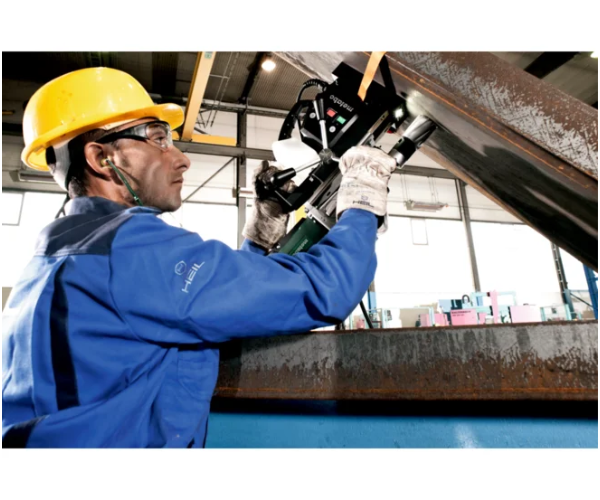

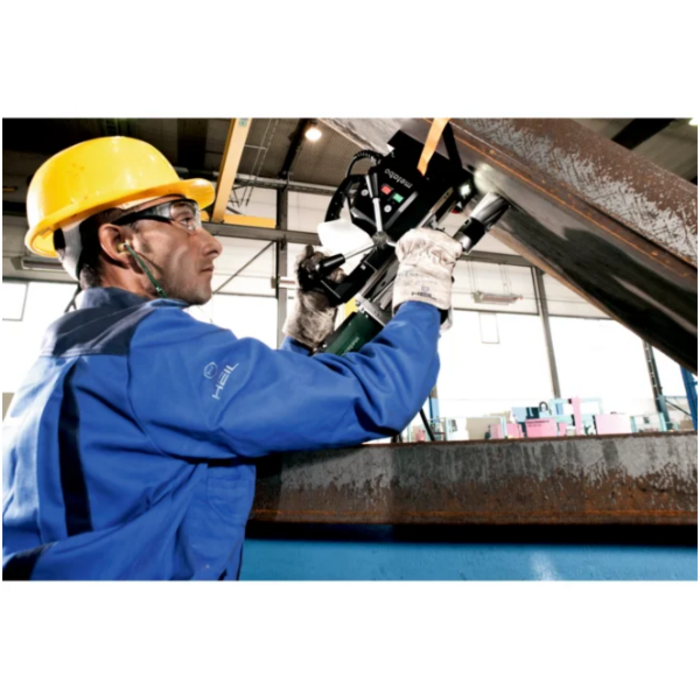

• Magnetic base with high holding power permits working on vertical surfaces and overhead
• Metabo Long-life motor with patented dust protection for long service life
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Clockwise/anti-clockwise rotation with thread cutter
• Durable two-speed gearbox with oil bath lubrication for ideal speeds
• Integrated coolant container for easy to dose internal cooling of the core drill
• Bright LED light for easy alignment in poor light conditions
• Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
• Protective circuit starts motor only if the magnet is activated
• Overload protection: protects the motor from overheating
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable slide for comfortable tool change
• Handle for easy carrying and lifting
• Resistant mains cable (5 m) with rubber shroud

KEY FIGURES

Rated input power	1200 W
Output power	620 W
Max. drill-Ø with core drill	50 mm / 2 "
Max. drill-Ø with spiral drill	20 mm / 3/4 "
Maximum drilling depth	50 mm / 2 "
Thread cutting	M 16
No-load speeds	100 - 250 / 200 - 450 rpm
Speeds at rated load	250 / 450 rpm
Tool holder	Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight	12.7 kg / 28 lbs
Cable length	5 m / 16 ft
Torque	90 / 50 Nm // 797 / 443 in-lbs
Max. depth of feed	160 mm / 6 5/16 "
Max. magnetic holding force	12250 N

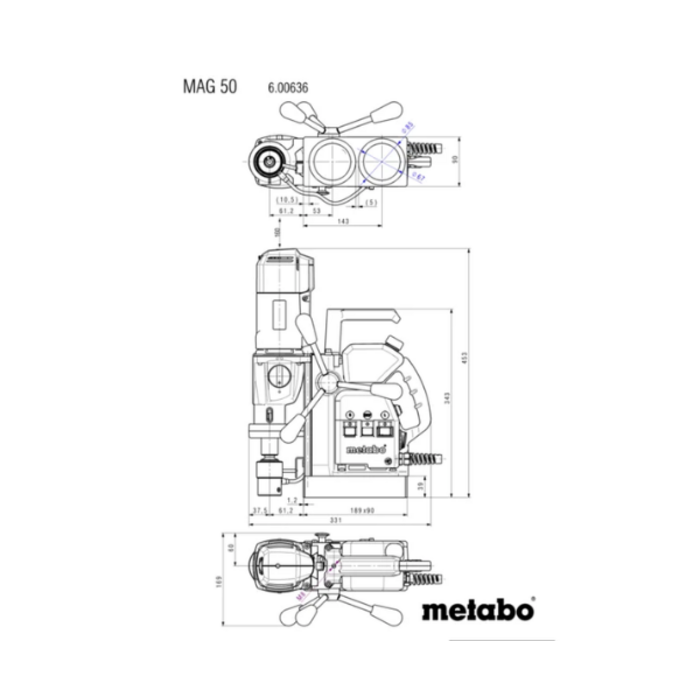

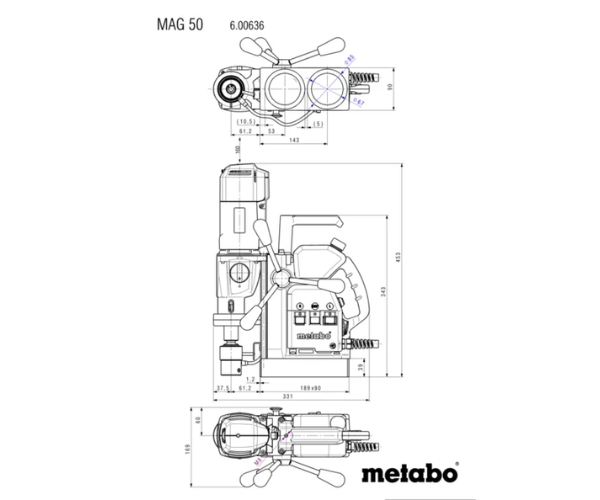

Dimensions of the magnet base	90 x 190 mm // 3 9/16 x 7 1/2 "
Height carriage lowest position	457 mm / 18 "
Height carriage topmost position	610 mm / 24 "

VIBRATION

Drilling in metal	2.5 m/s²
Uncertainty of measurement K	1.5 m/s²

NOISE EMISSION

Sound pressure level	79 dB(A)
Sound power level (LwA)	92 dB(A)
Uncertainty of measurement K	3 dB(A)
