Description

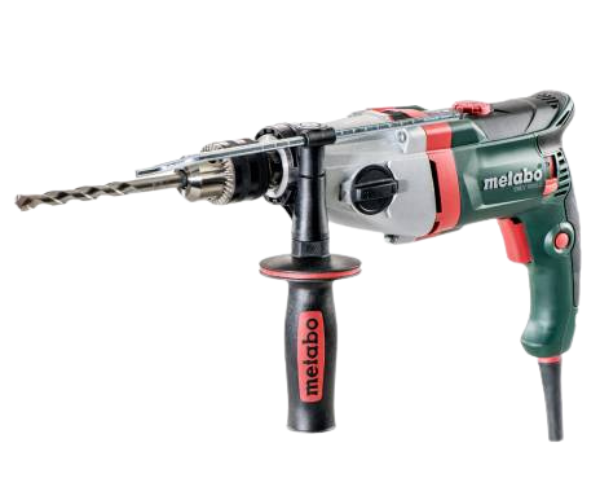

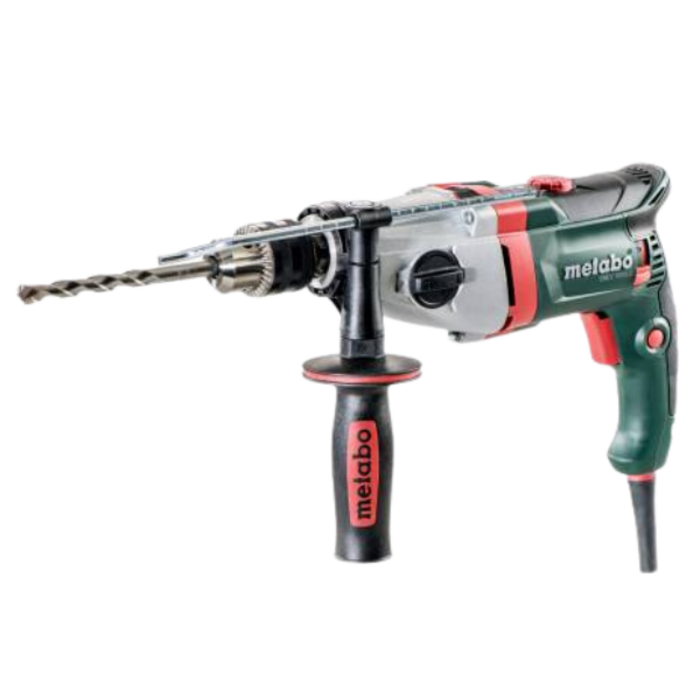

SBEV 1000-2 IMPACT DRILL/ 600783620

Powerful two-speed impact drill for versatile drilling at a constant speed under load
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for working at customized speeds to suit the application material and speeds that remain almost constant, even under load

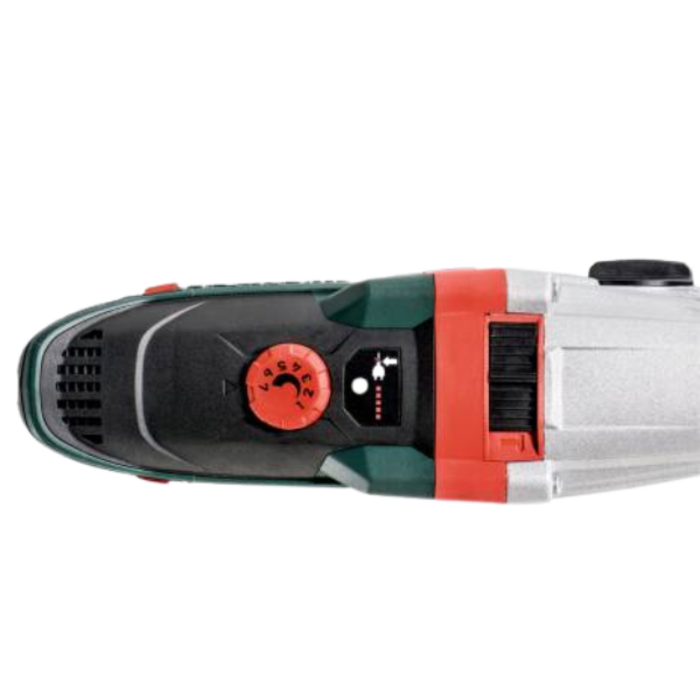

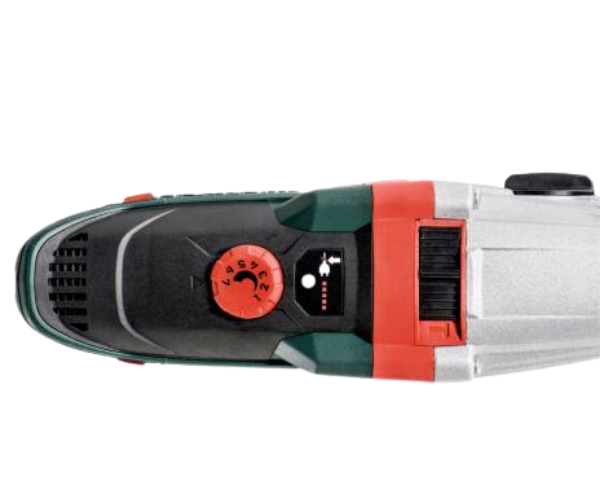

Thumbwheel for speed preselection
Robust die cast aluminum gear housing for optimum heat dissipation and durability
Rotating carbon brush bridge for maximum power even when rotating counter-clockwise, e.g. when removing jammed screws
Metabo Long-life motor with dust protection for long service life
Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly.
Forward and reverse rotation

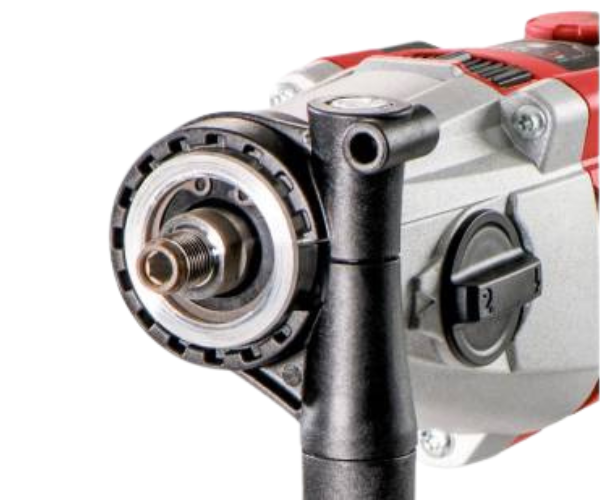

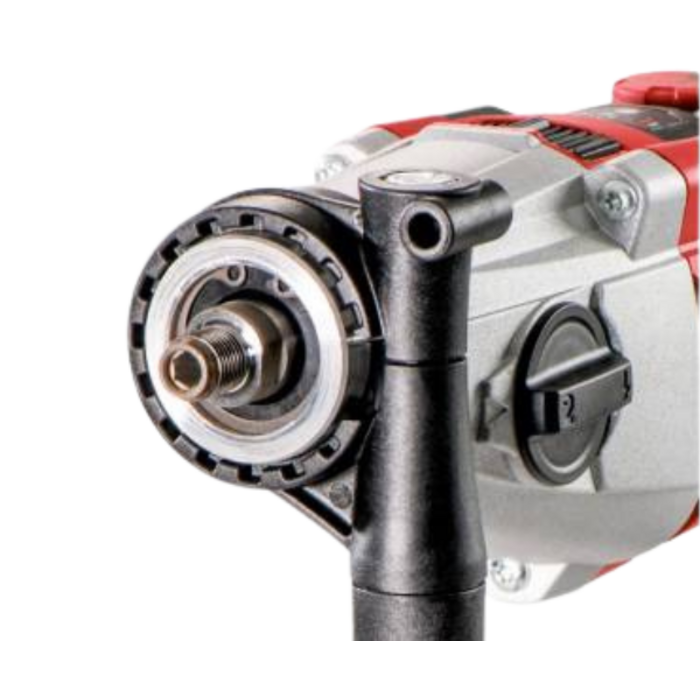

Spindle with hexagonal recess for screwdriver bits for working without chuck
Restart protection: prevents unintentional start-up after power supply interruption
Cable-protecting ball joint for the best freedom of motion when working
With metaBOX, the smart solution for transportation and storage

Parameters

Rated input power

1010 W

Amps

9 AMPS

Output power

560 W

Maximum torque

354 / 124 in-lbs

Max. capacity in masonry

7/8 "

Max. capacity in concrete

25/32 "

Max. capacity in steel

5/8 / 3/8 "

Max. capacity in soft wood

1 9/16 / 1 "

No-load speed

0 - 1000 / 0 - 2800 RPM

Speed at rated load

1000 / 2800 RPM

Maximum impact rate

53200 BPM

Gears

2

Chuck capacity

1/16 - 1/2 "

Collar diameter

1 11/16 "

Drill spindle with hexagonal recess

1/4 "

Drill spindle thread

1/2 " - 20 UNF

Chuck clamping type

Geared Chuck

Weight (without power cable)

6 lbs

Cable length

13 ft

Vibration

Drilling in metal

4.2 m/s²

Uncertainty of measurement K

1.5 m/s²

Impact drilling concrete

17 m/s²

Uncertainty of measurement K

1.5 m/s²

Noise emission

Sound pressure level

103 dB(A)

Sound power level (LwA)

114 dB(A)

Uncertainty of measurement K

3 dB(A)

METABOIND6012/ SBEV 1000-2 IMPACT DRILL 1/2'' 110V 9.0AMP/ 600783620
