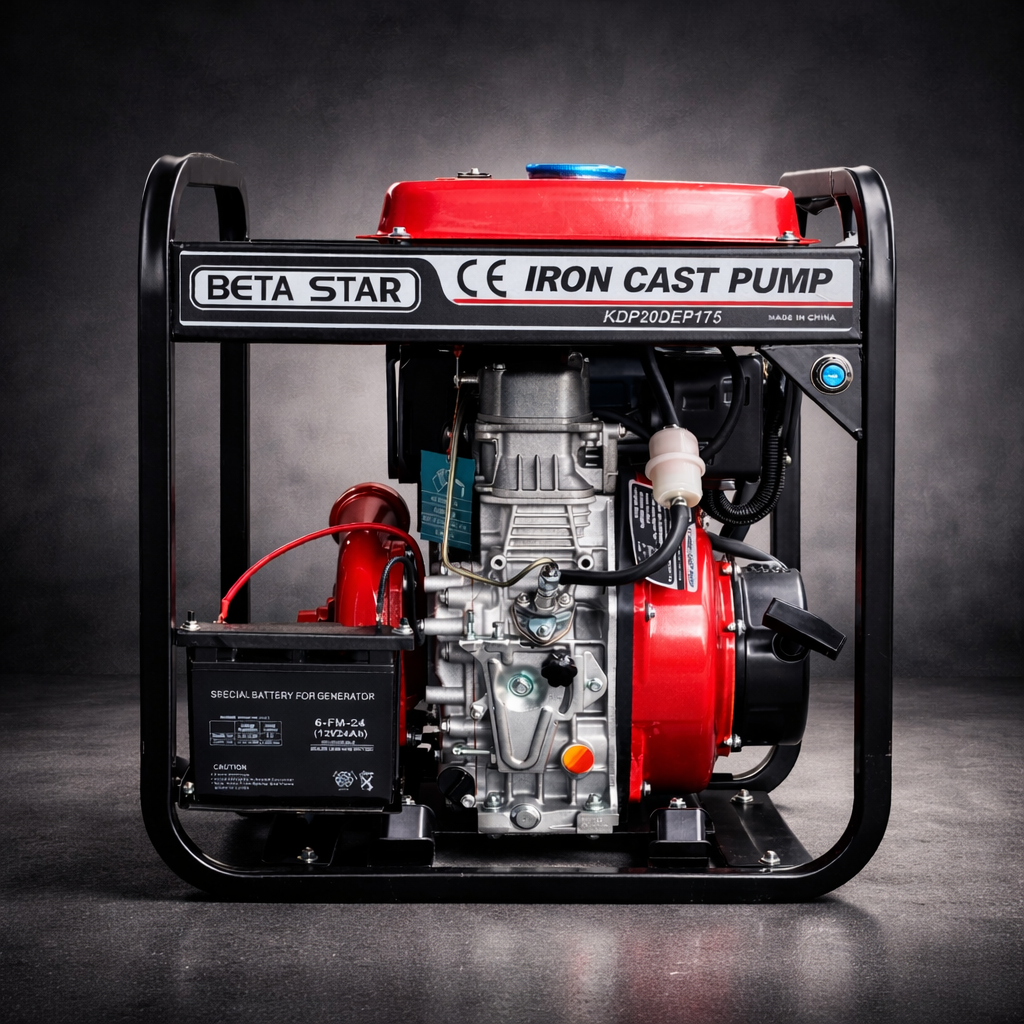

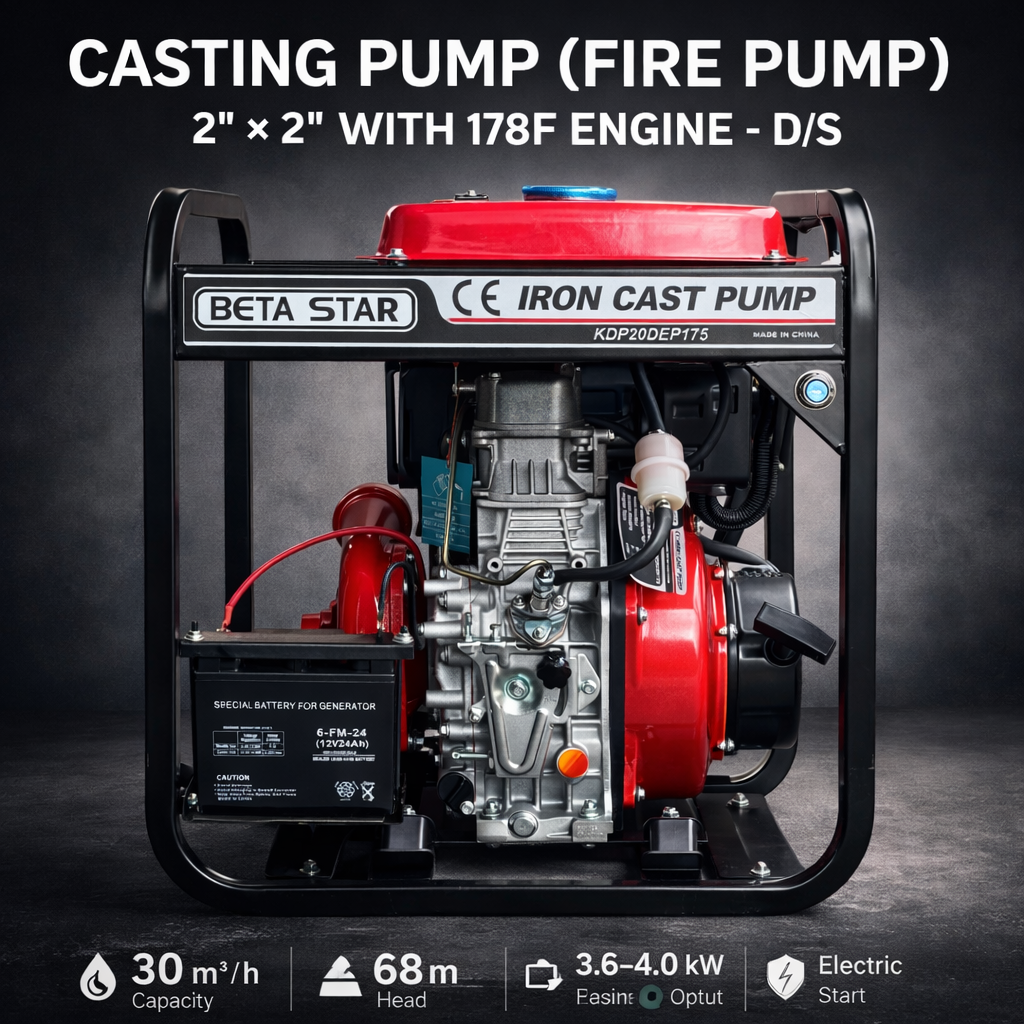

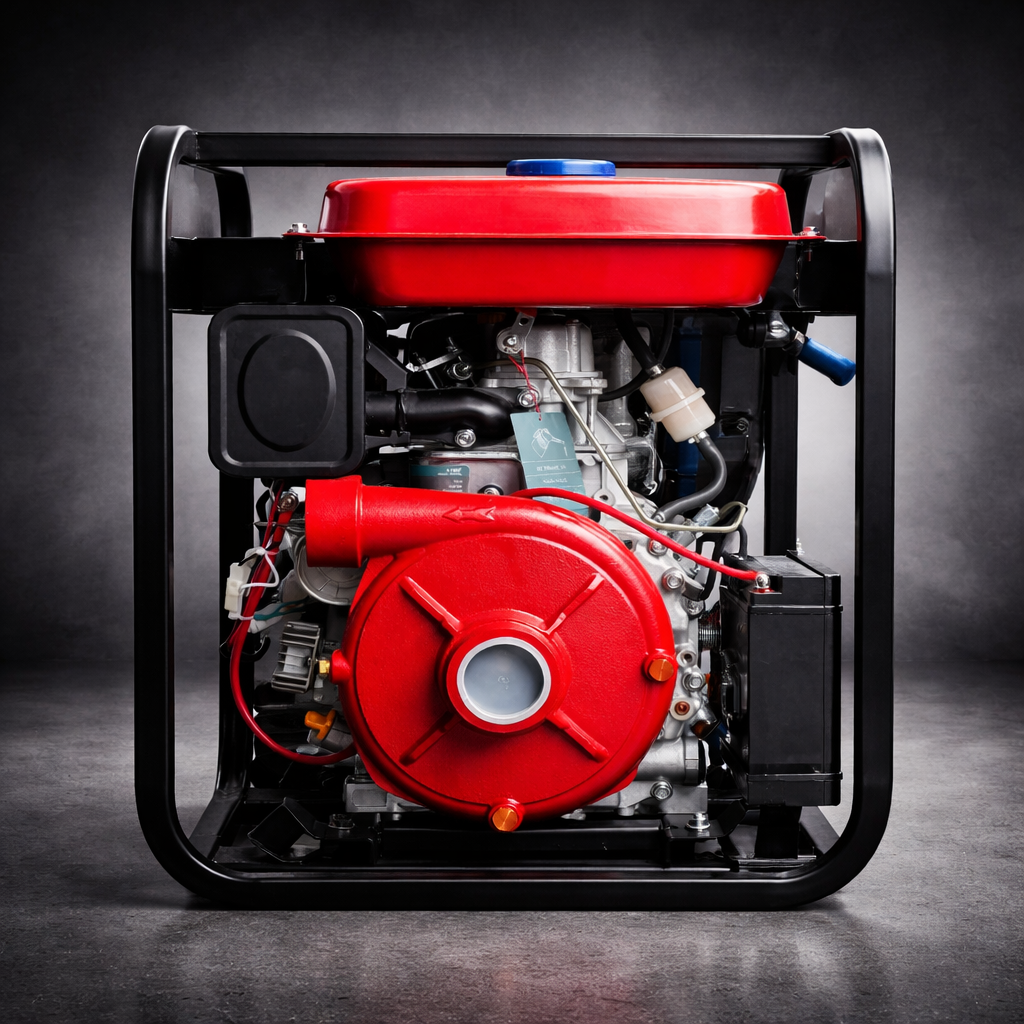

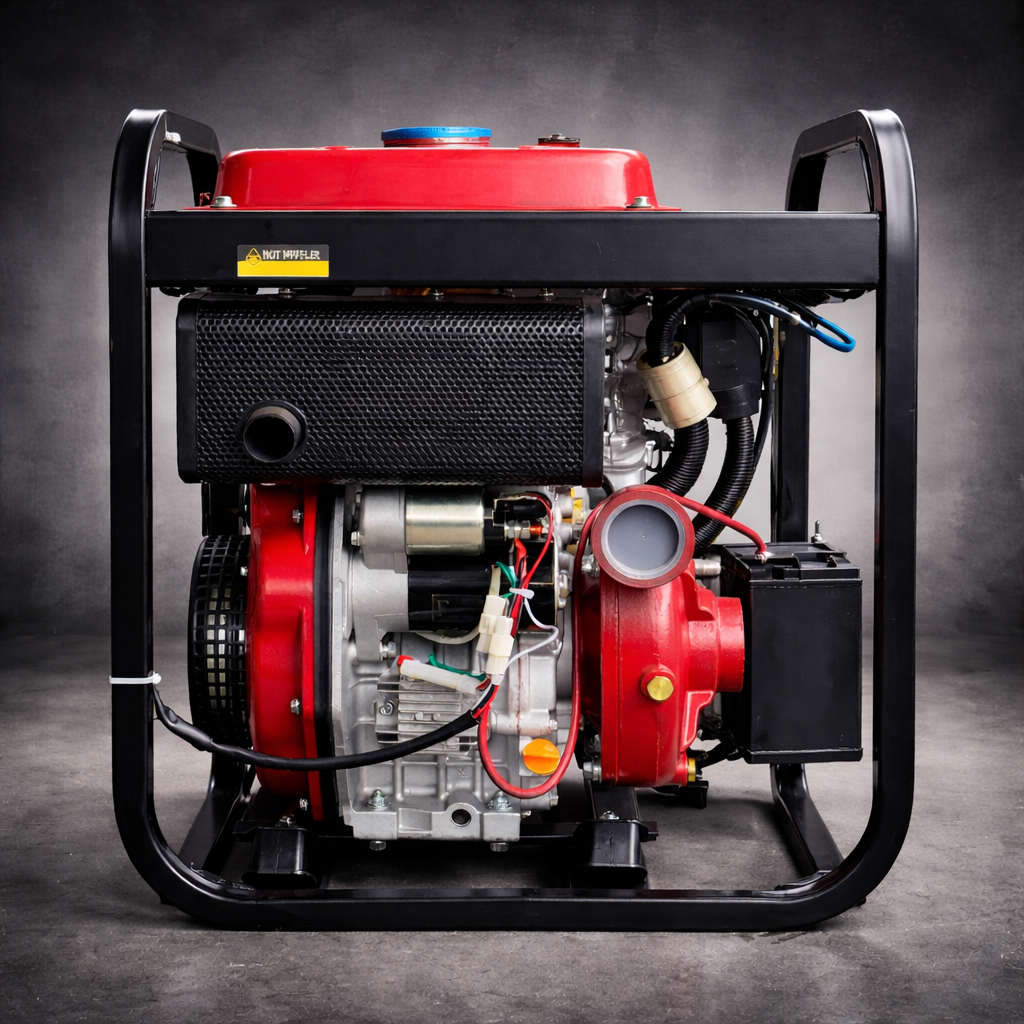

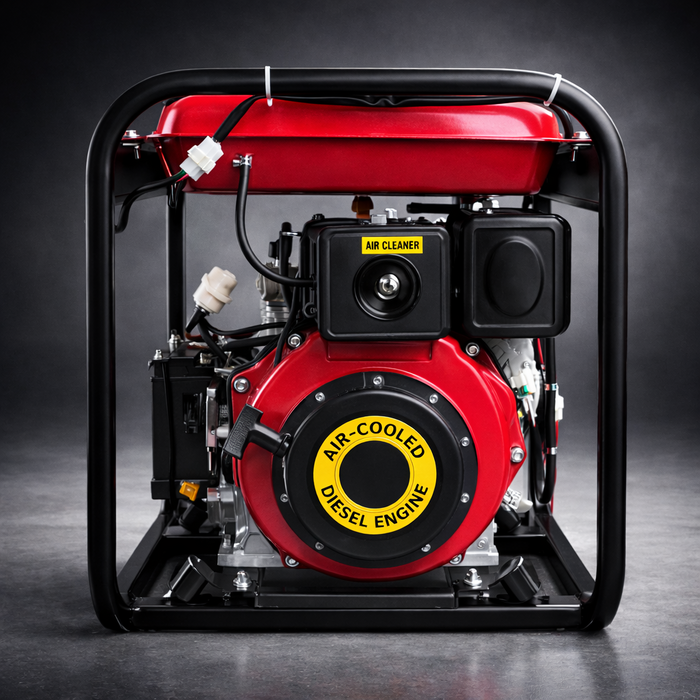

BETA STAR 2" × 2" DIESEL FIRE PUMP

Heavy-Duty Cast Iron Water Transfer System with 178F Engine

Engineered for high-pressure performance and industrial durability, the Beta Star 2" × 2" Diesel Fire Pump is powered by the robust 178F air-cooled diesel engine, delivering consistent torque and dependable operation in agricultural, emergency, and construction environments.

Designed for demanding water transfer applications, this pump provides strong head pressure and reliable flow for firefighting support, irrigation, dewatering, and flood control.

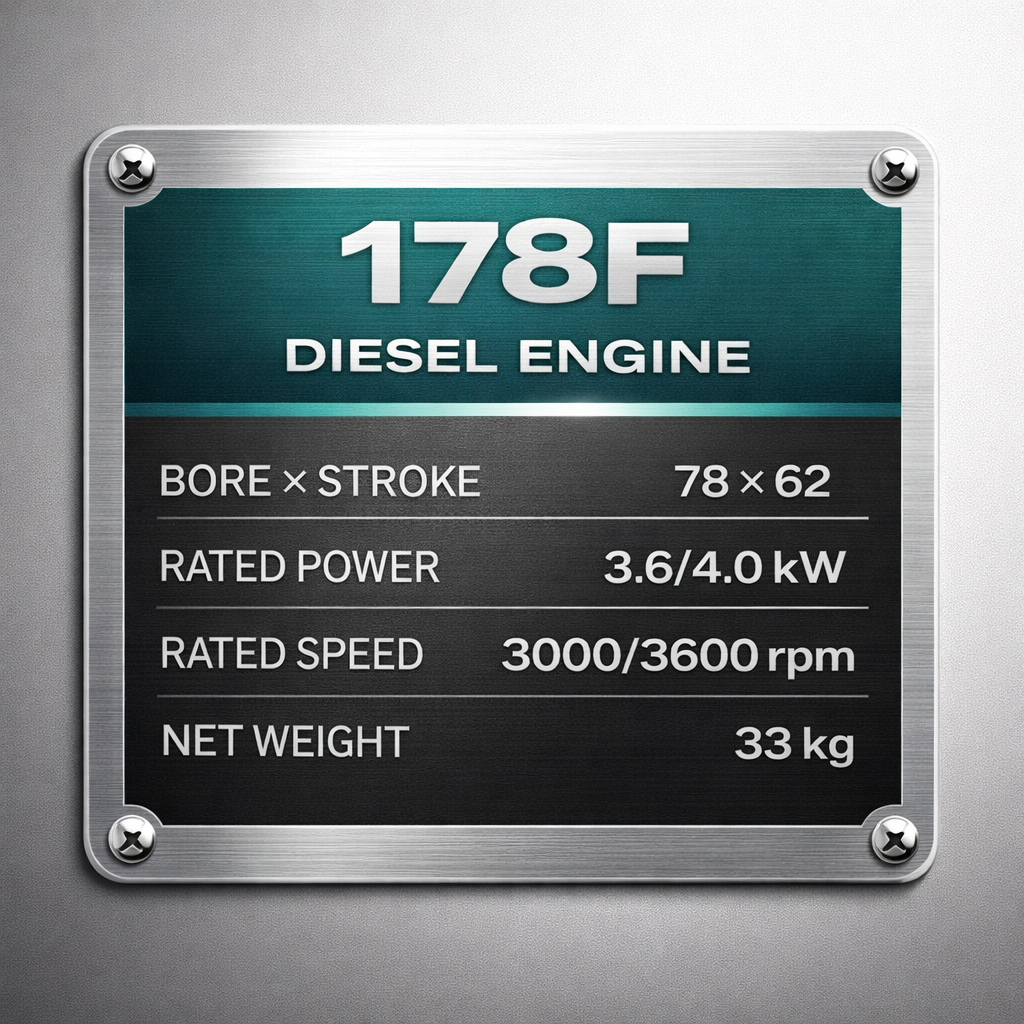

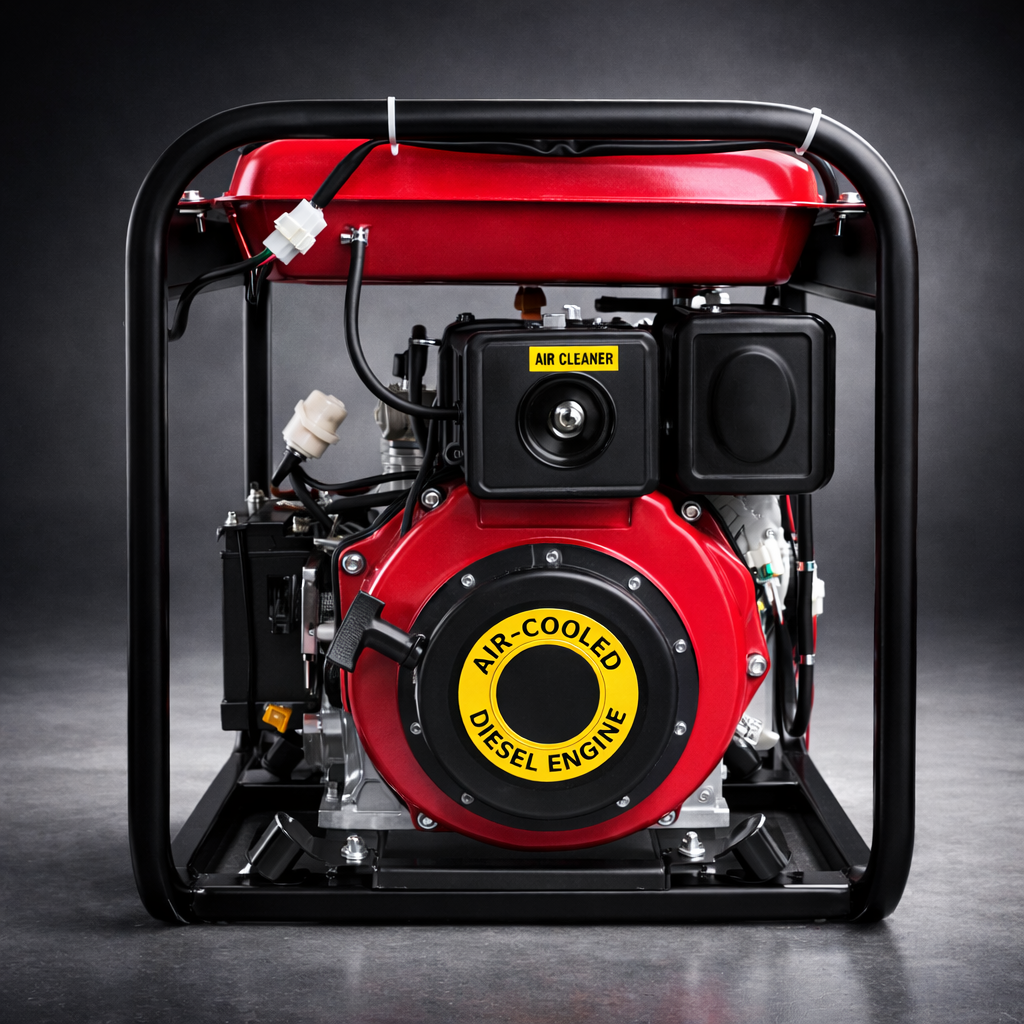

178F DIESEL ENGINE SPECIFICATIONS

• Engine Model: 178F

• Engine Type: Single-cylinder, air-cooled diesel

• Bore × Stroke: 78 × 62 mm

• Rated Power: 3.6 / 4.0 kW

• Rated Speed: 3000 / 3600 RPM

• Engine Net Weight: 33 kg

• Starting System: Electric start (battery included)

• Fuel-efficient, high-torque diesel output

The 178F engine is known for durability, fuel economy, and stable power delivery under continuous load.

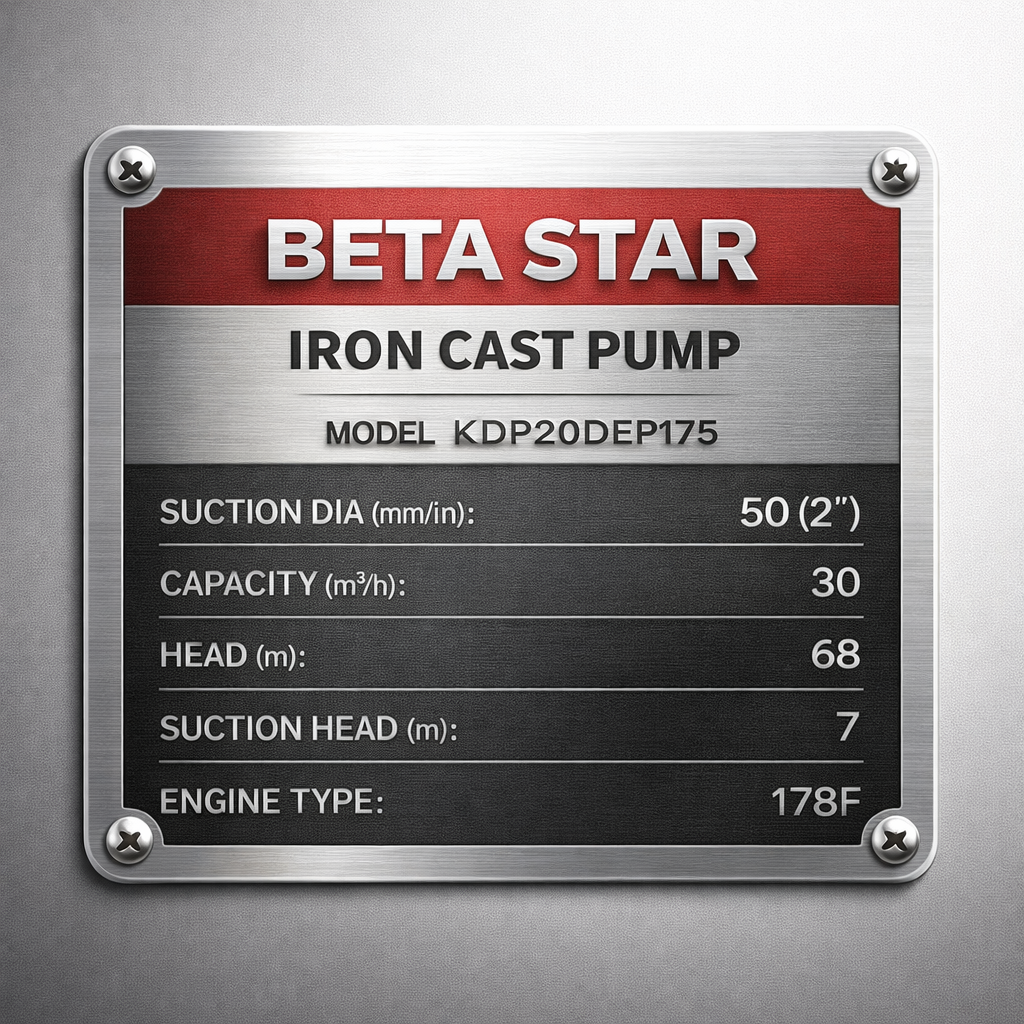

PUMP PERFORMANCE

• Model: KDP20DEP175

• Suction / Discharge Diameter: 2" × 2" (50 mm)

• Maximum Flow Capacity: 30 m³/h

• Maximum Head: 68 metres

• Maximum Suction Head: 7 metres

• Pump Body: Heavy-duty Cast Iron

Built for high lift and long-distance pumping without pressure drop.

INDUSTRIAL CONSTRUCTION

✔ Cast iron impeller housing
✔ Reinforced powder-coated steel frame
✔ Vibration-dampened engine mounting
✔ Heavy-duty integrated battery system
✔ Compact yet powerful industrial build

Designed to operate in farms, estates, drainage sites, construction projects, and emergency response scenarios.

IDEAL APPLICATIONS

• Fire control and emergency support

• Agricultural irrigation systems

• Drainage and flood control

• Construction site dewatering

• Remote water transfer operations

This is a commercial-grade diesel-powered solution — not a domestic pump.
