Description

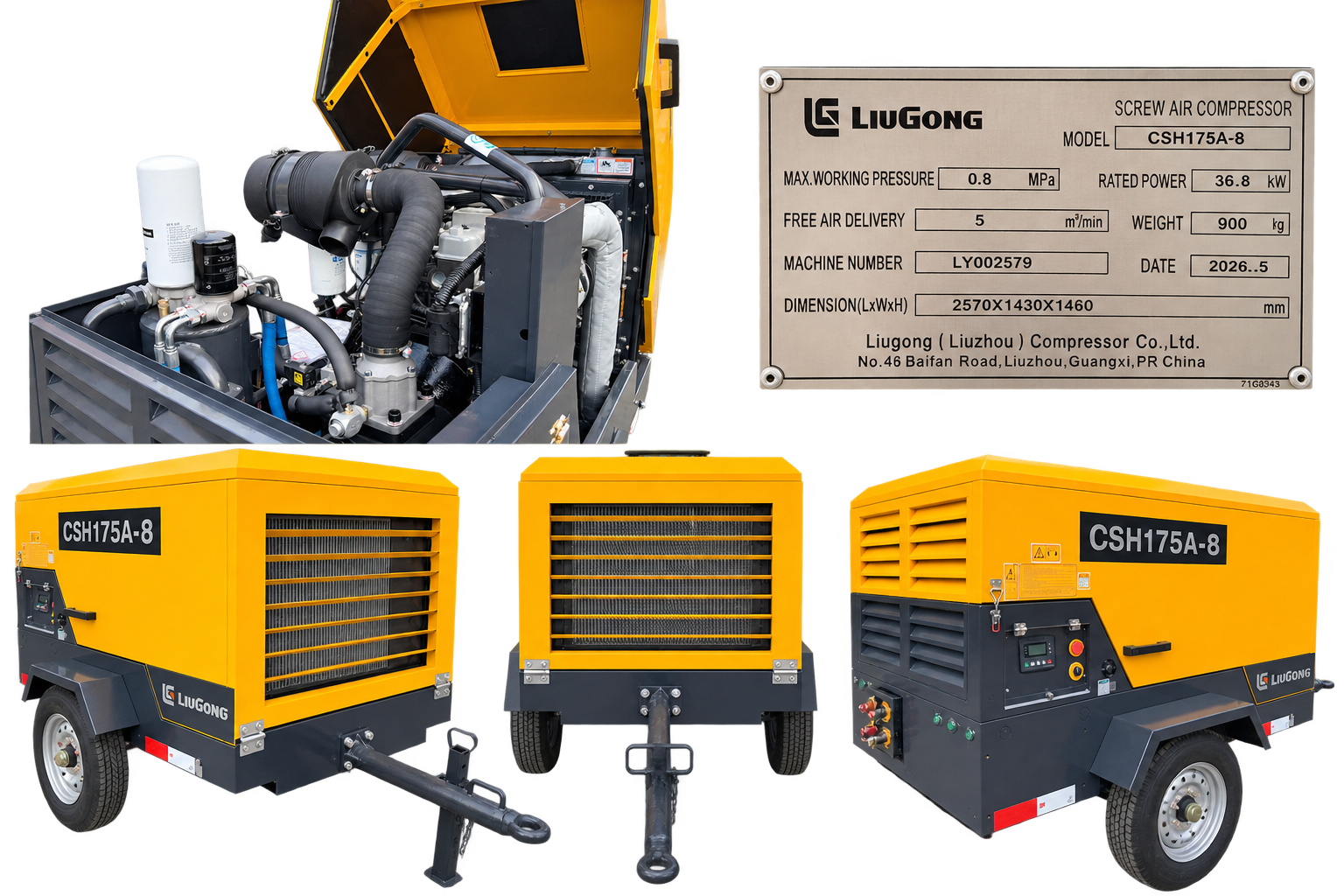

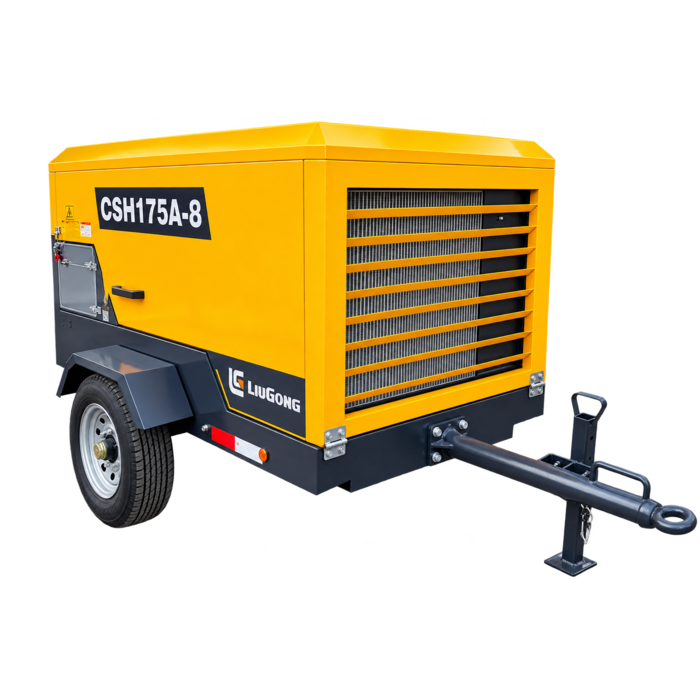

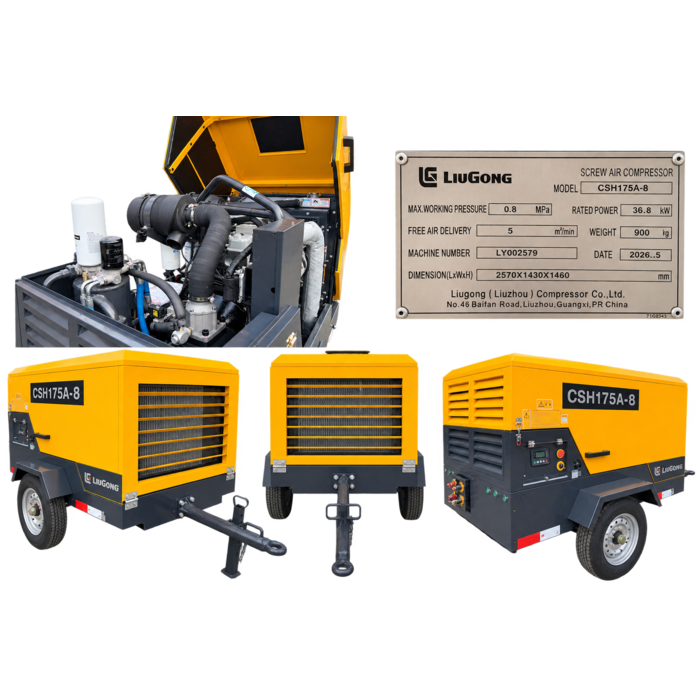

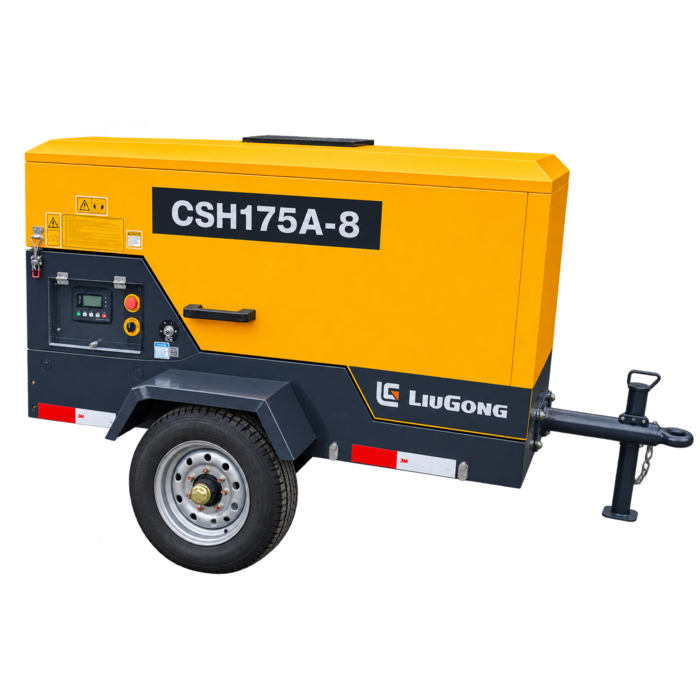

CSH175A-8 Portable Rotary Screw Air Compressor
Heavy-duty portable air compressor powered by a Cummins engine, designed for demanding industrial and job-site applications.
Key Specifications:
- Air Delivery: 175 CFM (5 m³/min)
- Working Pressure: 116 PSI (8 Bar)
- Engine: Cummins HFC4DA1-2C3
- Engine Power: 36.8 kW
- Cylinders: 4
- Engine Displacement: 2.8 L
- Fuel Capacity: 70 L
- Compressor Oil Capacity: 10 L
- Weight: 0.95 tonnes
- Outlets: 3 × G¾
- Noise Level: 70 ± 3 dB(A)
- Overall Dimensions: 2600 × 1430 × 1430 mm
- Includes water separator, after cooler and built-in drain tank.
| Specification | Details |
|---|---|
| Model | CSH175A-8 |
| Working Mode | Single |
| Free Air Delivery | 5 m³/min (175 CFM) |
| Working Pressure | 8 bar (116 PSI) |
| Compressor Oil Capacity | 10 L |
| Compressor Element | LGIR |
| Engine | Cummins |
| Engine Model | HFC4DA1-2C3 |
| Engine Power | 36.8 kW |
| Working / Idling Speed | 2350 / 1300 RPM |
| Number of Cylinders | 4 |
| Engine Displacement | 2.8 L |
| Emission Standard | EU Stage IIIA |
