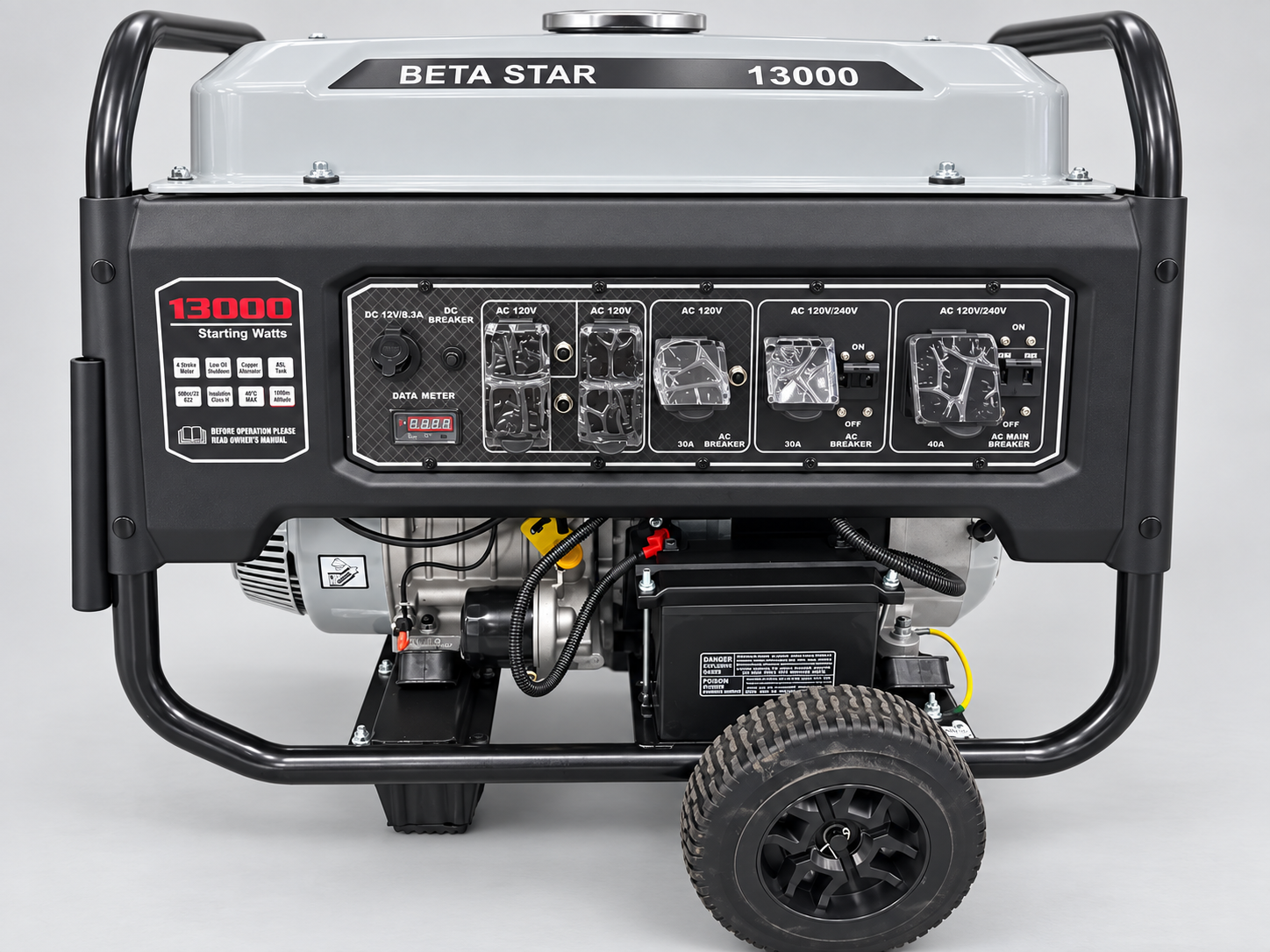

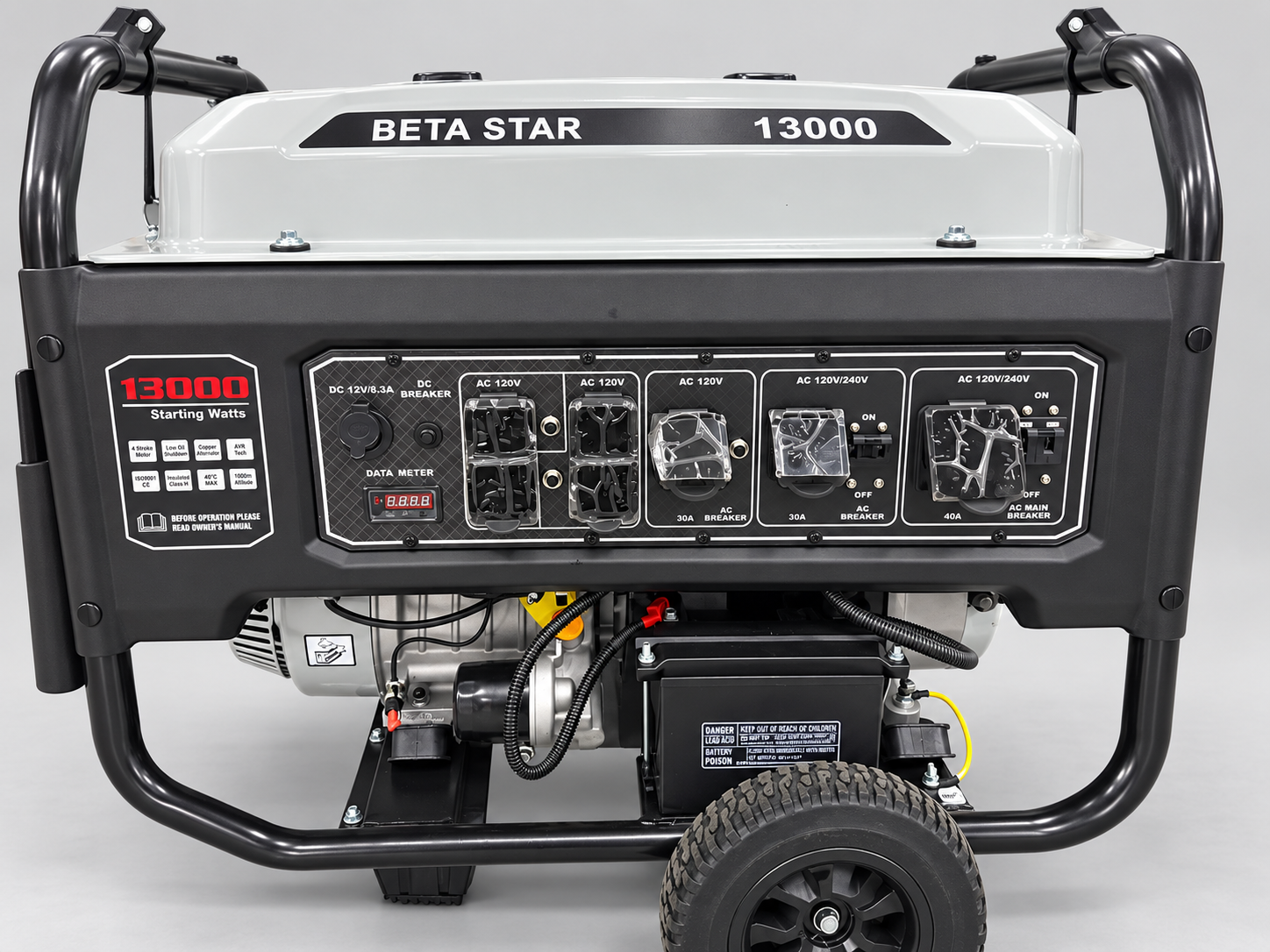

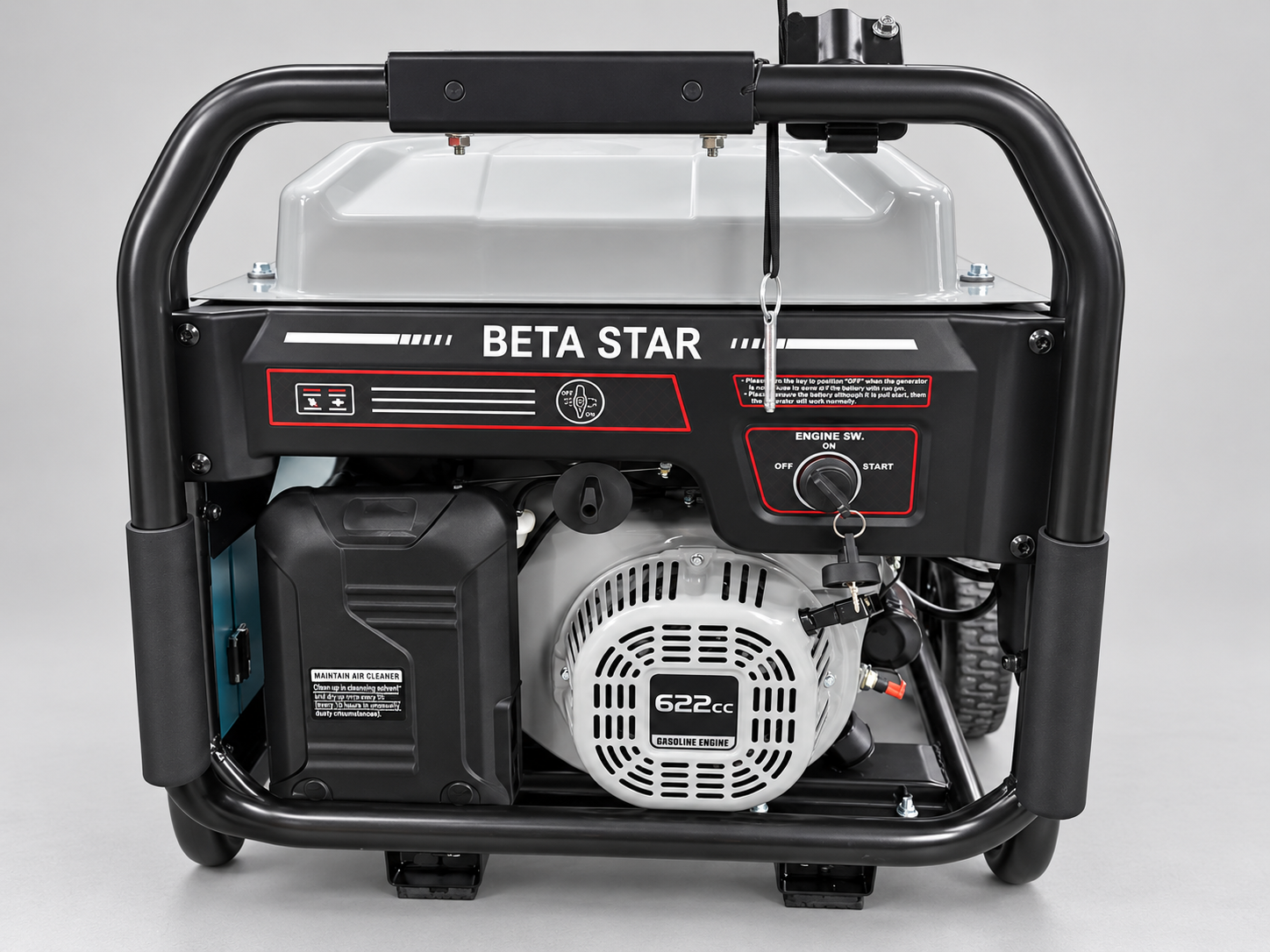

BETA STARGASOLINE GENERATOR OPEN FRAME(IND6115)
Generator Specifications
Model: 13000 / 13000S
AC Output
| Specification | 50Hz Single Phase | 50Hz Three Phase | 60Hz Single Phase | 60Hz Three Phase |
|---|---|---|---|---|
| Voltage | 220V/230V/240V | 380V/400V/415V | 220V/230V/240V | 380V/400V/415V |
| Rated power | 8.5 kW | 9.0 kW | 9.5 kW | 10.0 kW |
| Maximum power | 9.5 kW | 10.0 kW | 10.5 kW | 11.0 kW |
Engine
Engine type: Single-cylinder, forced-air-cooled, four-stroke
Engine speed: 3,000 rpm at 50Hz / 3,600 rpm at 60Hz
Fuel: Gasoline
Engine oil capacity: 1.6 L
Spark plug type: F7TC/F7RTC (N9YC/RN9YC)
Spark plug clearance: 0.7–0.8 mm
Valve clearance, inlet/outlet: 0.03–0.05 mm / 0.05–0.07 mm
Ignition mode: T.C.I.
Starting method: Recoil start/electric start
Engine displacement: 622 cc
Physical Specifications
Net weight: Approximately 143 kg
Dimensions: 850 × 620 × 650 mm
Fuel tank capacity: 48 L
Noise Levels
Measured according to European Directive 2000/14/EC, as amended by 2005/88/EC.
Measured sound-pressure level: 78 dB(A)
Measured sound-power level: 98 dB(A)
Uncertainty: 2 dB(A)
Guaranteed sound-power level: 100 dB(A)
Note: Only the 230V, 50Hz version is CE-certified. Values are approximate and may vary depending on the generator’s configuration.
Common Appliance Power Requirements
| Appliance/equipment | Rated power | Starting power |
|---|---|---|
| 27-inch flat-panel television | 80W | 100W |
| Energy-saving lamp | 5–50W | 5–50W |
| Electric cooker | 1,000W | 1,000W |
| Computer | 250W | 250W |
| DVD player | 15W | 15W |
| Electric fan | 50W | 100W |
| Washing machine | 250W | 500W |
| Refrigerator | 50W | 300W |
| 2HP air conditioner | 1,600W | 3,200W |
| Electric hammer | 1,000W | 1,500W |
| Metal-halide lamp | 2,000W | 3,000W |
| Jump bit | 3,000W | 6,000W |
| Water pump | 2,200W | 5,000W |
| Electric welder | 5,000W | 7,500W |
| Air compressor | 5,000W | 10,000W |
The manual states that appliance starting power can be significantly higher than operating power. The combined electrical load should not exceed the generator’s rated output.
