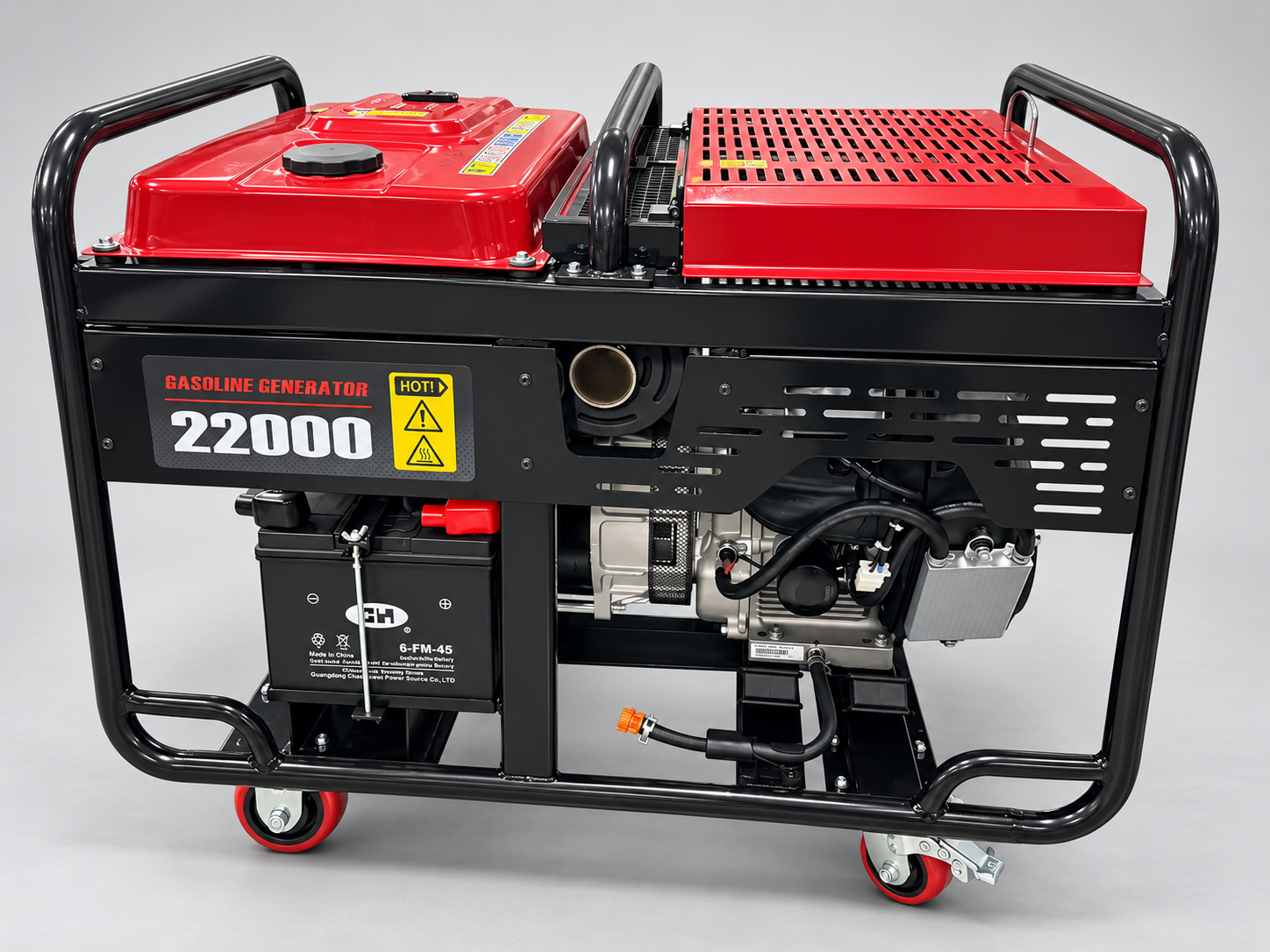

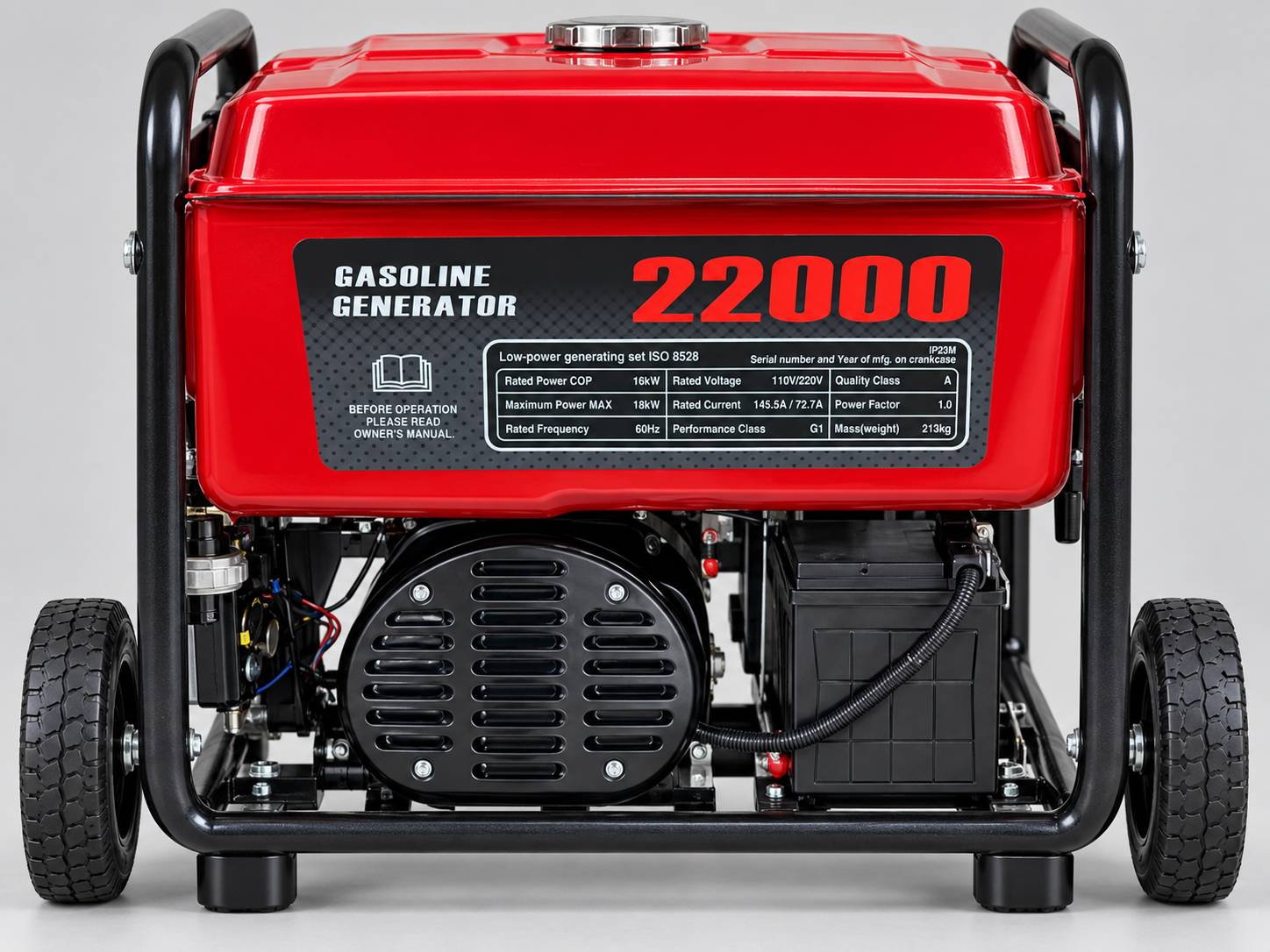

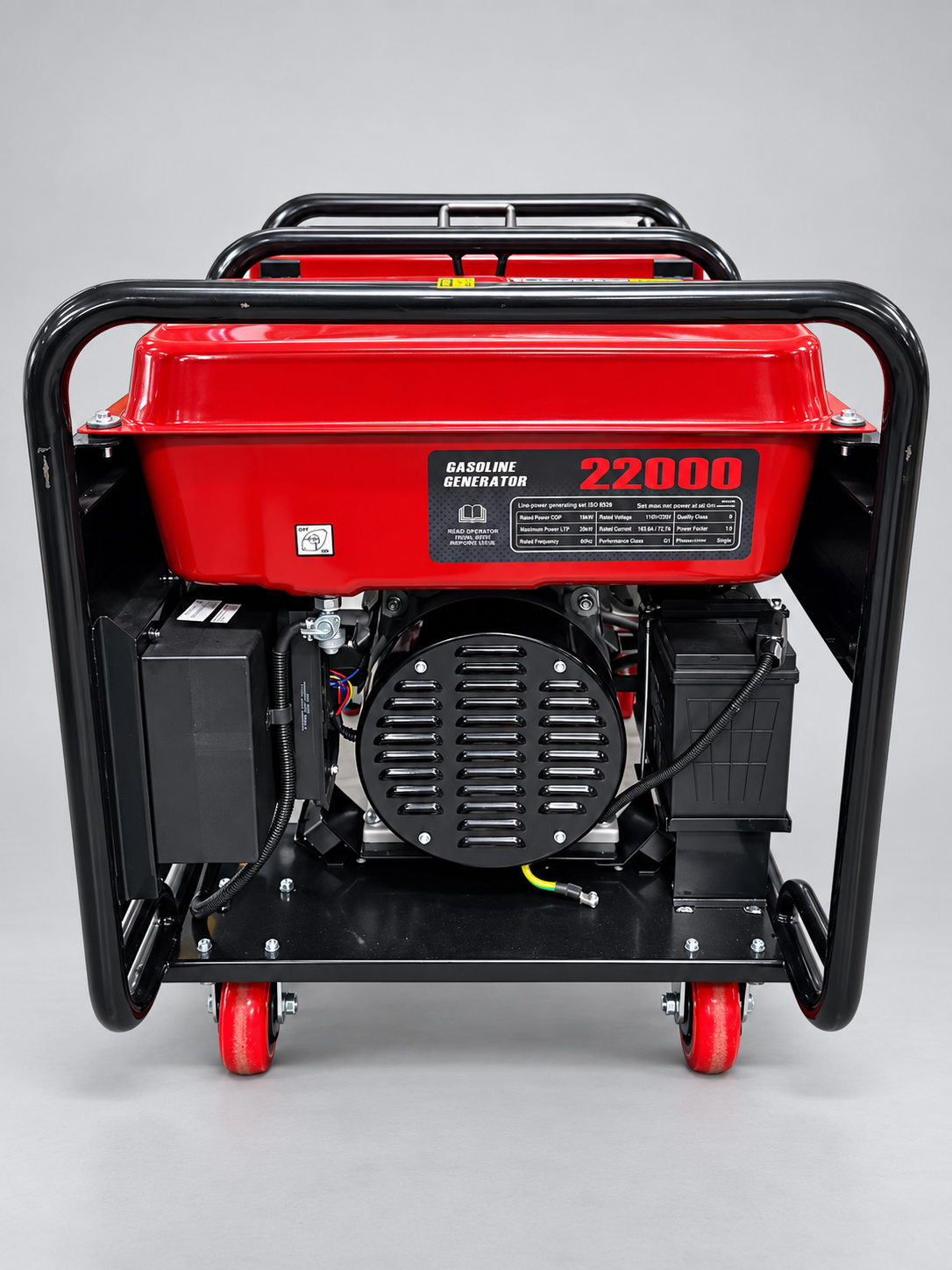

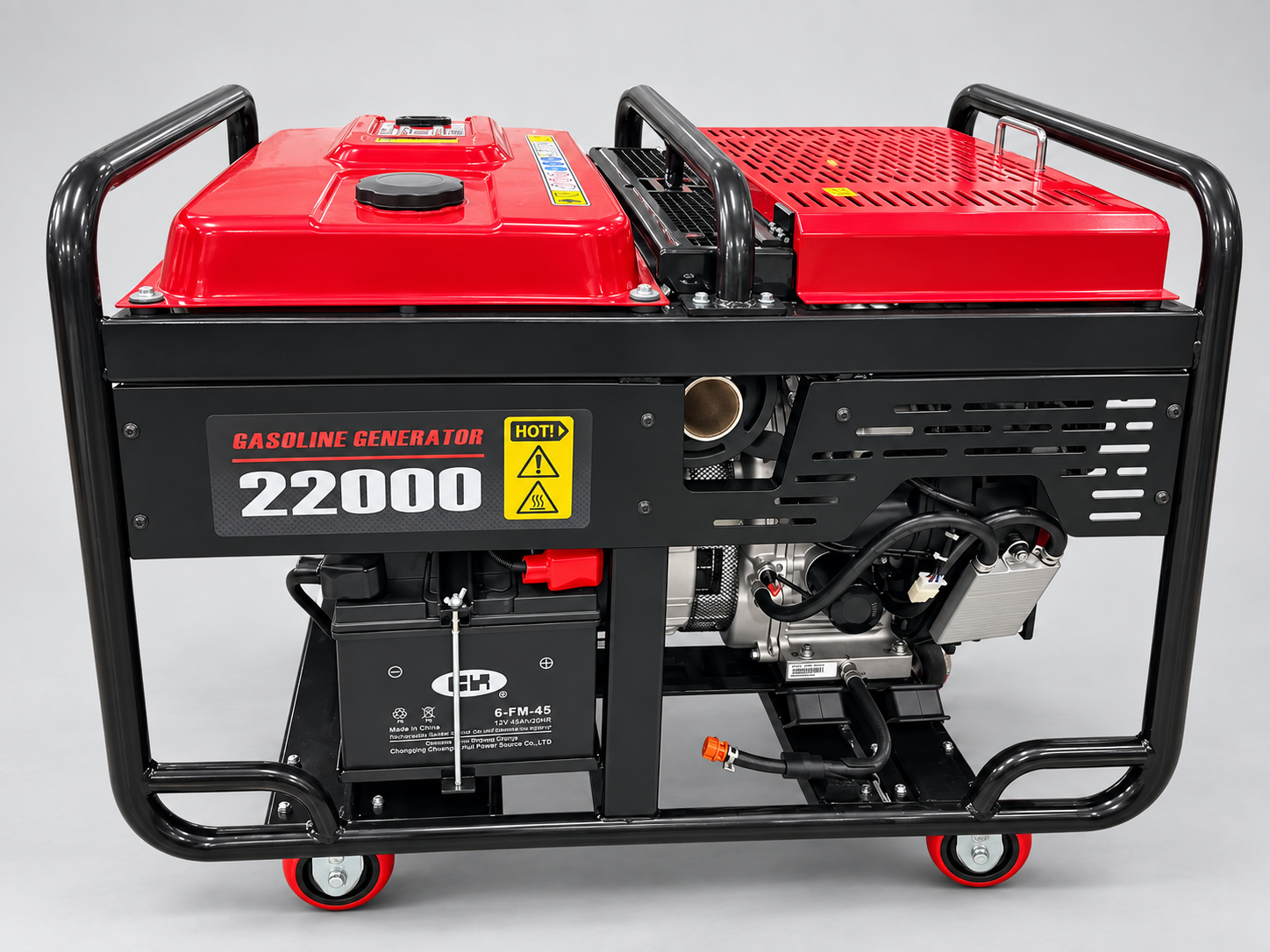

LONCINGASOLINE GENERATOR OPEN FRAME (IND6116 )
After Sales Service
Warranty
All prices are VAT exclusive
Free Delivery Service for sales ($30,000+) (Georgetown)
Description

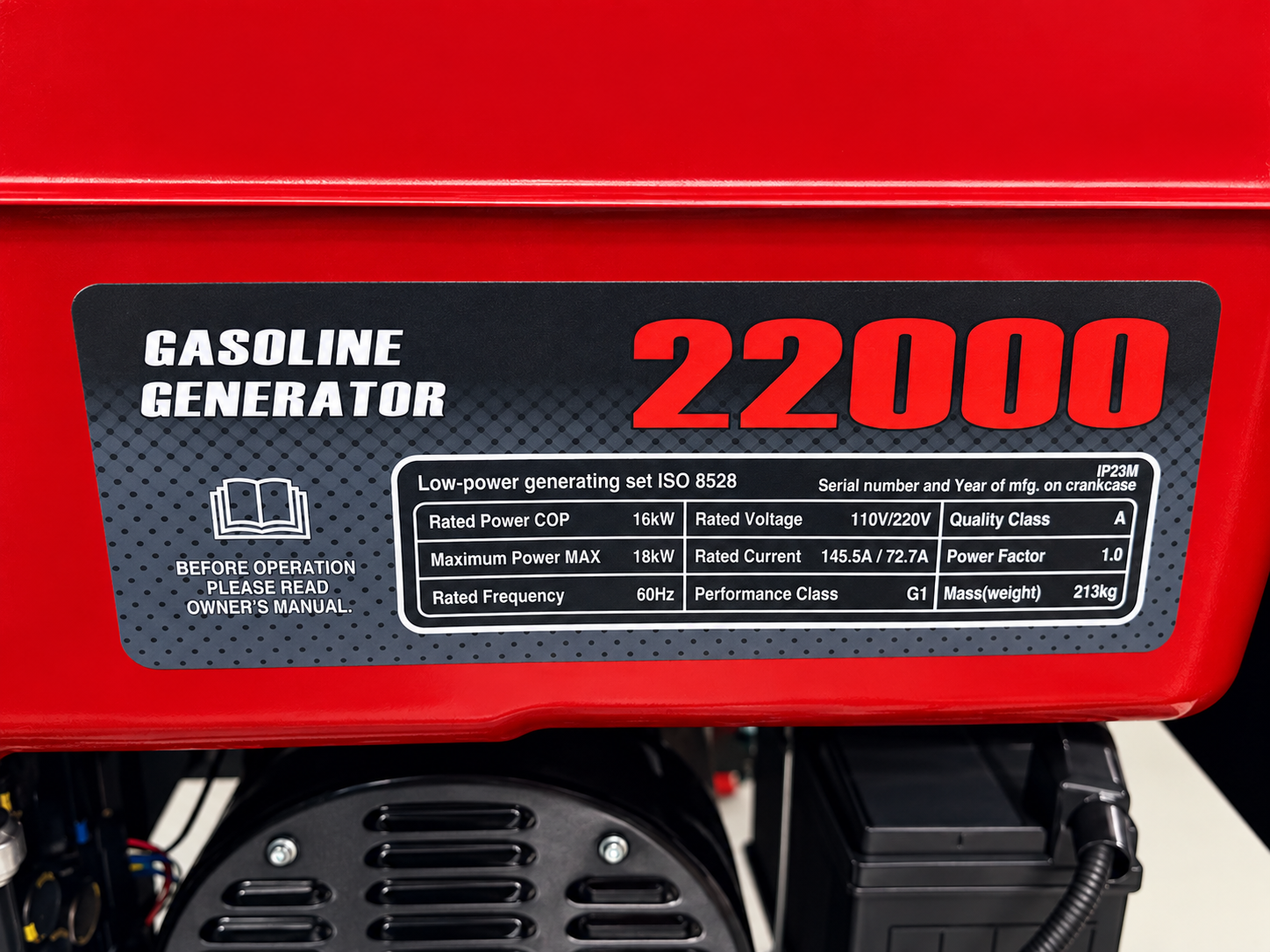

Gasoline Generator 22000 Specifications
| Specification | Details |
|---|---|
| Type | 22000 |
| Engine model | 2V90FD |
| Engine type | Dual-cylinder, air-cooled, four-stroke |
| Cylinder bore × stroke | 90 × 78.5 mm |
| Displacement | 999 ml |
| Compression ratio | 8.5:1 |
| Engine rated power | 24 kW at 3,600 rpm |
| Maximum torque | 70 N·m at 2,800 rpm |
| Ignition system | Transistor, contactless type |
| Starting method | Electric start |
| Lubricating-oil capacity | 2.0 litres |
| Air filter | Paper and foam filter core |
| Generator type | Synchronous generator |
| Voltage regulation | Automatic voltage adjustment |
| Phase | Single phase |
| Rated frequency | 60 Hz |
| Rated voltage | 110/220V |
| Rated output | 16 kW |
| Maximum output | 18 kW |
| Rated current | 145.5A / 72.7A |
| Power factor | 1.0 |
| Fuel-tank capacity | 40 litres |
| Fuel consumption | ≤374 g/kWh |
| Continuous operating time | Approximately 6 hours |
| Noise level | ≤76 dB(A) at 7 metres |
| Dimensions | 1,040 × 680 × 858 mm, including wheels |
| Net weight | 213 kg |
| Protection grade | IP23M |
| Performance class | G1 |
| Quality class | A |
