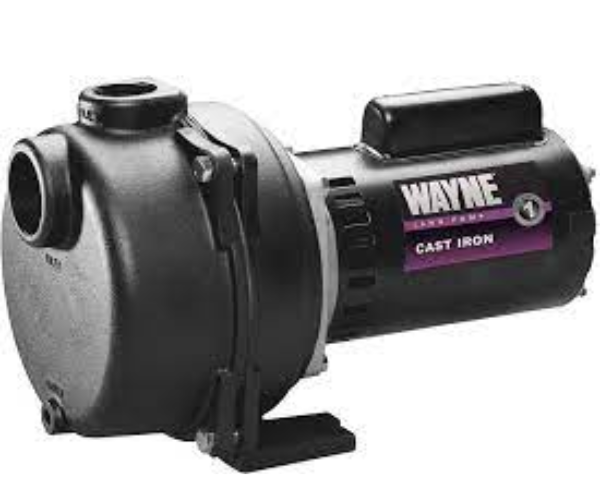

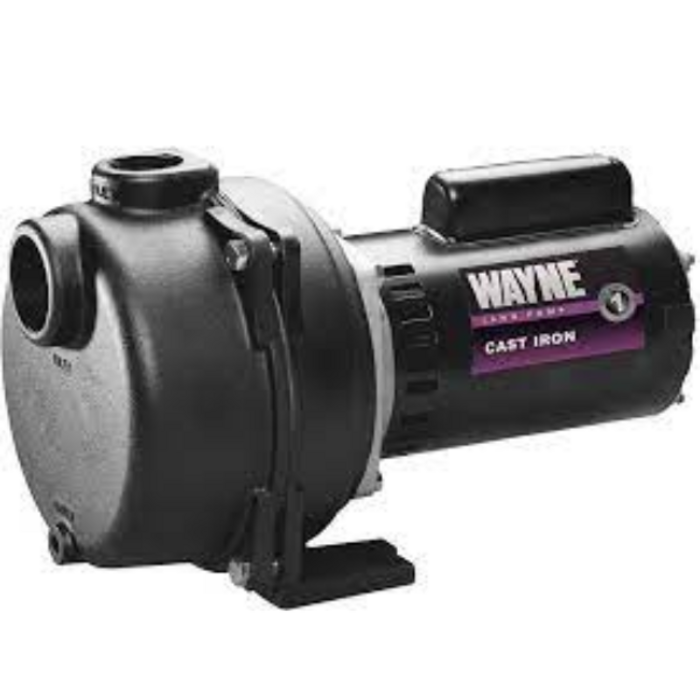

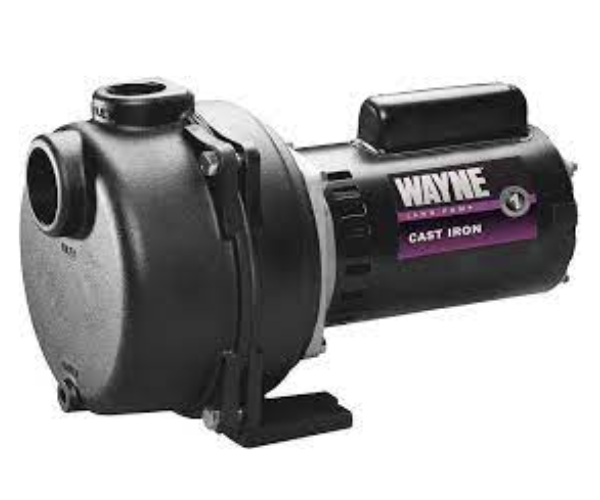

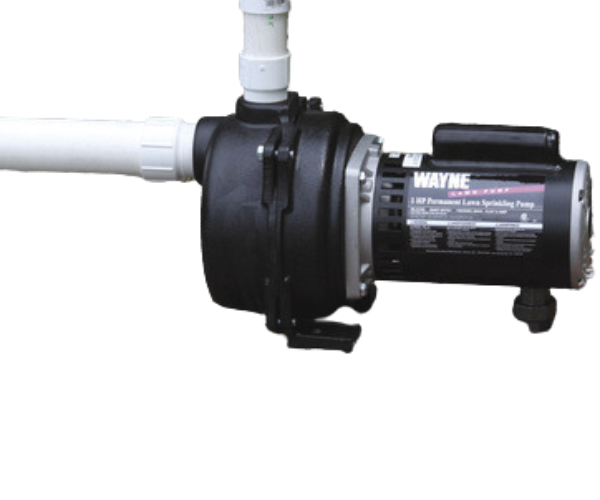

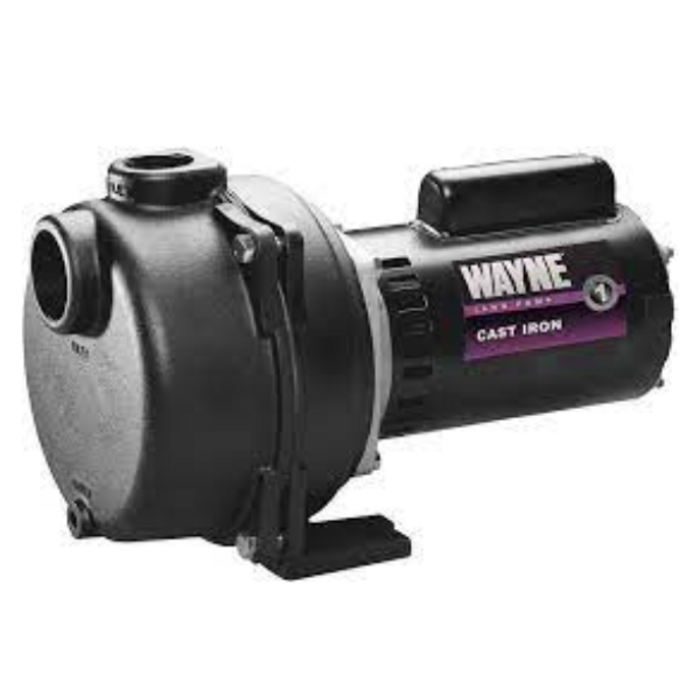

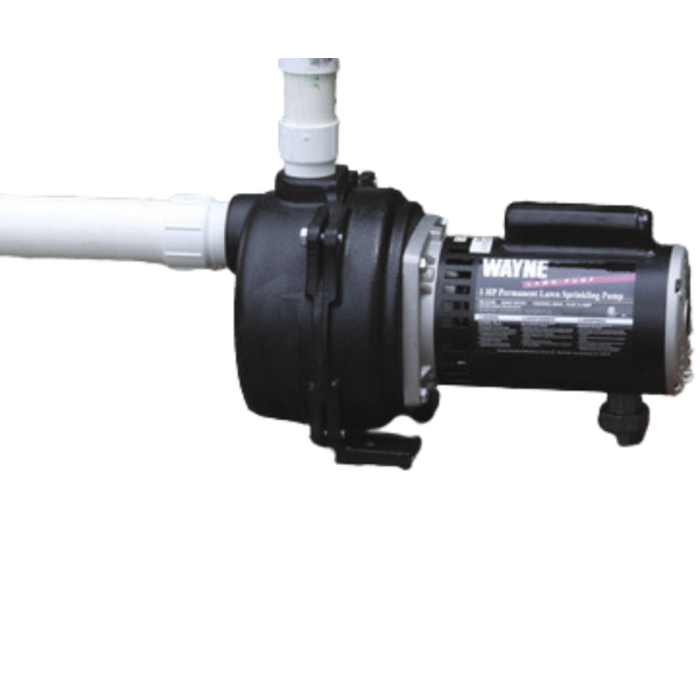

WAYNEIND9907 PUMP/WAYNE SPRINKLING 2HP WLS200

The Wayne Cast Iron Lawn Sprinkler Pump is built to give you many years of dependable pumping service. Designed to operate underground sprinkling systems, and draw water from well, lake,s or ponds for watering, pool filling, or any other applications where high water volume is needed. Can be used as a portable sprinkler or water transfer pump. The pump should be installed in a basement, garage, tool shed, or pump house.

• Continuous duty pump
• 2 HP motor
• High efficient square flange motor is thermally protected to prevent overheating
• Rugged cast iron pump housing
• Stainless steel shaft for durability
• Supports up to 10-15 sprinkler heads at 100ft.
• Total Gallons per hour is dependent on several variables – please review the following data to determine approximate pump performance in your application: 5300 GPH @ 5′ Lift/ 20 PSI; 4850 GPH @ 15′ Lift/ 20 PSI; 4200 GPH @ 5′ Lift/ 30 PSI; 3750 GPH @ 15′ Lift/ 30 PSI
•  Easy-access drain port
• Glass-reinforced thermoplastic impeller and diffuser for corrosion resistance

• Ceramic/carbon-faced seal for long life
•  Heavy-duty cast iron mounting brackets
• Motor Speed: 3,450 RPM
• Motors are factory-wired 230V
• 11.5 Amps
• 2in. NPT suction port
• 1 1/2in. NPT discharge port
