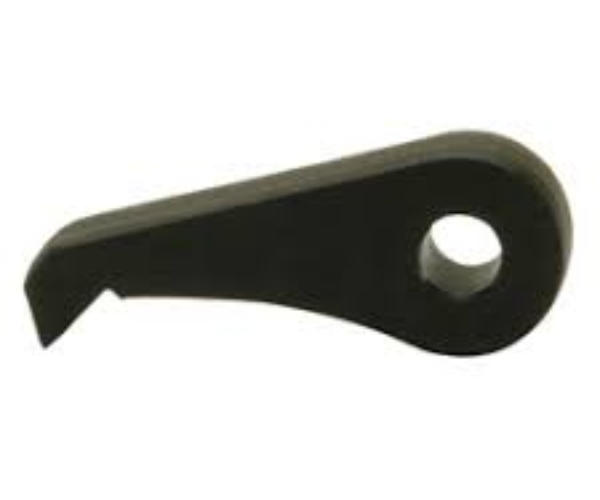

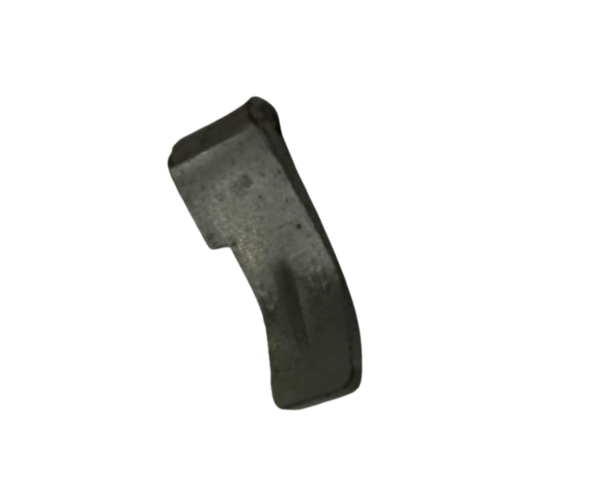

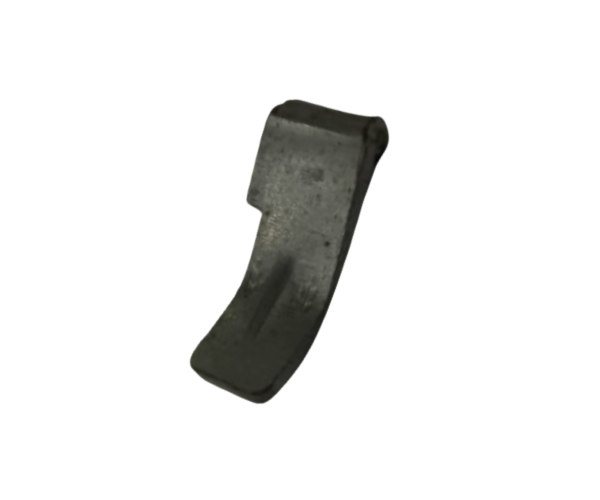

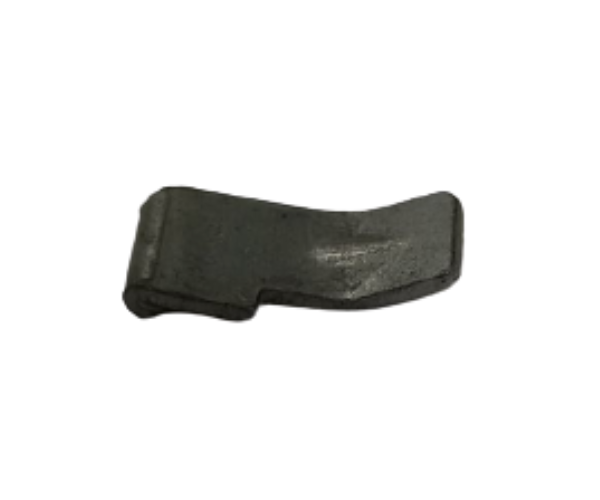

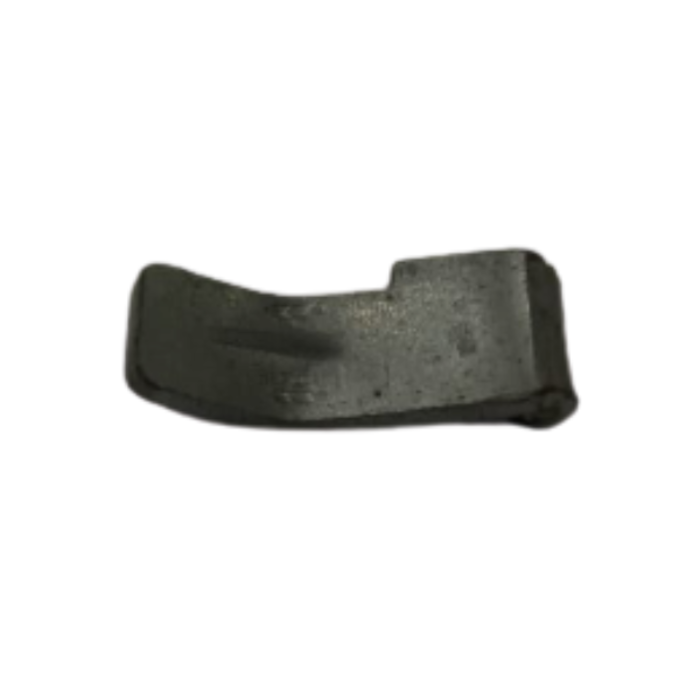

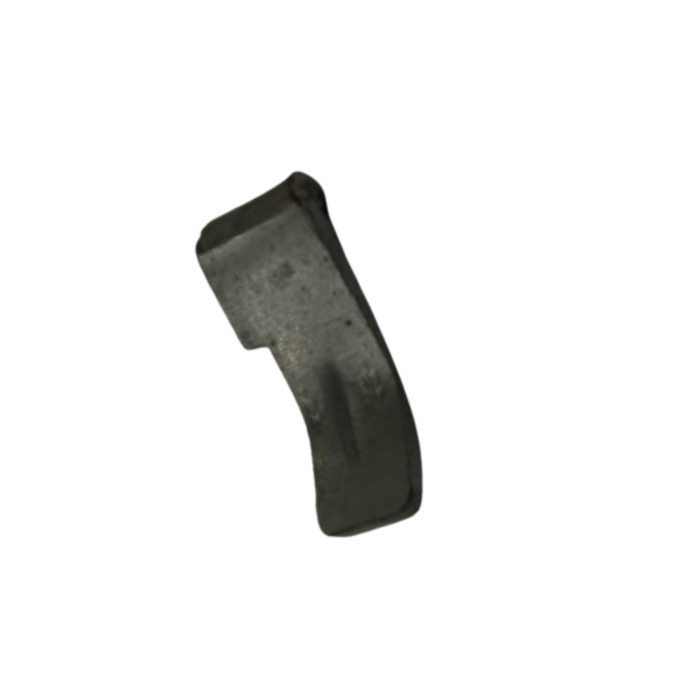

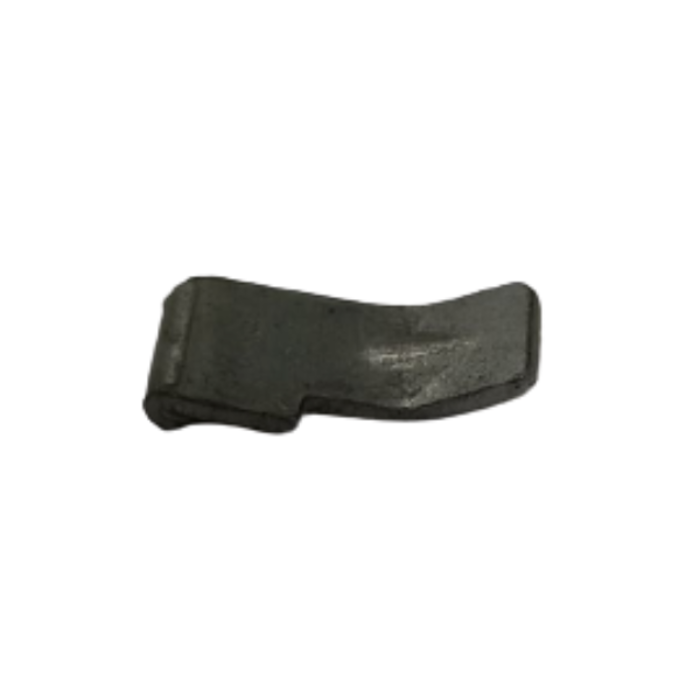

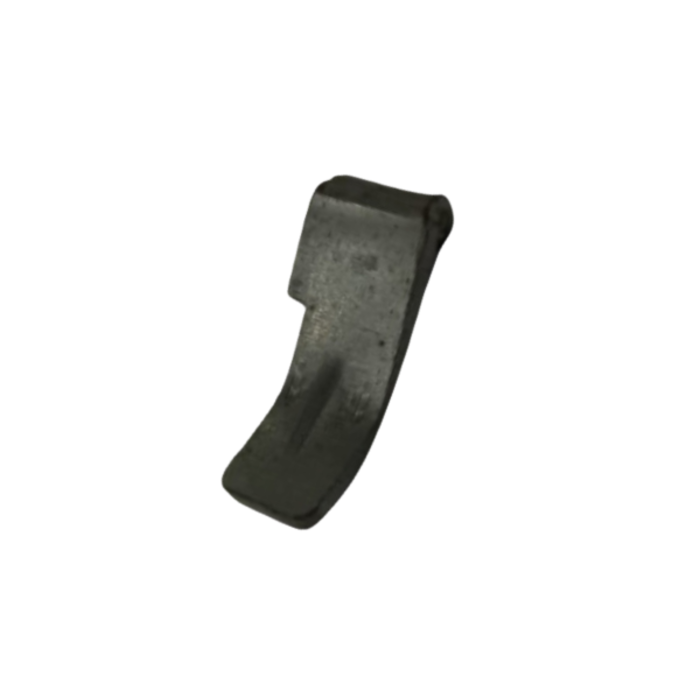

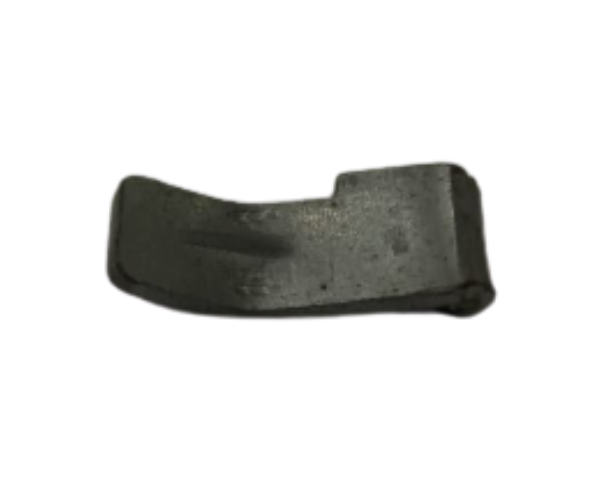

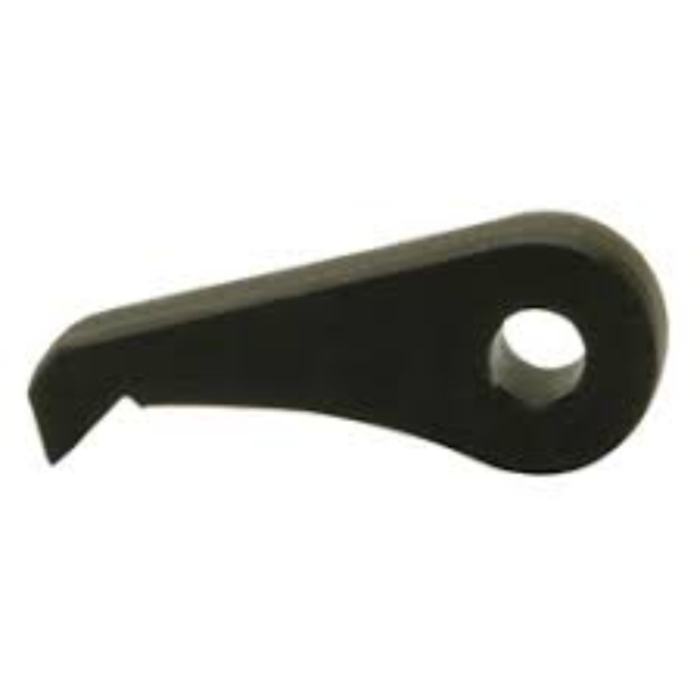

VEH18962 PAWL(RATCHET) GE200

The purpose of a ratchet and pawl is to allow a shaft to rotate in one direction only. A ratchet is a wheel with a shape similar to a circular saw blade or horizontal milling cutter. A ratchet fits onto a shaft and is locked onto the shaft by a “key”. The key fits into slots in the shaft and ratchet wheel.
Part Number: GE200

Mass (kg)
0.057
Dimension L (mm)
10
Dimension P (mm)
12
Dimension M (mm)
39
Dimension N (mm)
49
Hardness HRC
50-60 (claw)
Offset Angle (°)
60 (teeth)
Dimension K (mm)
8
Gear Surface Treatment
Cutting
Gear Cutting Reference Plane
Hole
Heat Treatment
Induction hardening (nail part)
Material
Mild Steel
Shape
T5
