BETA STARIND5985/ FUEL DISPENSING PUMP 24V 2" INLET AND 1" OUTLET

BETA STAR 24V DC 20GPM Fuel Transfer Pump with Nozzle Kit (Blue)

Industrial Power. Faster Flow. Built for Demanding Operations.

The BETA STAR 24V DC 20GPM Fuel Transfer Pump is engineered for high-efficiency fuel management in commercial, agricultural, marine, and industrial environments. Designed for 24-volt systems, this heavy-duty pump delivers an impressive 20 gallons per minute, ensuring rapid refuelling with consistent, controlled performance.

Built from rugged iron alloy steel with precision ball-bearing construction, it provides long-lasting durability with minimal maintenance - no additional lubrication required.

High-Volume Fuel Transfer Performance

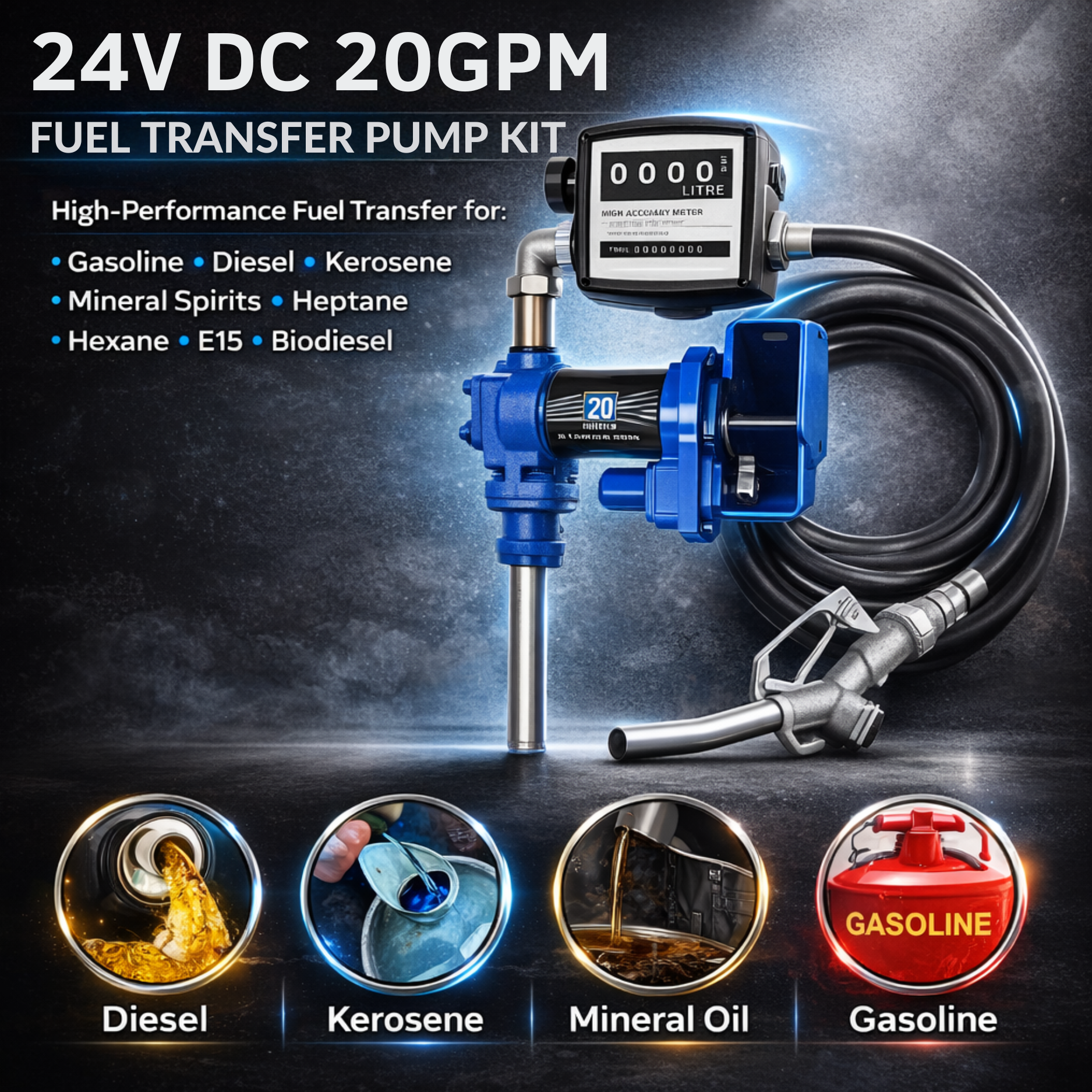

Designed for safe transfer of:

• Gasoline

• Diesel Fuel

• Kerosene

• Biodiesel

• Mineral Spirits

• Heptane & Hexane

• E15 and similar fuels or oils

Ideal for:
Heavy equipment, fleet vehicles, generators, marine vessels, agricultural machinery, storage tanks, and commercial refuelling stations.

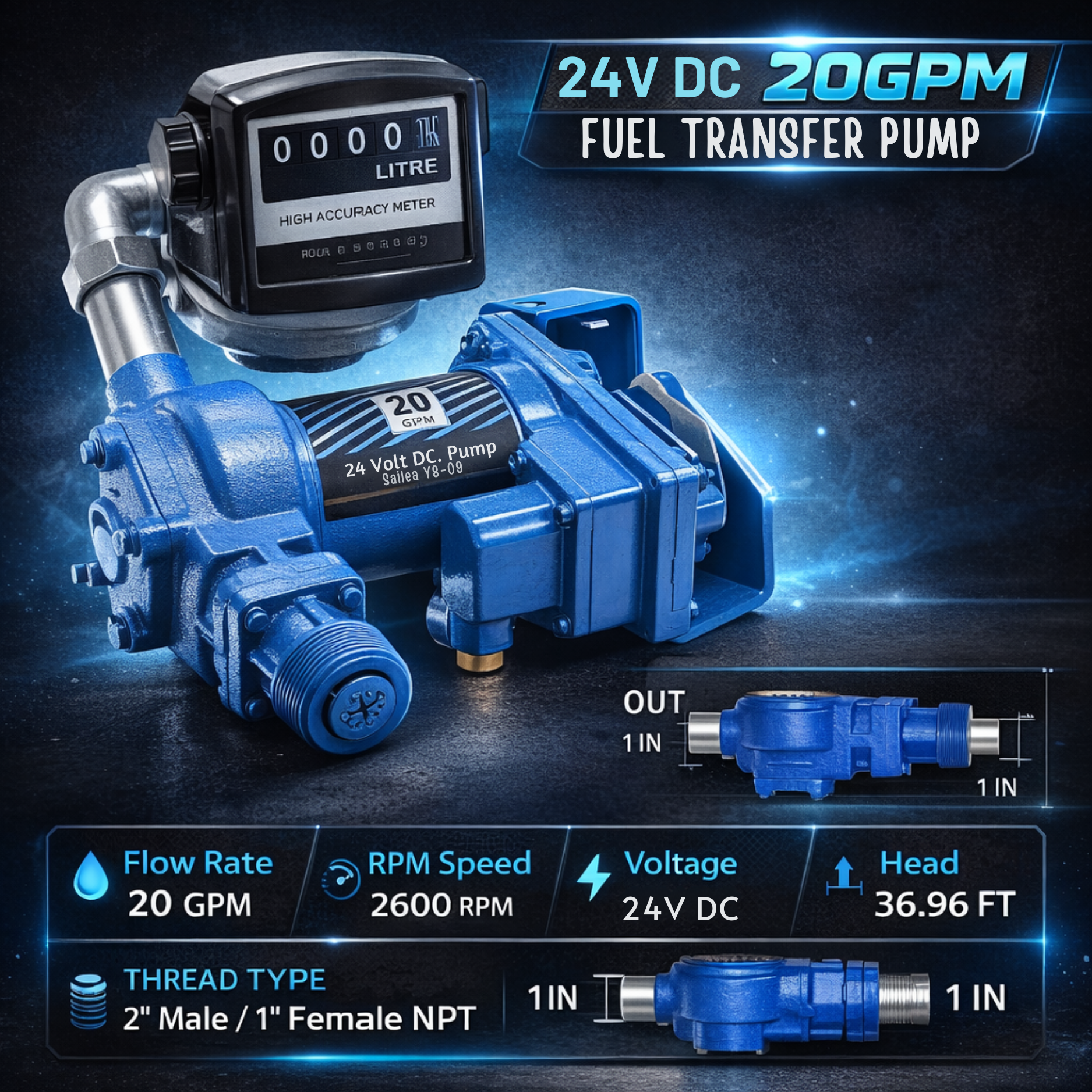

Professional Technical Specifications

• Brand: BETA STAR

• Voltage: 24V DC

• Flow Rate: 20 GPM

• Pump Type: Mechanical

• Construction: Ball Bearing System

• Material: Iron Alloy Steel

• Finish: Brushed exterior

• Colour: Blue

• Dimensions: 14” W × 9” H × 5” D

• Weight: 17.2 kg

• Bung Adapter: 2” Male NPT

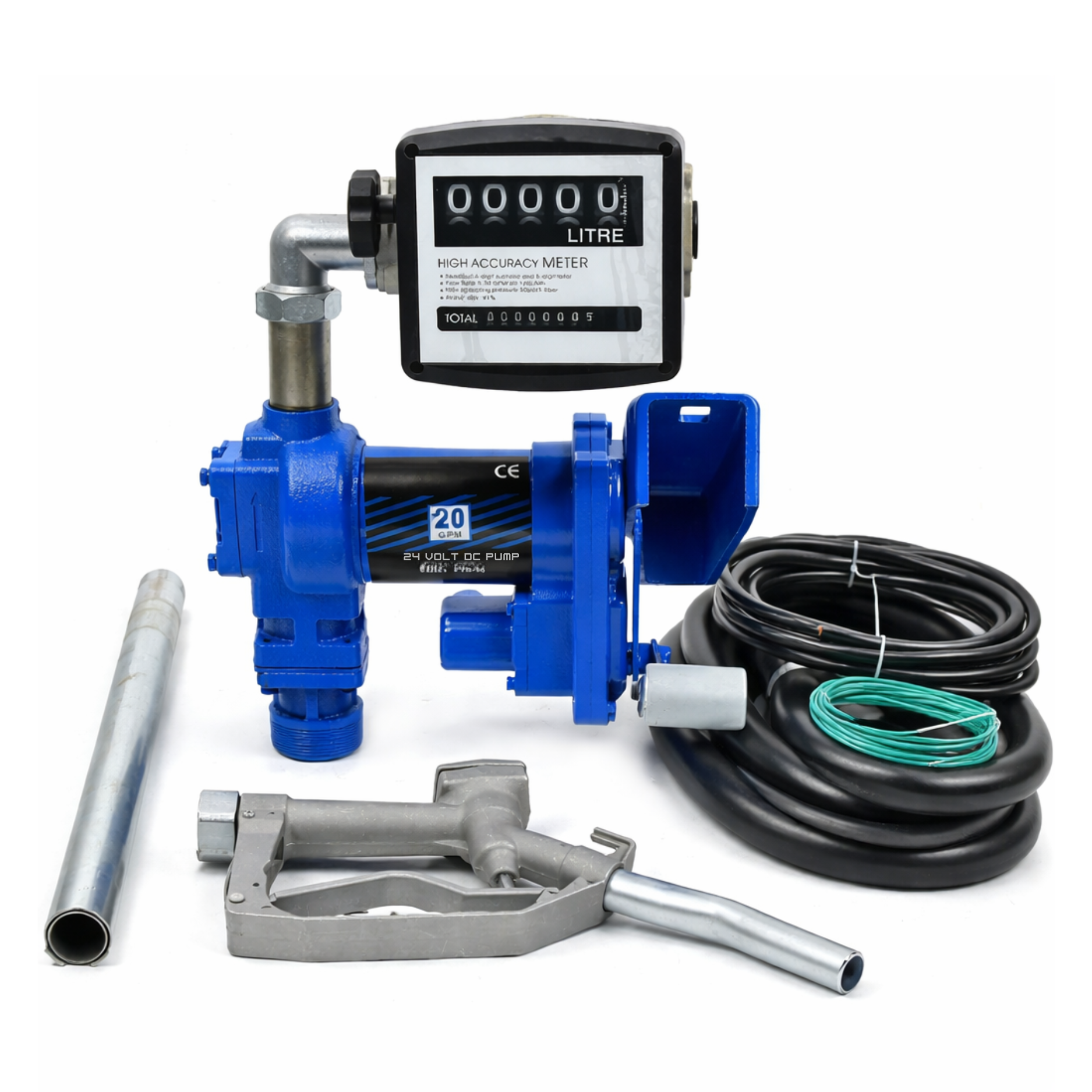

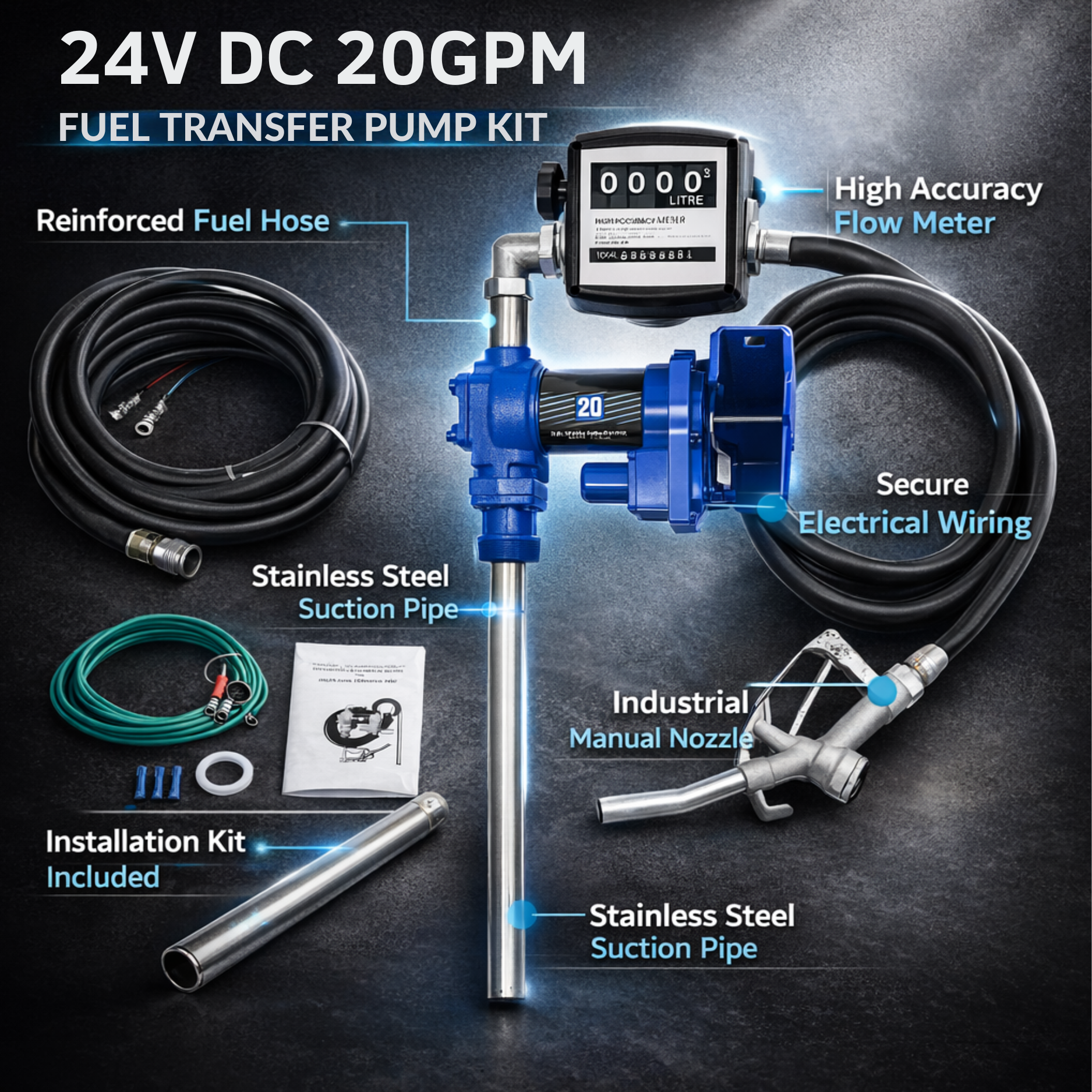

• Hose: 1” hose with nozzle included

• Integral Inlet Screen: Yes (Particulate protection built-in)

Integrated Security Protection

The BETA STAR 24V pump includes a padlock-ready nozzle locking system. When not in use, the nozzle can be secured with a padlock through the pivot locking link — preventing unauthorised access and ensuring jobsite security.

Perfect for remote locations, fleet depots, farms, and industrial facilities.

Efficient & Simple Installation

The enclosed electrical junction box allows safe, straightforward wiring:

1. Remove junction box cover.

2. Strip ½ inch insulation from red and black cable wires.

3. Match colour-coded wiring using supplied connectors.

4. Ensure no exposed wires before resealing the box.

Designed for professional installation in 24V systems commonly found in heavy-duty vehicles and industrial setups.

Engineered for Tough Environments

This is a professional-grade transfer pump — not a light-duty consumer unit. The heavy iron housing withstands harsh working conditions while maintaining steady fuel flow and dependable operation.

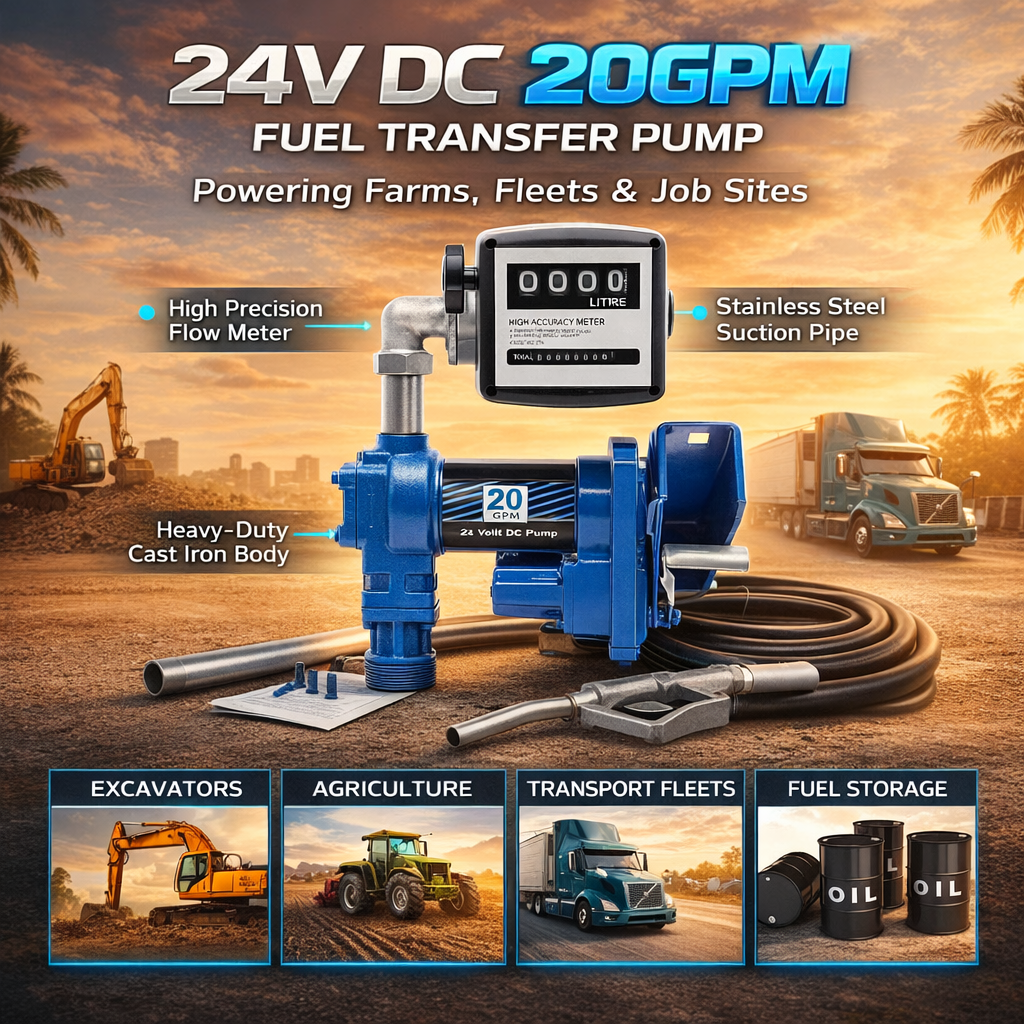

Recommended Applications

✔ Fleet & Commercial Fuel Depots
✔ Agricultural & Farm Equipment
✔ Marine & Dockside Refuelling
✔ Generator Backup Systems
✔ Construction & Industrial Sites
