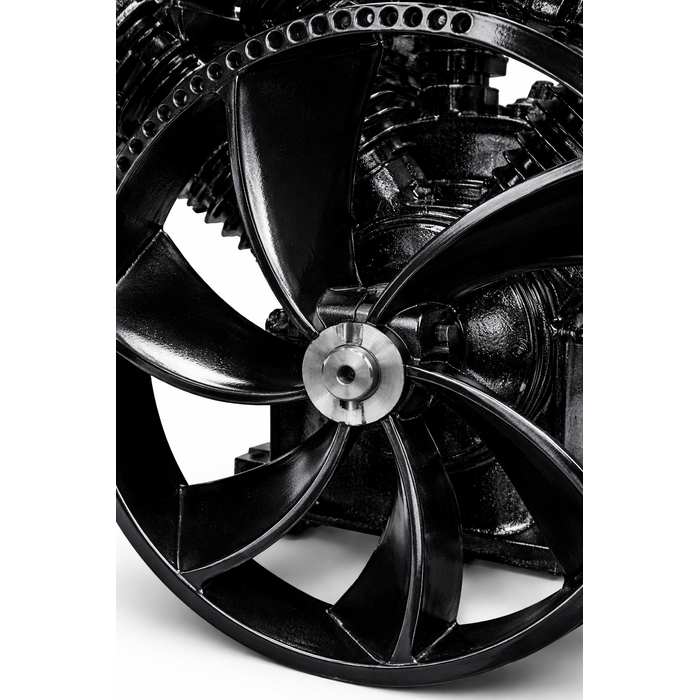

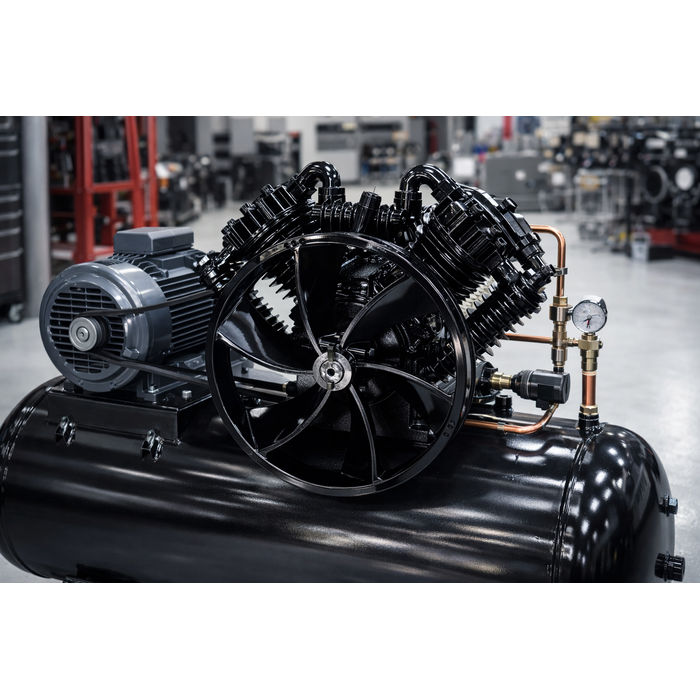

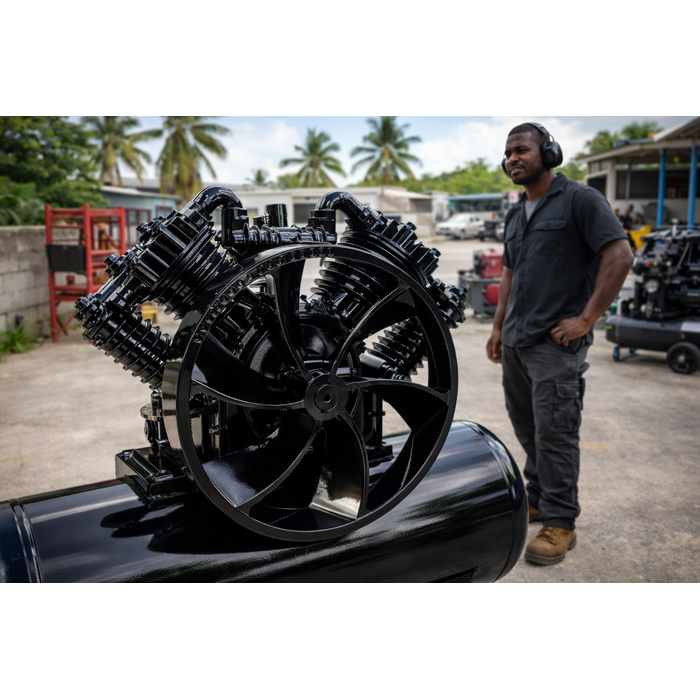

BETA STARIND6028/AD2105TC 10HP AIR COMPRESSOR PUMP HEAD

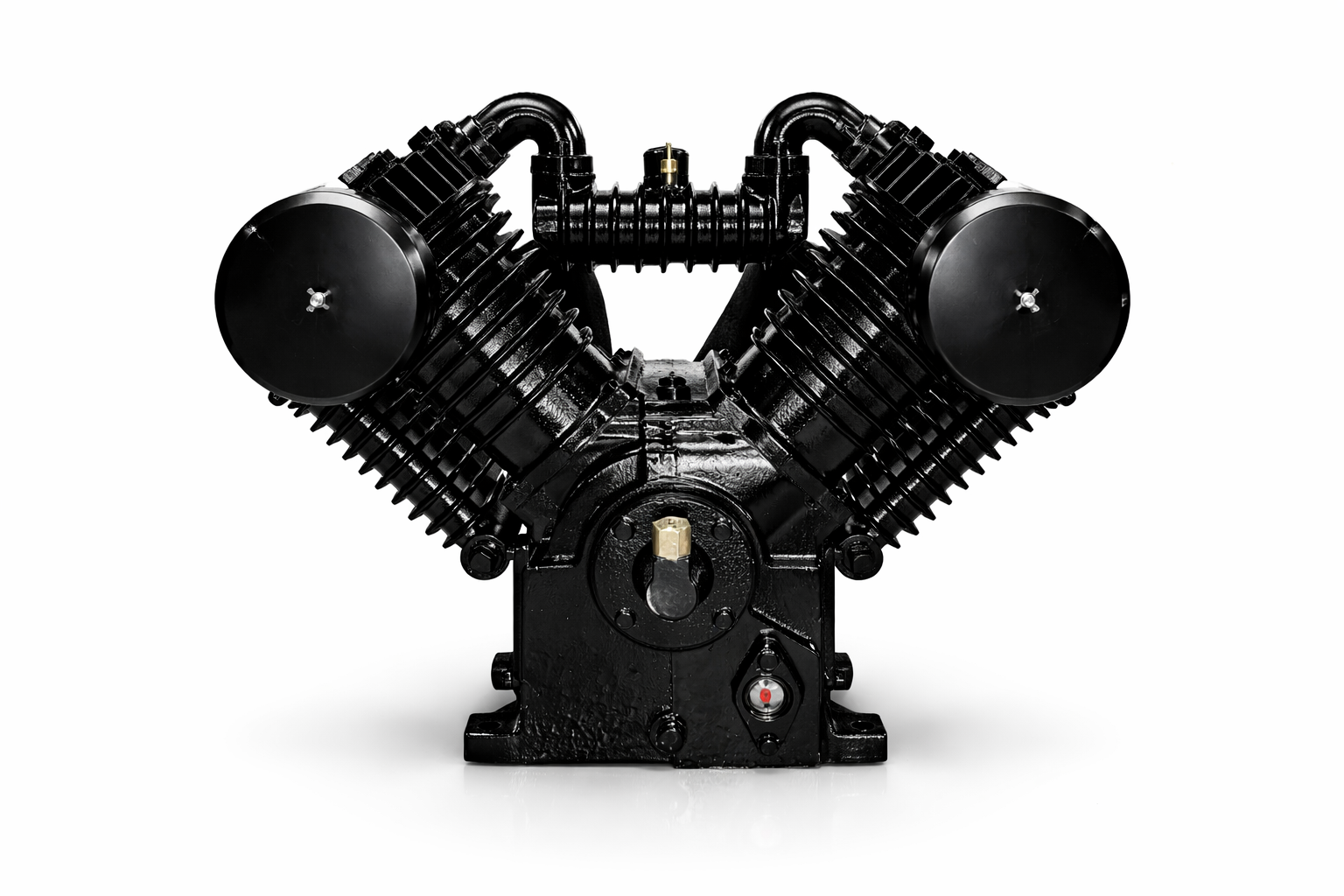

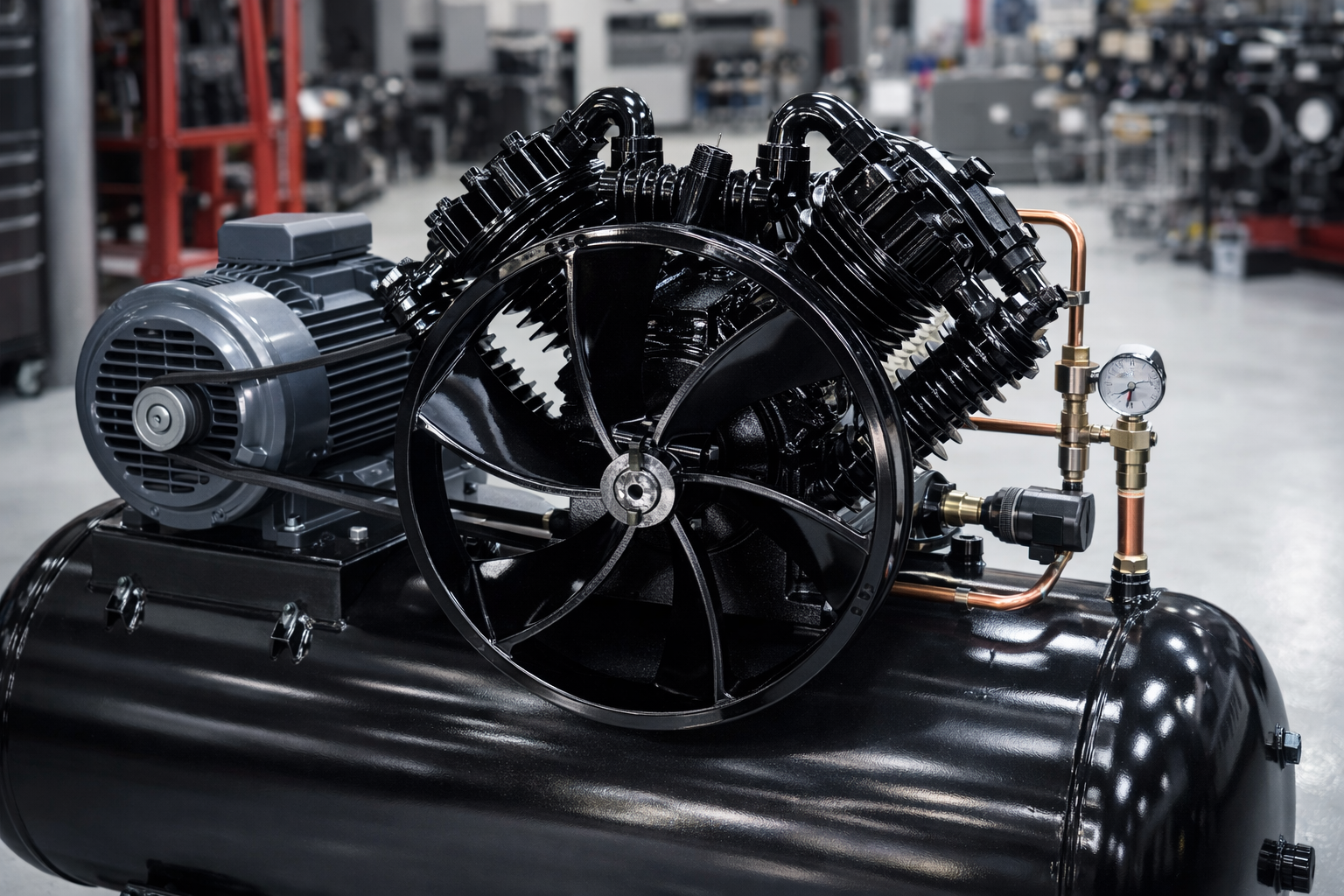

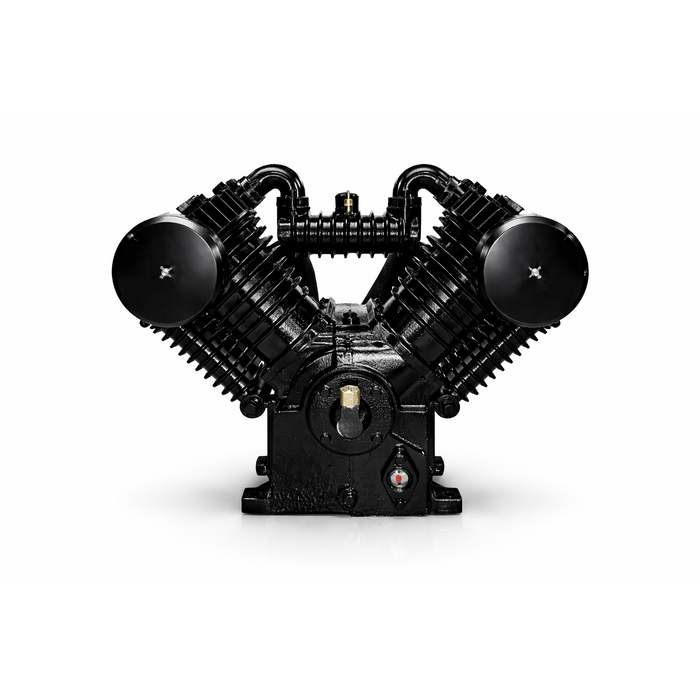

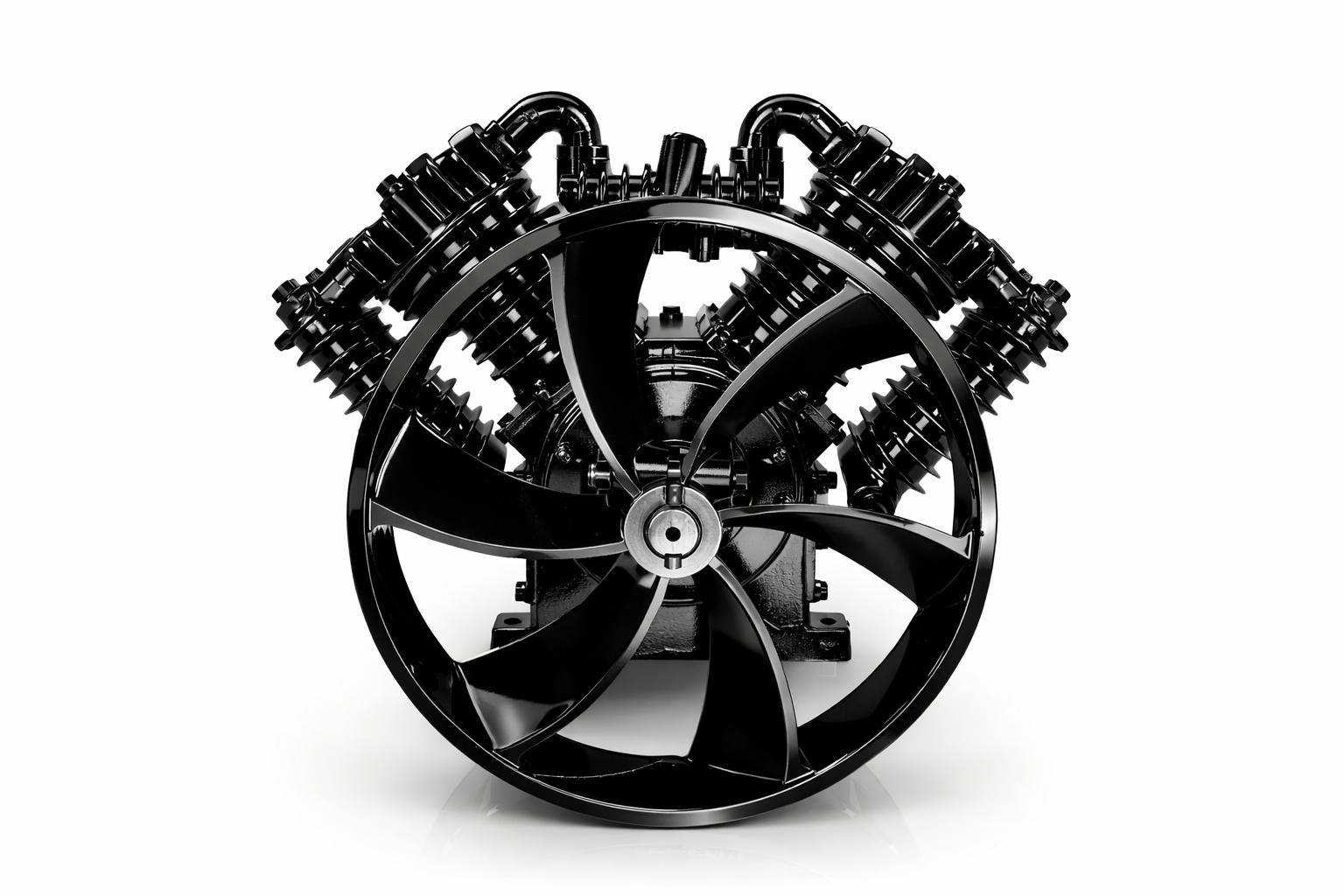

BETA STAR IND6028 / AD2105TC – 10HP Industrial Air Compressor Pump Head

The BETA STAR IND6028 / AD2105TC  is a high-performance, industrial-grade 10HP piston air compressor pump head engineered for continuous-duty applications where high air delivery, pressure stability, and long-term durability are critical.

Manufactured from heavy-duty cast iron and precision-machined to exact tolerances, this pump head is designed to operate reliably under demanding industrial conditions. With a four-cylinder configuration, optimized bore geometry, and low-RPM operation, it delivers powerful airflow while minimizing vibration, heat build-up, and mechanical stress—ensuring extended service life and consistent output.

Performance Overview

• Power Rating: 10 HP

• Maximum Pressure:12.5 Bar / 181 PSI

• Air Delivery:1125 L/min

• Operating Speed:730 RPM (low-speed, high-torque efficiency)

• Cylinders: 4-Cylinder piston configuration

• Cylinder Bore:105 × 2 + 55 × 2 mm

This balanced design provides smooth compression cycles and excellent volumetric efficiency, making it ideal for heavy pneumatic workloads.

Construction & Engineering

• Material: Industrial-grade cast iron for superior strength, heat dissipation, and vibration resistance

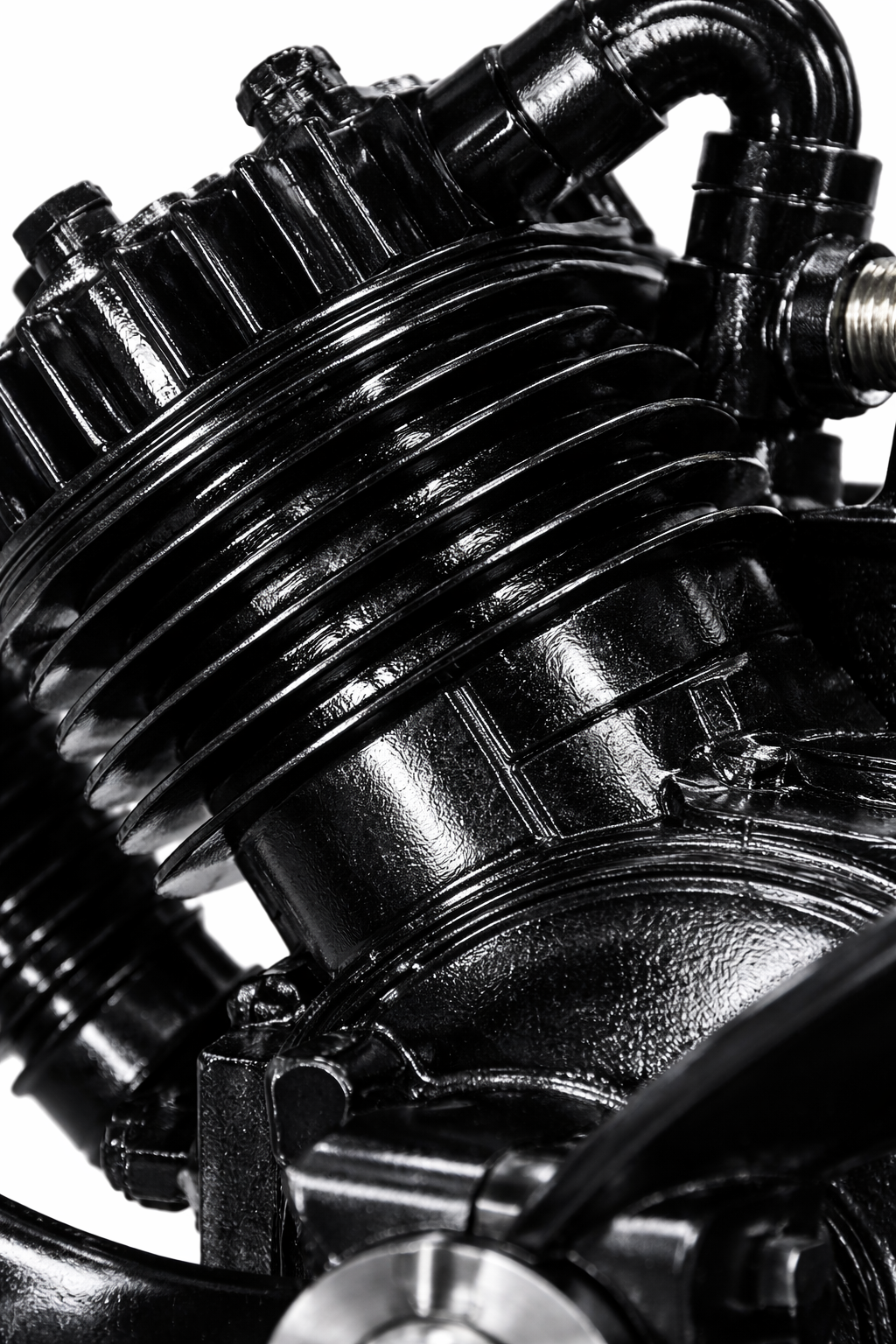

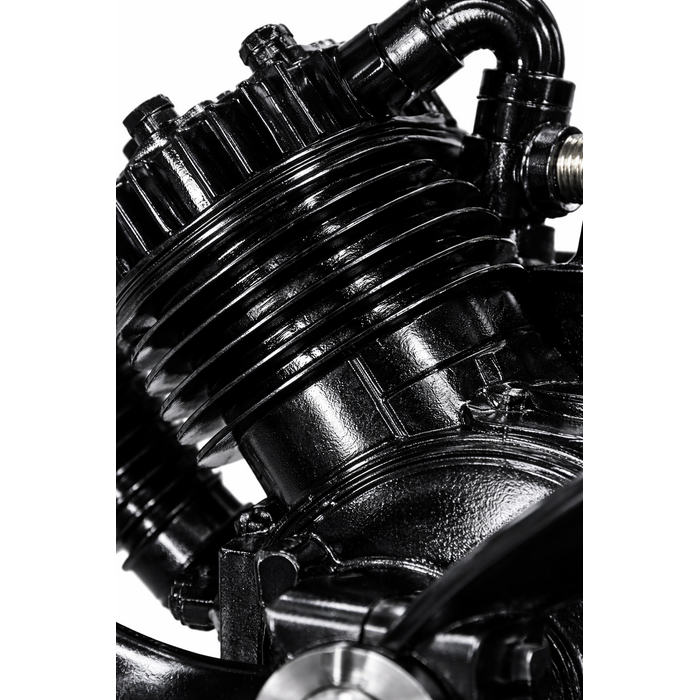

• Cooling Design: Deep cooling fins and optimized airflow for stable operating temperatures

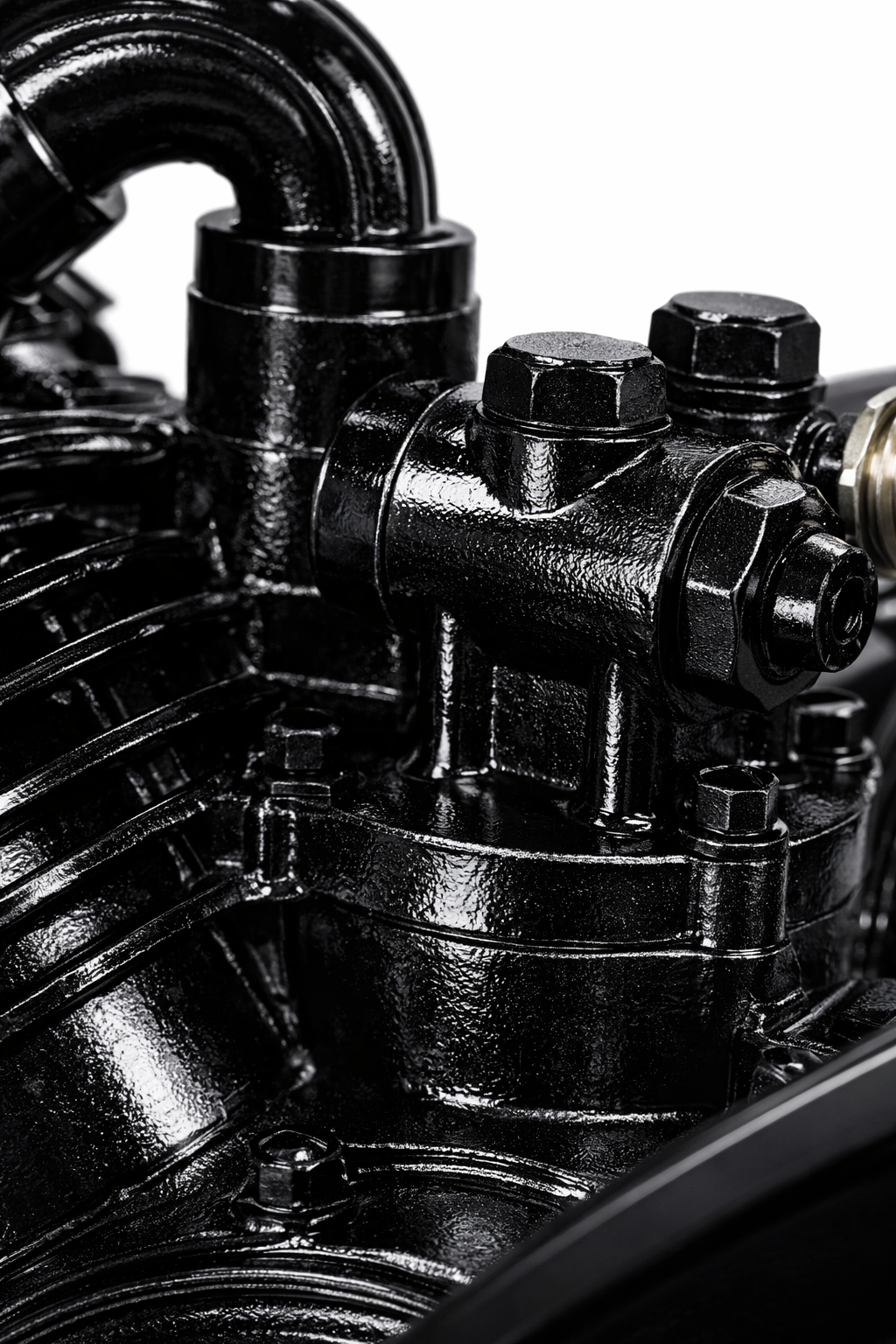

• Precision Valve System: Ensures efficient air intake and discharge with minimal pressure loss

• Robust Internal Components: Designed for long service intervals and reduced maintenance

Physical Specifications

• Weight:94 kg

• Dimensions:690 × 520 × 570 mm

• Certification:CE Certified

Applications

Ideal for:

• Industrial air compressor systems

• Manufacturing and fabrication workshops

• Automotive and heavy-equipment service centers

• Construction, mining, and agricultural operations

• Compressor rebuilds and OEM system integration
