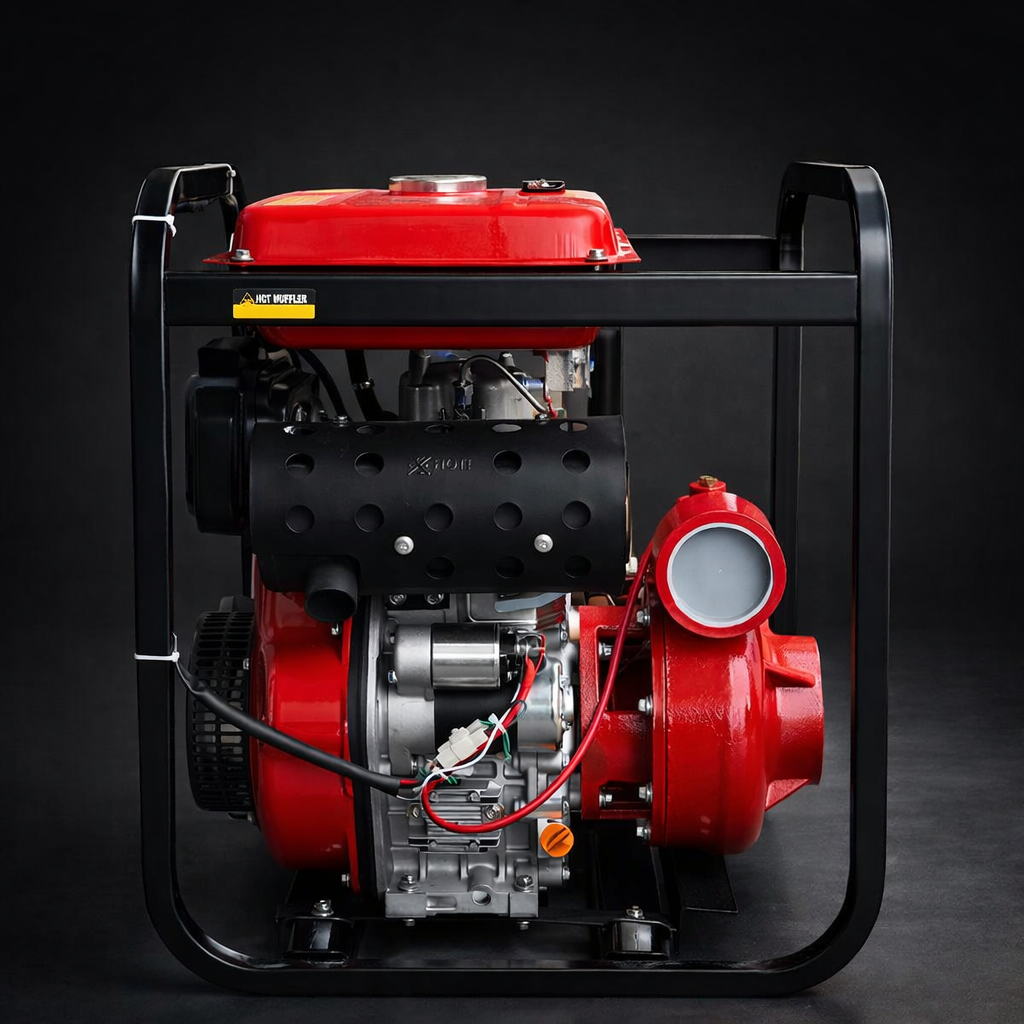

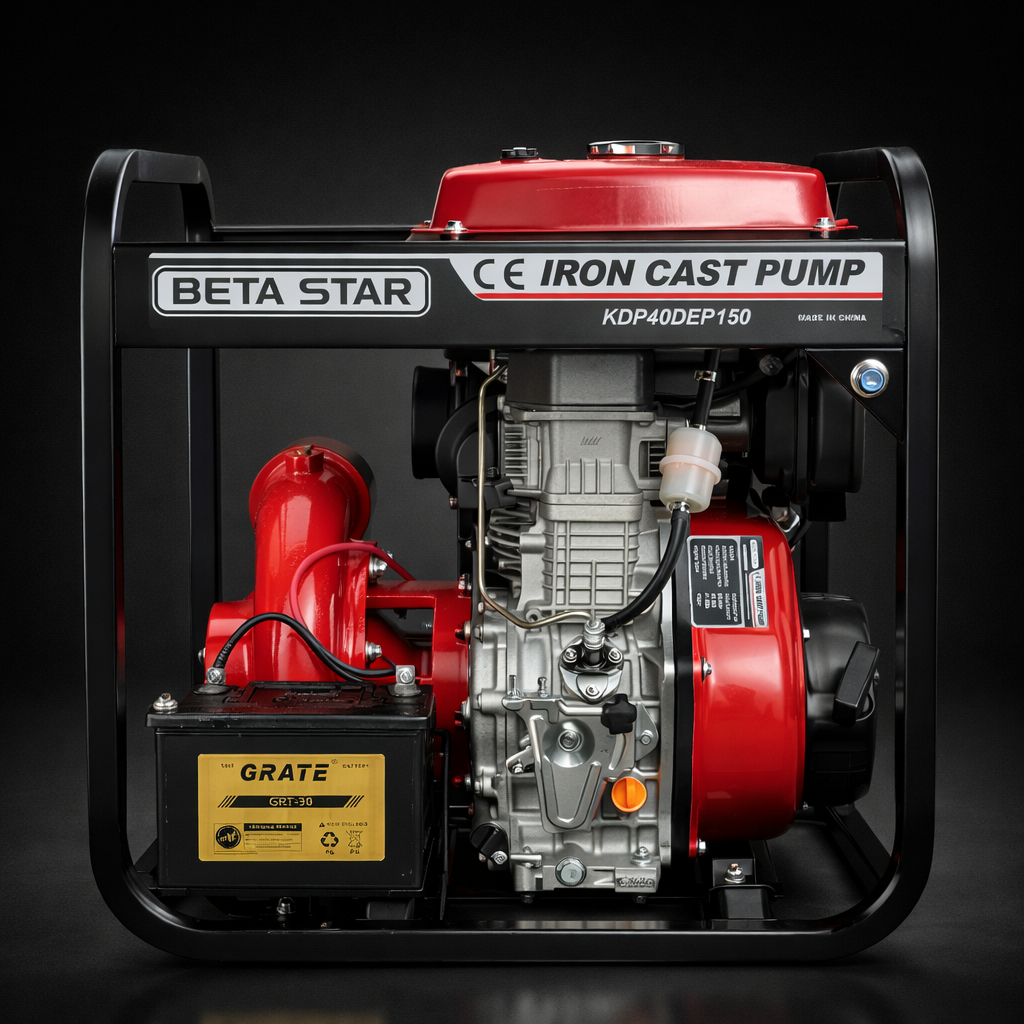

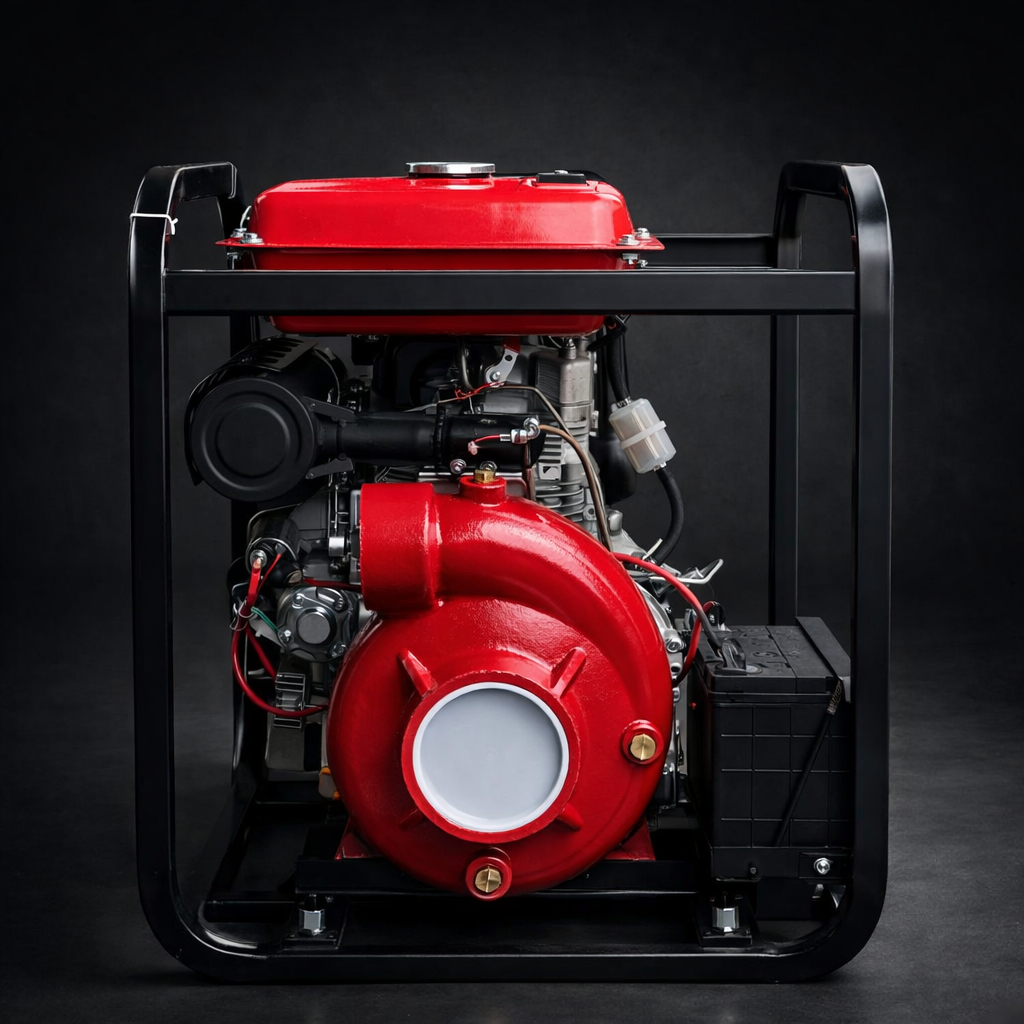

BETA STAR 3" × 4" DIESEL FIRE PUMP

Cast Iron High-Capacity Water Transfer System with 195FA Engine

When large-scale water movement is critical, the BETA STAR 3" × 4" Cast Iron Fire Pump delivers powerful, high-volume performance. Powered by a heavy-duty 195FA diesel engine, this professional-grade pump is engineered for firefighting support, large agricultural irrigation systems, construction dewatering, flood control, and industrial water transfer operations.

Built with an industrial-strength cast iron pump housing and mounted within a reinforced steel protective frame, this system is designed for demanding agricultural, municipal, mining, and industrial environments.

ENGINE PERFORMANCE

Engine Model: 195FA Diesel Engine
Bore × Stroke: 95 × 75 mm
Power Output: 8.5 kW / 9.0 kW
Operating Speed: 3000 / 3600 RPM
Cooling System: Heavy-Duty Air-Cooled
Starting System: Diesel Start (D/S)
Net Weight: 54 kg

Delivers strong torque, stable RPM performance, and consistent pressure output even under heavy flow conditions.

PUMP SPECIFICATIONS

Suction / Discharge Port: 4" × 3" (100mm / 80mm)
Maximum Capacity: 90 m³/h
Maximum Head: 45 metres
Maximum Suction Head: 7 metres
Pump Material: Heavy-Duty Cast Iron
Model: KDP40DEP150

Designed for high-volume transfer and medium-lift water applications.

CONSTRUCTION QUALITY

✔ Industrial cast iron impeller housing
✔ Reinforced steel protective roll cage frame
✔ Heavy-duty anti-vibration mounting system
✔ CE Certified unit
✔ Built for continuous-duty performance

Engineered for farms, construction zones, plantations, flood-prone regions, and emergency water deployment.

APPLICATIONS

Firefighting support systems
Large-scale agricultural irrigation
Construction site water evacuation
Flood drainage operations
Industrial water pumping
Plantation and estate water transfer

This is a serious high-capacity diesel pump built for commercial and industrial use — not a lightweight domestic unit.

TECHNICAL SUMMARY
